2.2.1b Meter Body Identification
XMT900
Panametrics Ultrasonic
Liquid Flowmeter
TAG # : (SEE NOTE 3)
PART # : (FILL IN PER ORDER)
ASSEMBLY DATE : (MM-YYYY)
SERIAL # : (FLOWCELL SERIAL #)
P1/P2 :
L1/L2 :

2.2.2 Transport

Figure 6 below indicates the proper way to cinch the lifting straps to the flowmeter. This is the only approved way to
hoist the flowmeter into position in the pipeline.
PanaFlow HT User's Manual
FLOW DIRECTION
OPER. TEMPERATURE:
[See Note 5]
TM
MAX. OPER. PRESS. :
[See Note 5]
METER SIZE:
FLANGE CLASS:
METER BODY MATERIAL:
DRY WEIGHT:
/ INCHES
DISPENSATION:
/ INCHES
FLOW CELL MFG:
MFG SERIAL NO.:
NOBO IDENT. NO.:

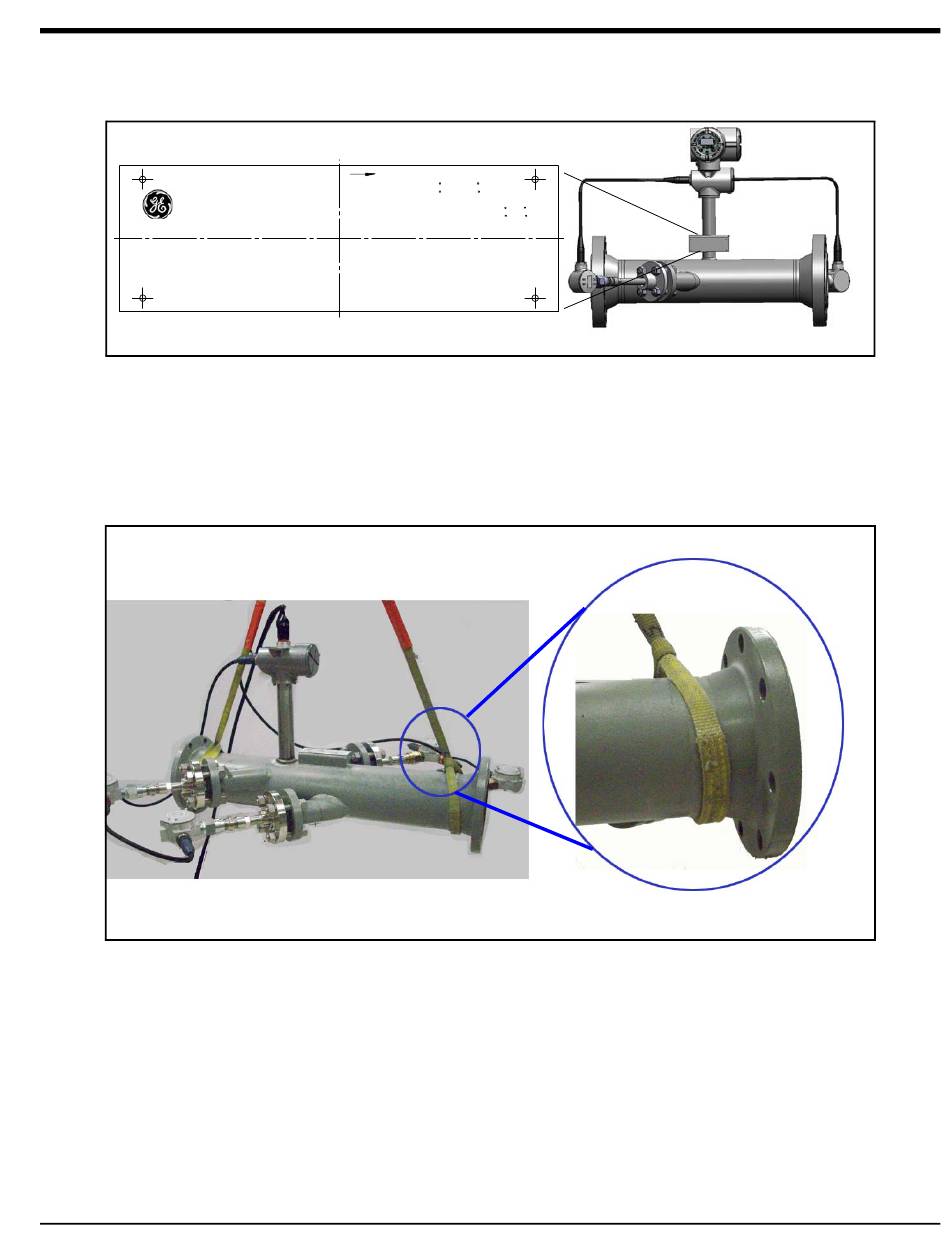

Figure 5: Flowcell Identification (example)
Figure 6: Hoisting PanaFlow HT
F TO F
C TO C
PSIG/BARG @ 100 F/38 C
PSIG/BARG @ F/ C
[See Note4]
[See Flange Rating]
[See Note 6]
[See Table 3]
[See Note 7]
[See Note 8]
Chapter 2. Installation
