Chapter 3. Initial Setup and Programming

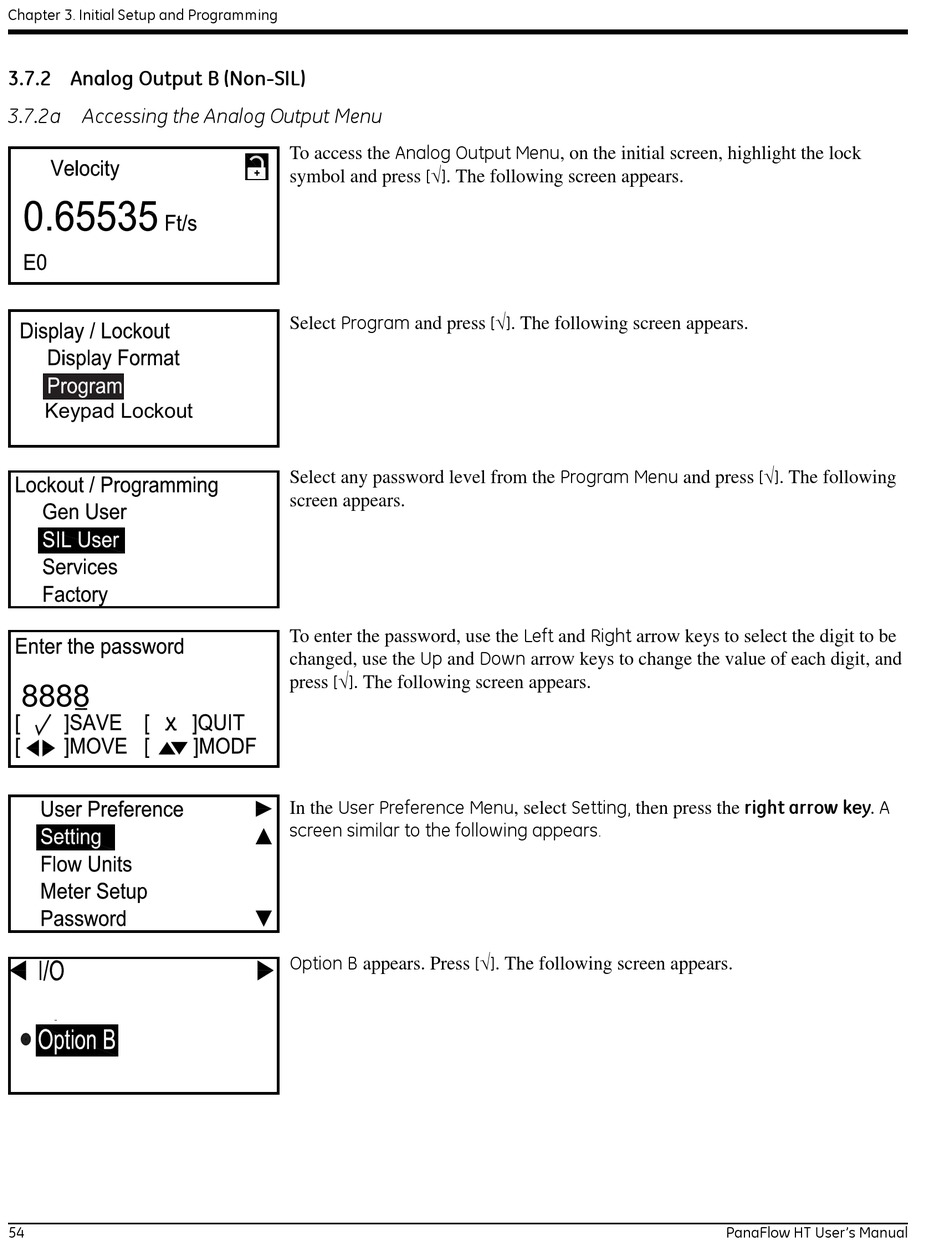

3.7.2 Analog Output B (Non-SIL)

3.7.2a Accessing the Analog Output Menu
Keypad Lockout
8888
54
To access the Analog Output Menu, on the initial screen, highlight the lock

[ ]
symbol and press . The following screen appears.
Select Program and press
Select any password level from the Program Menu and press
screen appears.
To enter the password, use the Left and Right arrow keys to select the digit to be
changed, use the Up and Down arrow keys to change the value of each digit, and

[ ]
press . The following screen appears.
In the User Preference Menu, select Setting, then press the right arrow key. A
screen similar to the following appears.
Option B appears. Press

[ ]
. The following screen appears.

[ ]
. The following screen appears.

[ ]
. The following
