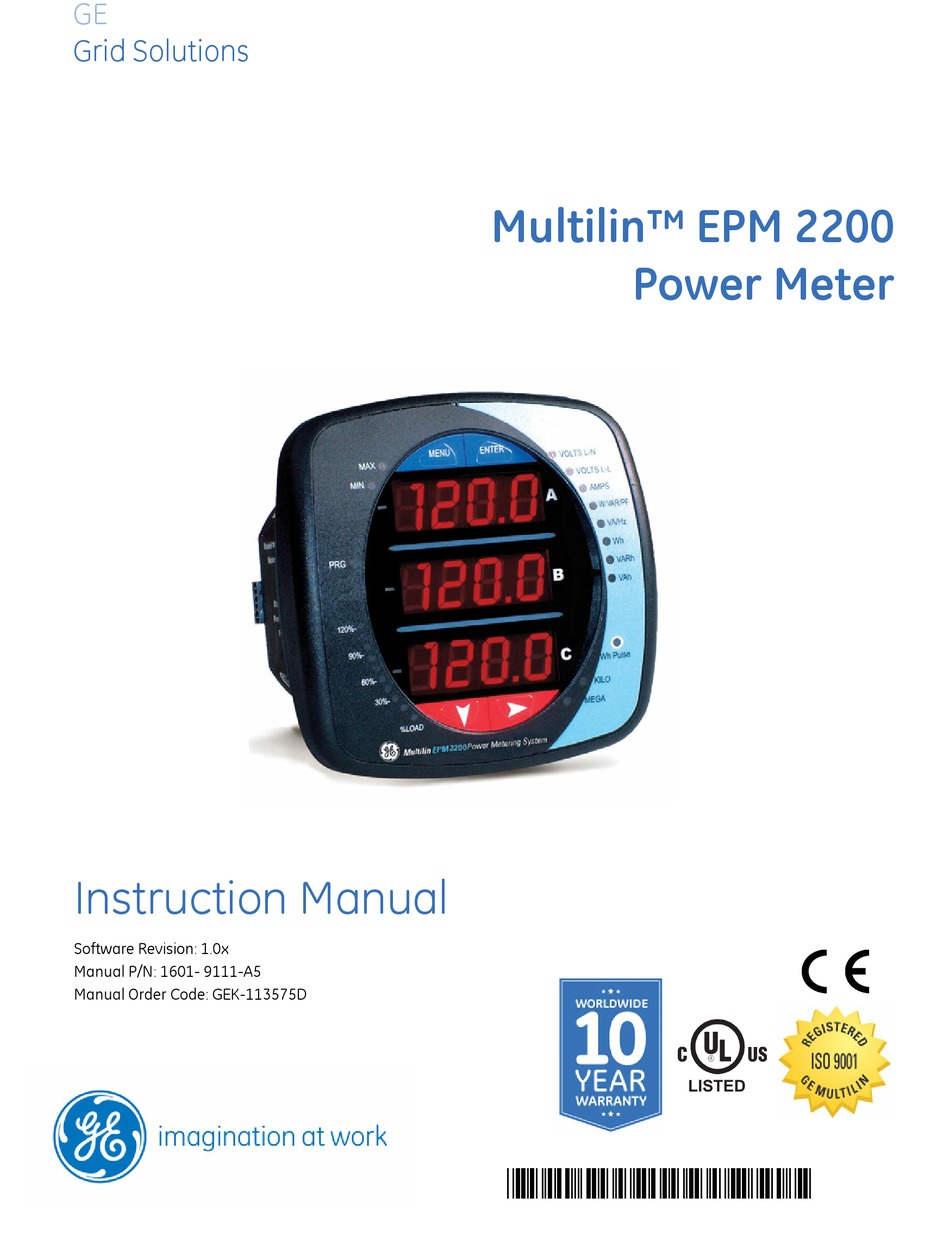

GE
Grid Solutions
Instruction Manual
Software Revision: 1.0x
Manual P/N: 1601- 9111-A5
Manual Order Code: GEK-113575D
Multilin™ EPM 2200
Power Meter
*1601-911-A5*
