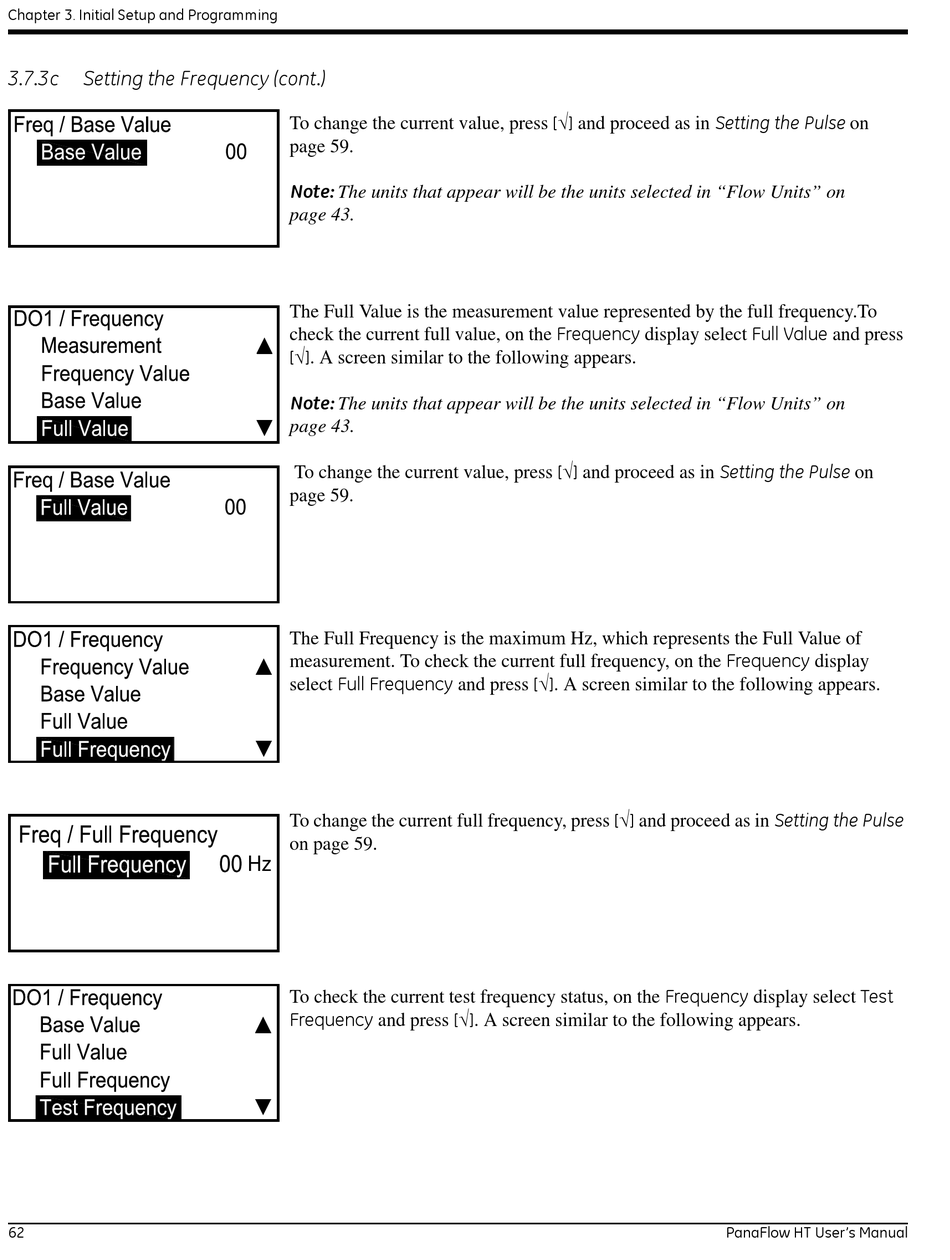

Chapter 3. Initial Setup and Programming
3.7.3c
Setting the Frequency (cont.)
62
To change the current value, press
page 59.
Note: The units that appear will be the units selected in "Flow Units" on
page 43.
The Full Value is the measurement value represented by the full frequency.To
check the current full value, on the Frequency display select Full Value and press
[
]
. A screen similar to the following appears.
Note: The units that appear will be the units selected in "Flow Units" on
page 43.
To change the current value, press
page 59.
The Full Frequency is the maximum Hz, which represents the Full Value of
measurement. To check the current full frequency, on the Frequency display
select Full Frequency and press
To change the current full frequency, press
on page 59.
Hz
To check the current test frequency status, on the Frequency display select Test
Frequency and press
and proceed as in Setting the Pulse on
[
]
and proceed as in Setting the Pulse on
[
]
[
]
. A screen similar to the following appears.
[
]
[
]
. A screen similar to the following appears.
and proceed as in Setting the Pulse
PanaFlow HT User's Manual
