Chapter 2. Installation
2.5.3a
Wiring as a Totalizer (Pulse) Output
Wire this option in accordance with the connections shown on the label in the rear cover (see Figure 10 on page 11).

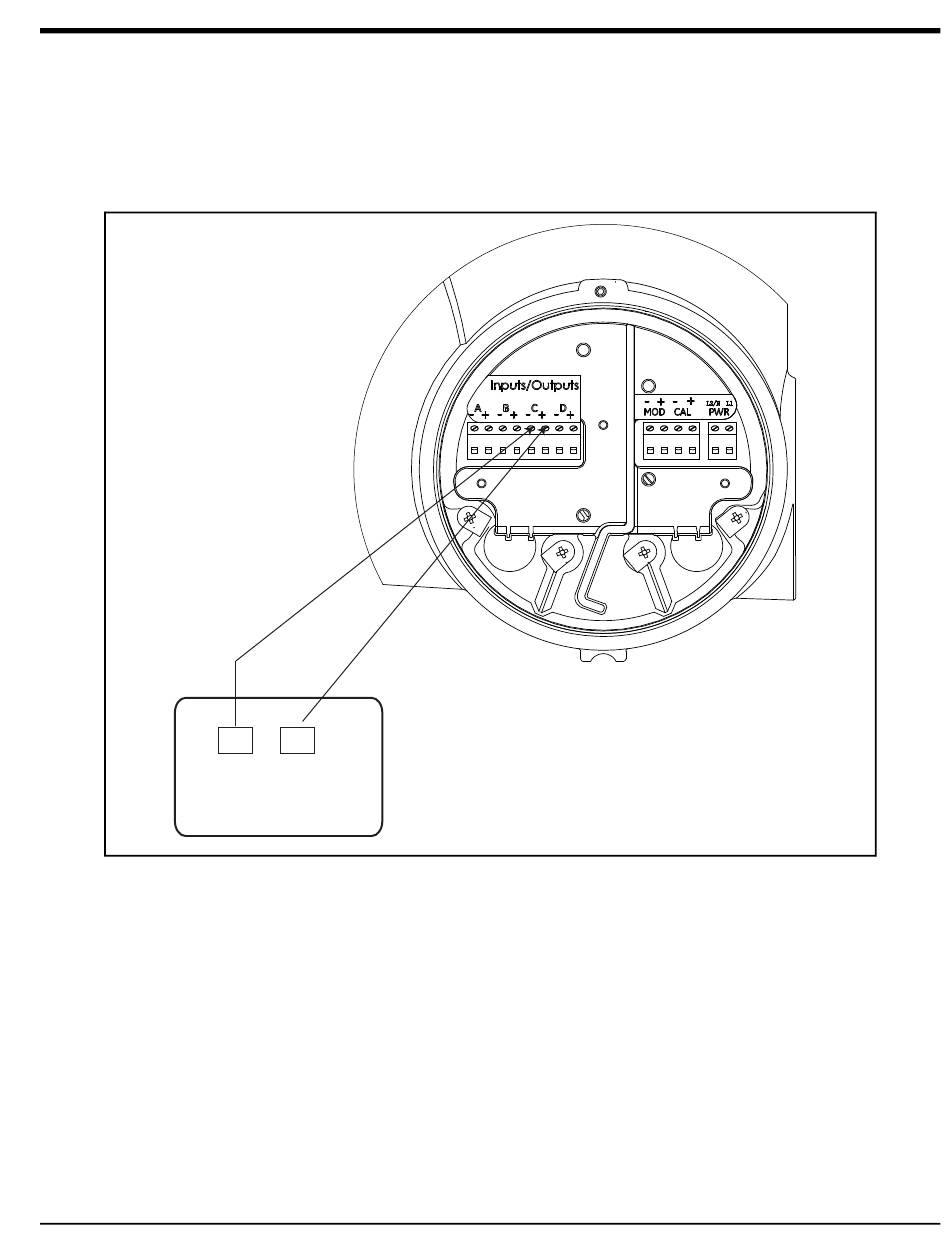

Figure 11 shows a sample wiring diagram of a totalizer output circuit. Refer to Appendix A, Specifications for the load
and voltage requirements.
Volts -
Common
Load
Pulse Counter
Figure 11: Wiring a Totalizer (Pulse) Output
PanaFlow HT User's Manual
