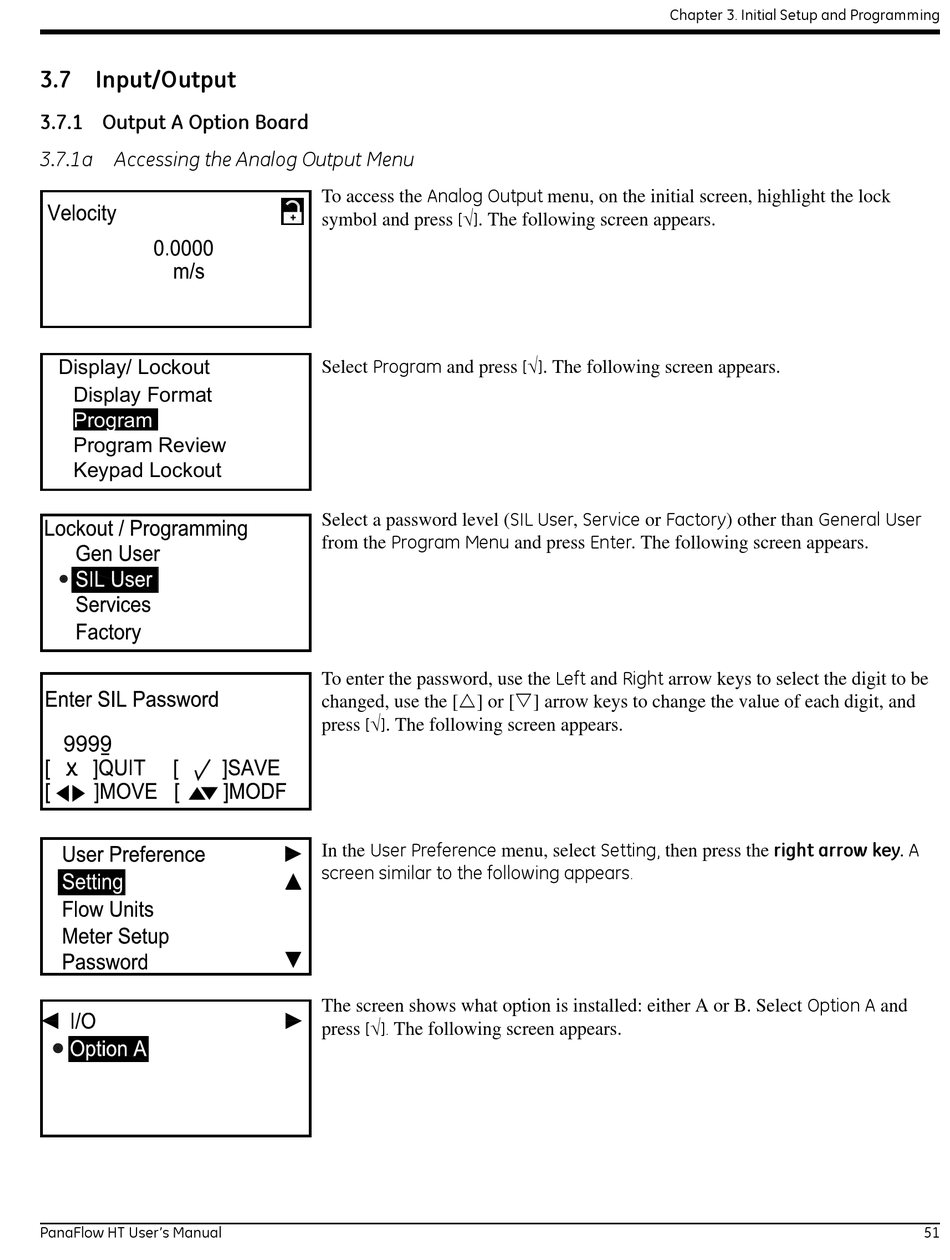

3.7 Input/Output

3.7.1 Output A Option Board

3.7.1a Accessing the Analog Output Menu
Display/ Lockout
Display Format
Program
Program Review
Keypad Lockout
9999
PanaFlow HT User's Manual
To access the Analog Output menu, on the initial screen, highlight the lock

[ ]
symbol and press . The following screen appears.
Select Program and press
Select a password level (SIL User, Service or Factory) other than General User
from the Program Menu and press Enter. The following screen appears.
To enter the password, use the Left and Right arrow keys to select the digit to be
changed, use the [] or [] arrow keys to change the value of each digit, and

[ ]
press . The following screen appears.
In the User Preference menu, select Setting, then press the right arrow key. A
screen similar to the following appears.
The screen shows what option is installed: either A or B. Select Option A and

[ ].
press The following screen appears.
Chapter 3. Initial Setup and Programming

[ ]
. The following screen appears.
