General Procedures and Functional Checks

4-3-4 Basic Controls

4-3-5 Control Panel

1. Power On/Off
2. Up/Down keys
3. Menu keys
4. TGC
5. User Configurable keys
6. Patient key
7. Probe/Preset key
8. Active Images key
9. Worksheet key
10. Report key
11. End Exam key
12. Alphanumeric Keyboard
4-22

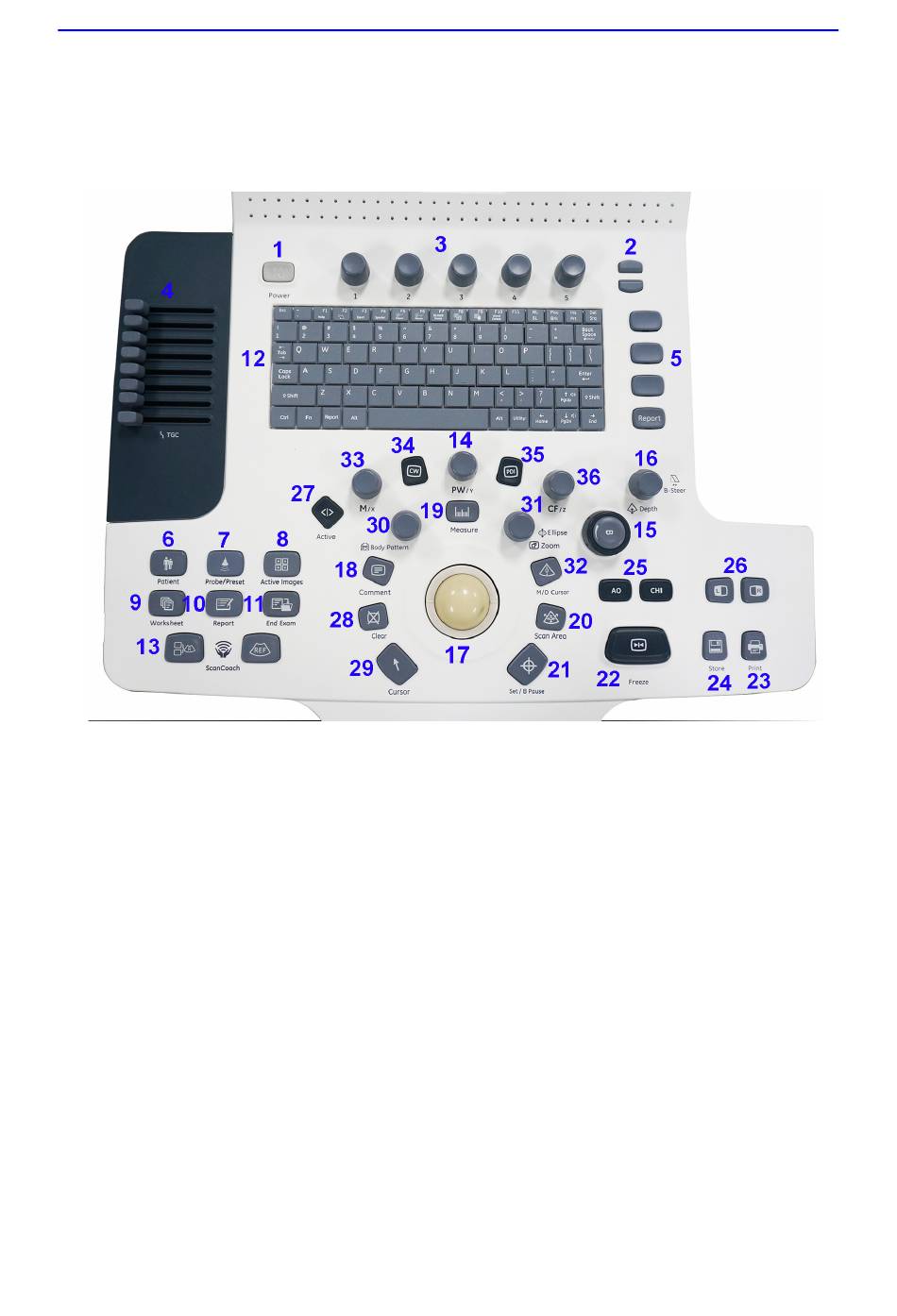

Figure 4-17. Control Panel Map
13. Scan Coach
14. PW Mode/PW Gain/CW
Gain
15. B Mode/B Mode Gain
16. Depth/B-Steer
17. Trackball
18. Comment key
19. Measure key
20. Scan Area key
21. Set/B Pause key
22. Freeze key
23. Print key
LOGIQ V3/V5/V5 Expert – Basic Service Manual
24. Store key
25. AO/CHI key
26. Left/Right key
27. Active key
28. Clear key
29. Cursor key
30. Body Pattern key
31. Ellipse/Zoom key
32. M/D Cursor key
33. M Mode/M Mode Gain
34. CW (Option)
35. PDI
36. CF Mode/CF Gain/PDI Gain
