Communication Test

This function allows you to check:
- The efficiency level of communications between SMART MATRIX and SM-DIN Boards and between SM-
DIN Boards and Sensors.
- The correct operation of Sensors.
Communication Efficiency

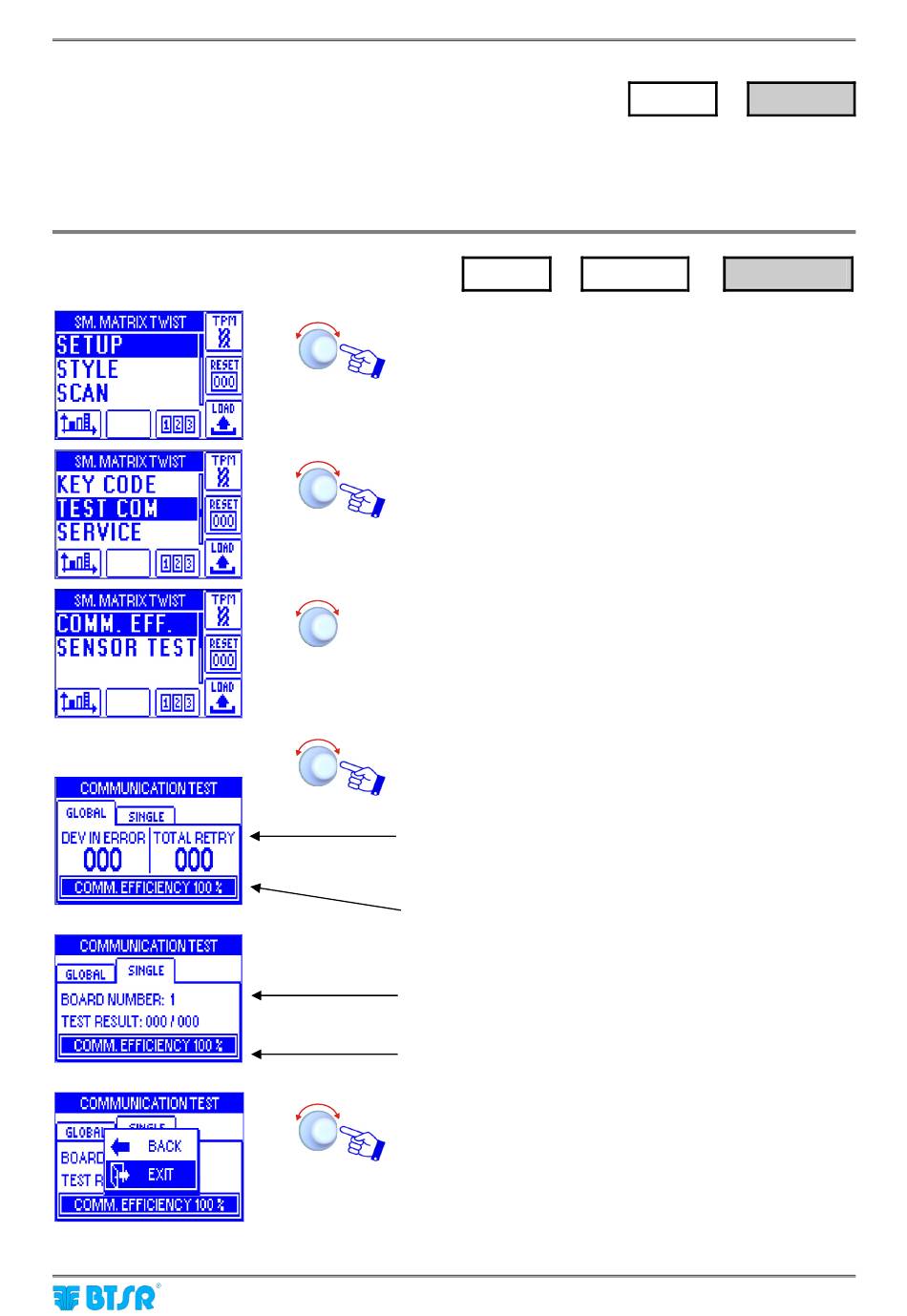

SETUP
Enter the SETUP
Select TEST COM.
Select COMM. EFF.
communications.
Select GLOBAL (global communication efficiency) or
SINGLE (communication efficiency with the individual
Board).
Number of sensors on which communication errors
occurred (DEV IN ERROR)
transmissions repeated as a result of detected errors
(TOTAL RETRY). A maximum of 5 transmissions are
repeated for each board.
Global efficiency index.
Like for GLOBAL option, but referred to the selected Board
(e.g: BOARD NUMBER:1)
Efficiency index of Board 1.
BACK to return to the previous screen without saving,
to return to menu.
SMART MATRIX TWIST
Communication Test
SETUP
→ TEST COM →
menu.
to check the efficiency level of
and total number of
→ TEST COM
COMM. EFF.
EXIT
