SCAN STYLES Function

This function allows you to check the currently used styles and on which sensors they are loaded.

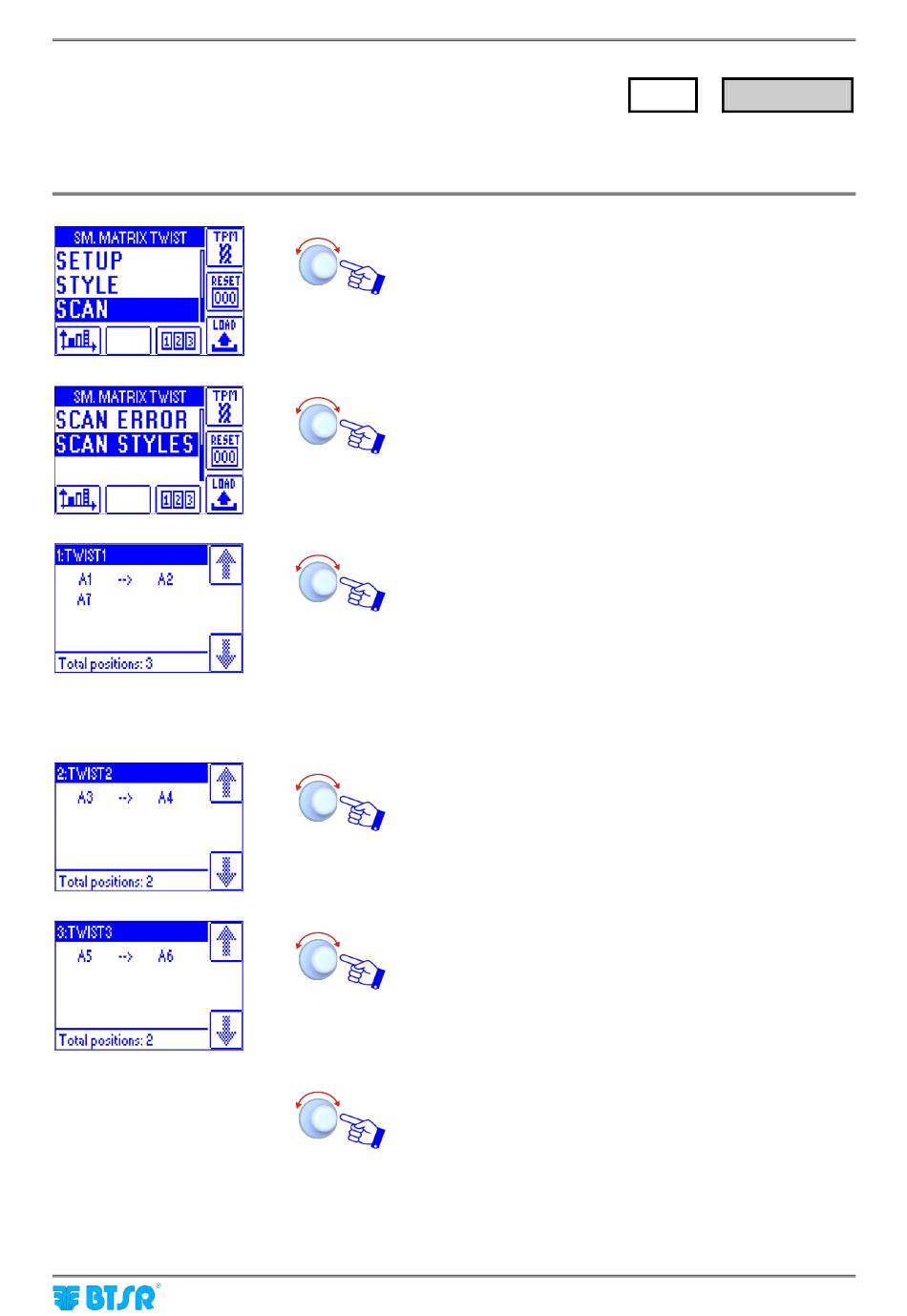

Enter the SCAN menu.
Select the SCAN STYLES
Turn the selector to display the styles in use.
In this example the TWIST1 style is loaded on A1, A2 and
A7 sensors.
The number before the style name indicates the style
position within the database. In this case the TWIST1 style
occupies the position No.1 of the database.
The Total positions
positions on which the selected style is loaded.
In this case Total positions:3.
In this second example the TWIST2 style is loaded on A3
and A4 sensors. Total positions:2.
In this third example the TWIST3 style is loaded on A5 and
A6 sensors. Total positions:2.
If more sensor intervals are present you can scroll the
position list by means of the arrow keys.
To go back to the menu.
SMART MATRIX TWIST
SCAN STYLES Function
SCAN →
menu item.
parameter indicates the total number of
SCAN STYLES
