Immediate Function Activation Through The Smart Matrix Buttons - btsr SMART MATRIX TWIST Operating Manual

Immediate Function Activation through the SMART MATRIX
Buttons
The 6 blue buttons (B1 ~ B6) allow you to directly activate some system functions without passing through
the menu items. Such functions are indicated by the icons associated with the buttons, as shown on the
following figure.
The detailed explanation of the various function will be provided on next paragraphs.
The following examples are only provided to summarize the Button → Function association.
Within some configuration/parameter setting functions, the B1 ~ B6 buttons may also perform a "shortcut"
function, which will be explained each time.

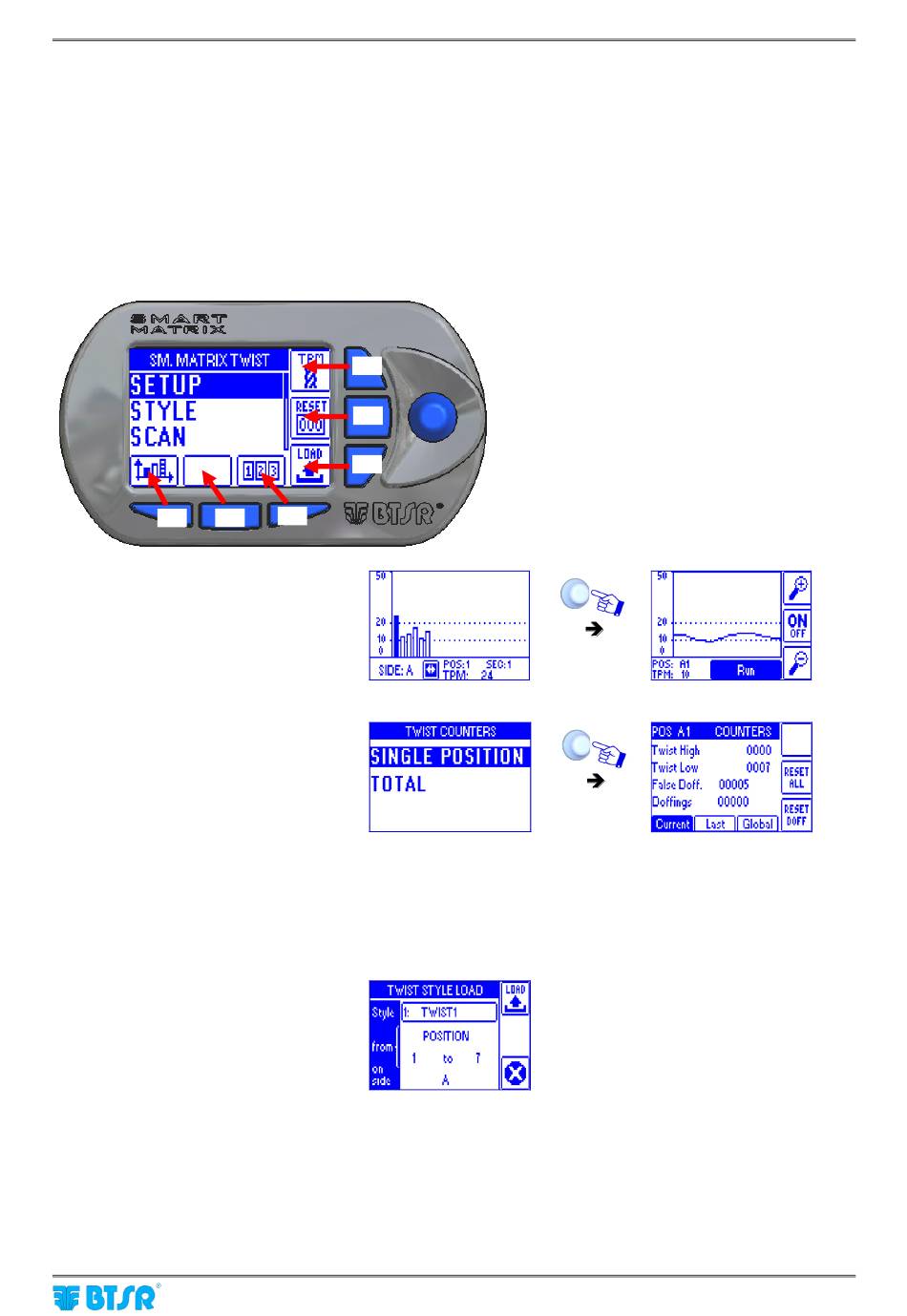

B1 B2
B1 = Sensor Histogram
B2 = Not used
B3 = Error Counters
B4 = Measure System selection
(TPI = Twist Per Inch or
TPM = Twist Per Meter)
B5 = Alarm Reset
(no visualization provided)
B6 = Style Loading
B4
B5
B6
B3
SMART MATRIX TWIST
SMART MATRIX TWIST Operation
Immediate function activation buttons.
- 2-7 -
