Example of Plant Layout

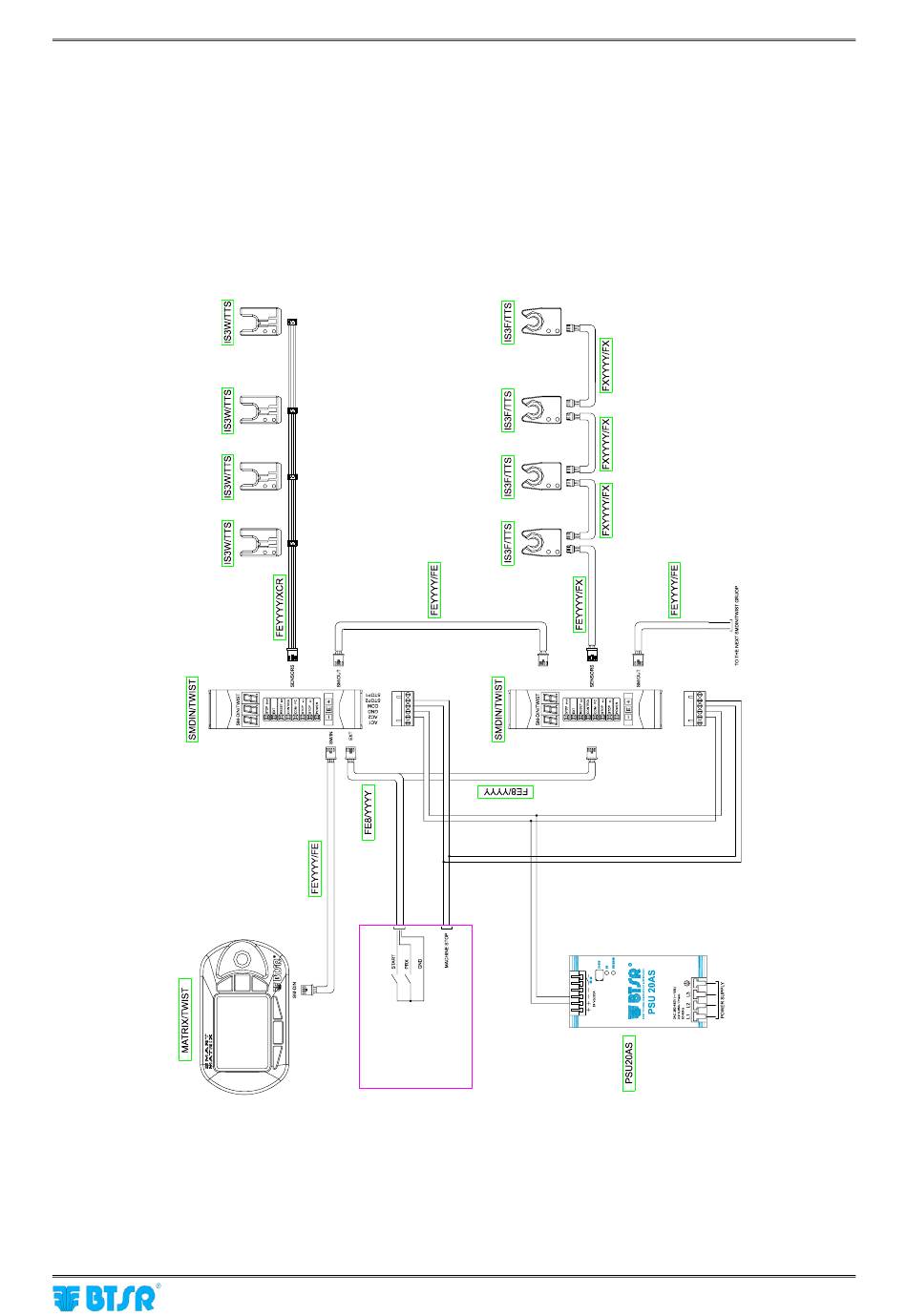

The following figure shows a configuration example with:
•
1 SMART MATRIX TWIST terminal,
•
2 SM-DIN TWIST Board,
•
4 IS3W-TTS sensors for Board 1 and 4 IS3F-TTS sensors for Board 2.
•
Power supply unit PSU20AS
SMART MATRIX TWIST
Example of Plant Layout
- 1-14 -
