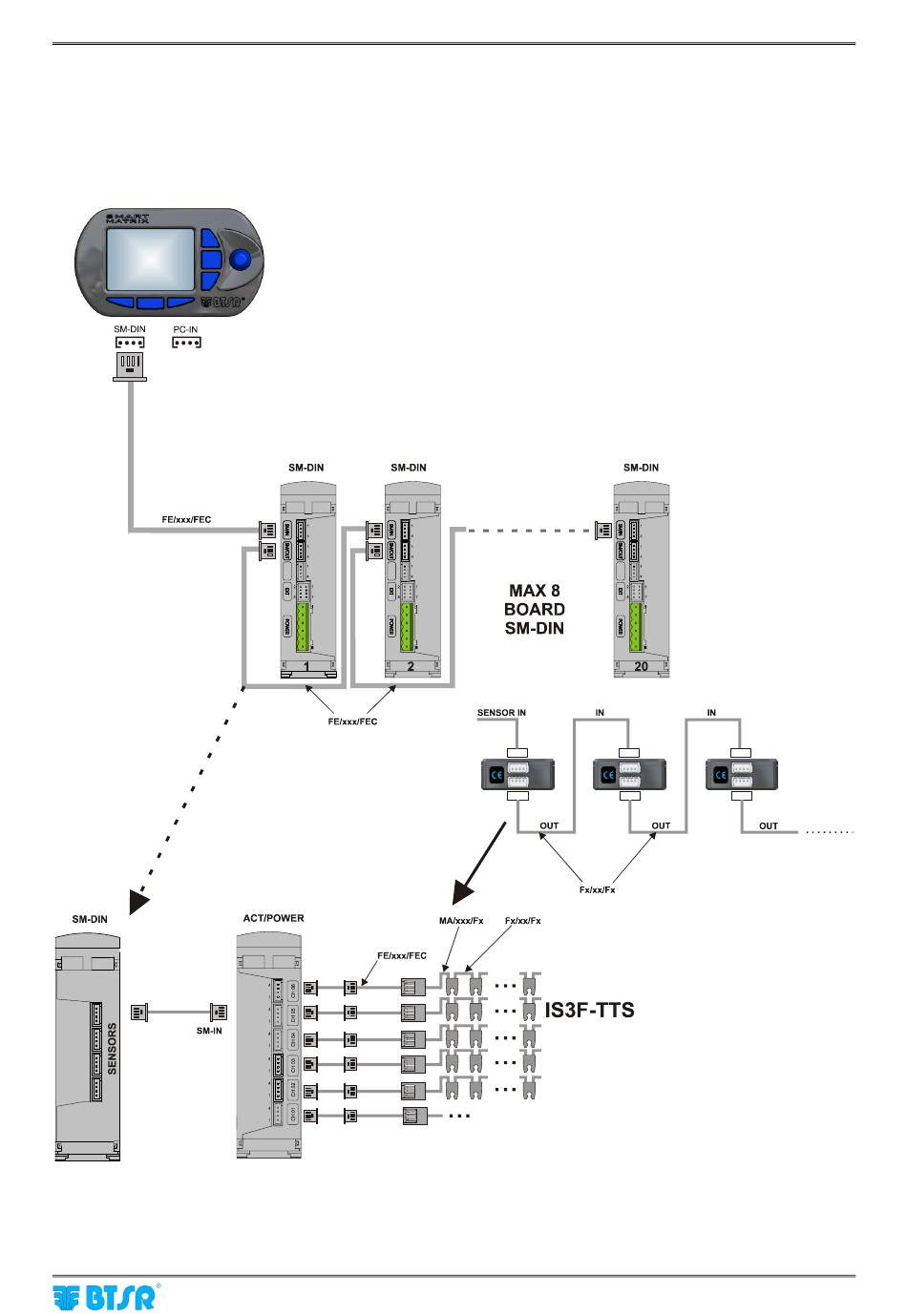

The following diagram shows the connection of IS3F-TTS Sensors to the ACT/POWER module, the
connection between ACT/POWER module and SM-DIN Board and between SM-DIN Board and SMART
MATRIX terminal.
SMART MATRIX
Max 100 sensors IS3F-TTS
6 lines - max 20 sensors per line
SMART MATRIX TWIST
↔
SM-DIN ↔ IS3F-TTS Connection
- 1-3 -
