SMART MATRIX ↔ SM-DIN ↔ IS3F-TTS Connection
+
The SMART MATRIX TWIST system can manage a textile machine consisting of 1 or 2 sides and a
maximum of 128 sensors per side.
The sensor connection can be carried out directly on SM-DIN Boards (max 64 sensors per Board), or by
means of an optional ACT/POWER module (max 100 sensors per module).

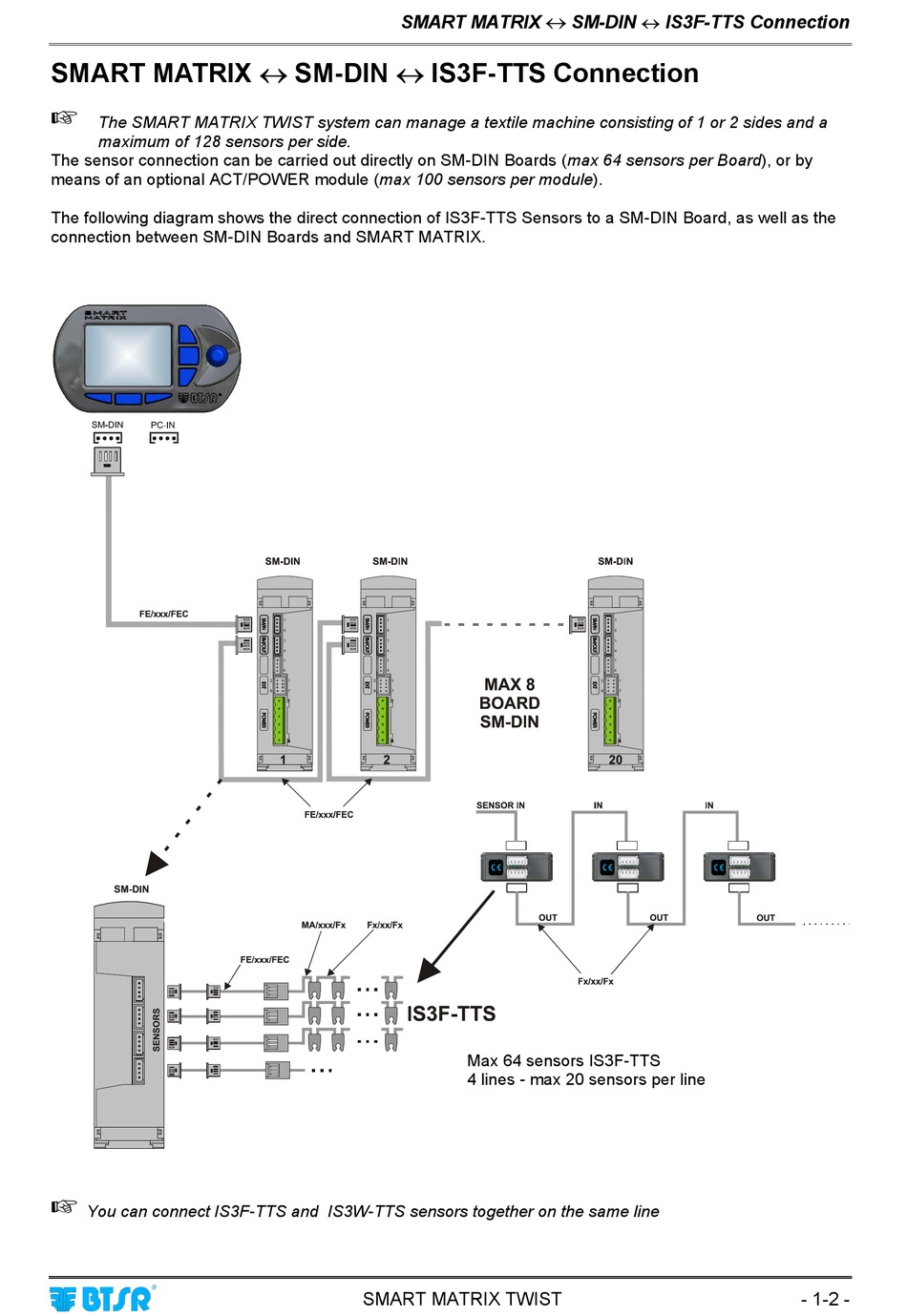

The following diagram shows the direct connection of IS3F-TTS Sensors to a SM-DIN Board, as well as the
connection between SM-DIN Boards and SMART MATRIX.
+
You can connect IS3F-TTS and IS3W-TTS sensors together on the same line
SMART MATRIX
Max 64 sensors IS3F-TTS
4 lines - max 20 sensors per line
SMART MATRIX TWIST
↔
SM-DIN ↔ IS3F-TTS Connection
