Communication Test - btsr SMART MATRIX WINDINGFEEDER Operating Manual

Communication Test

This function allows you to check:
- The efficiency level of communications between SMART MATRIX and all the WINDINGFEEDER devices
connected.
- The correct communication with the individual devices.
Communication Efficiency

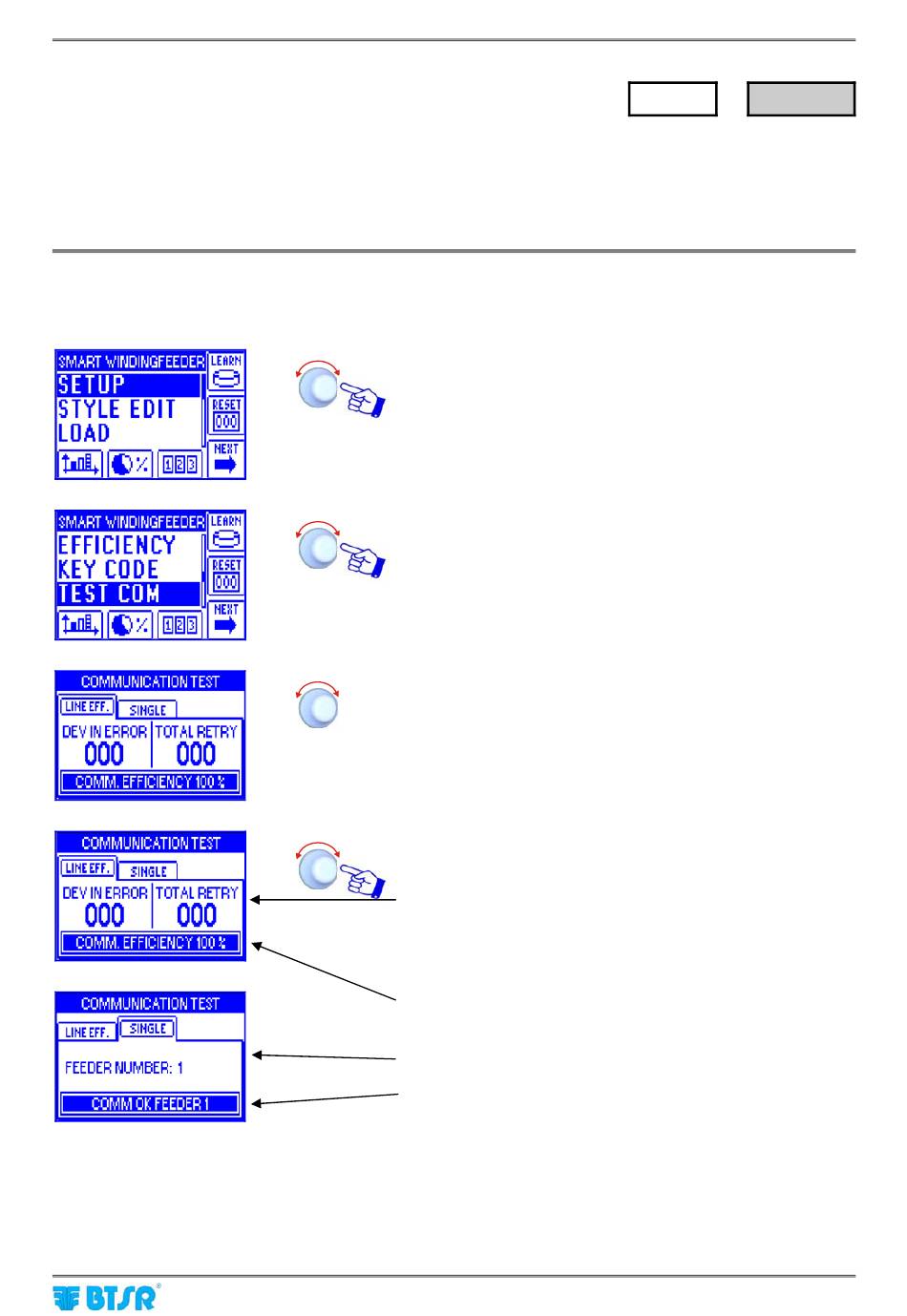

Enter the SETUP
Select TEST
Select LINE EFF
SINGLE (communication efficiency with the individual
WINDINGFEEDER devices).
Number of devices on which communication errors
occurred (DEV IN ERROR)
transmission repeated as result of detected errors
RETRY). A maximum of 5 transmission retries are
repeated for each device.
Global efficiency index.
Number of the selected device (1)
Status of communication between SMART MATRIX and
selected WINDINGFEEDER device (either
COMM ERROR).
SMART MATRIX WINDINGFEEDER
Communication Test
SETUP
menu.
COM.
(global communication efficiency) or
and total number of
→ TEST COM
(TOTAL
COMM OK or
