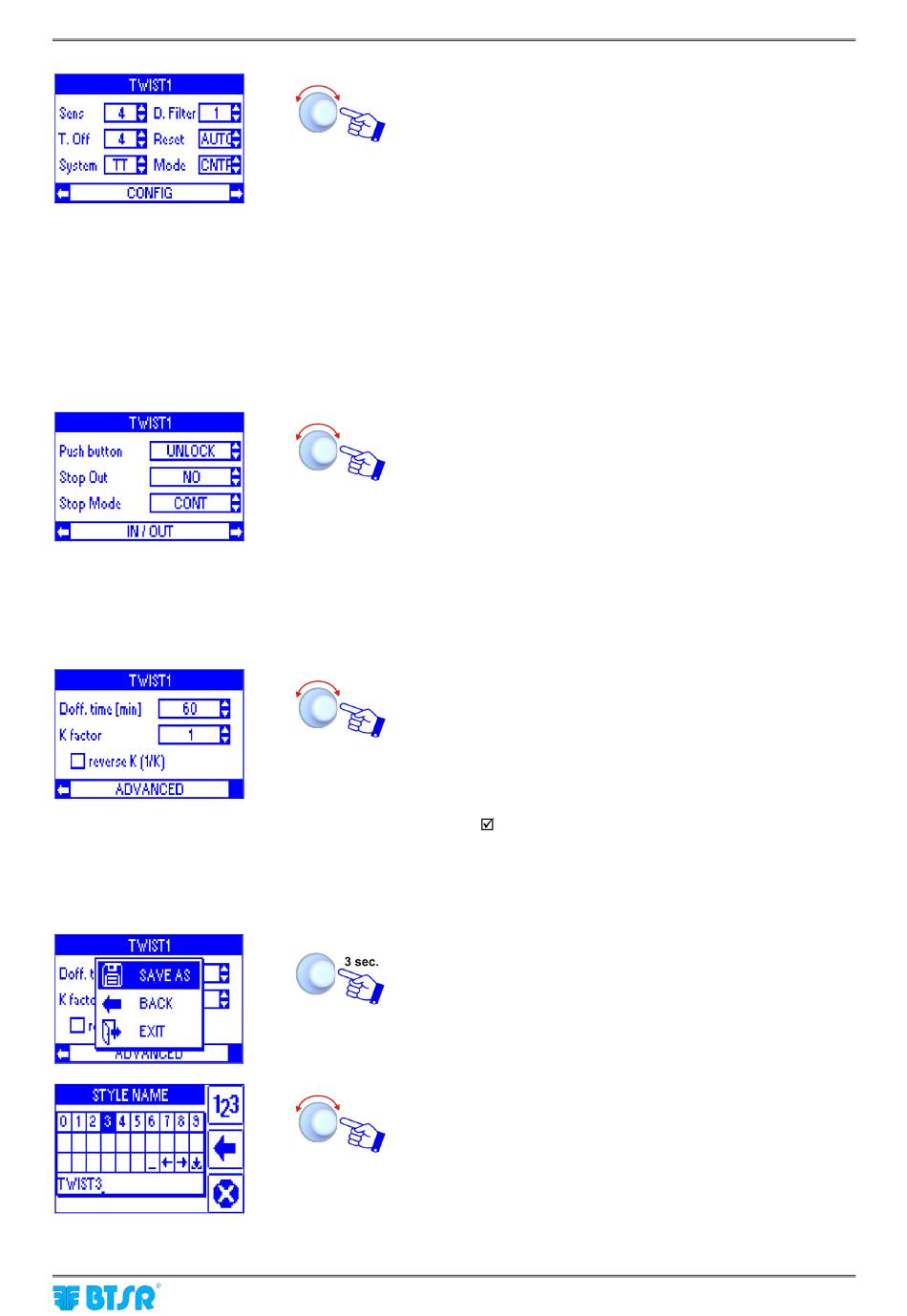

Click to highlight CONFIG.
Select the
Sens
parameter and set the sensor sensitivity
level [1...8].
Select the
T.Off
parameter and set the time in which the
yarn is outside the sensor. (the parameter is effective when
the System parameter is set to TB) [1...8].
Select the
System
TB
(Balloon) mode.
Select the
D.filter
in order to reduce the yarn hairiness influence [1...8].
Select the
Reset
parameter and set
Select the
Mode
parameter and set the sensor operating
mode
(CONTROL
Select again
CONFIG
Click to highlight IN/OUT.
Select the
Push button
button operating mode: [UNLOCK] or [LOCK].
Select the
Stop Out
characteristic: [NO] = Normally Open contact or [NC] =
Normally Closed contact.
Select the
Stop Mode
timing: [CONT] = continuous signal,
seconds pulse signal or
signal.
Select again
IN/OUT
Click to highlight ADVANCED.
Select the
Doff.time[min]
working time requested to consider good a package free of
defects [1...2000].
Select the
K factor
factor [1...5].
Selecting
Reverse K (1/K)
1/K.
At the end select again ADVANCED.
At this point the style parameter programming is
completed.
To activate the saving function
SAVE
to save the style,
BACK
to return to the previous screen without saving,
EXIT
to return to menu
Enter the name you want to assign to the new style (e.g.
TWIST3), then hold the selector pressed for 3 seconds.
SMART MATRIX TWIST
Style Parameters Programming
parameter and set
TT
(Twist) mode or
parameter and set the digital filter value
MAN.
or MONITOR).
and turn the selector.
parameter and set the Touch Light
parameter and set the STOP output
parameter and set the STOP output
[PULSE
[PULSE
10S] = 10 seconds pulse
and turn the selector.
parameter and set the minimum
parameter and set the twist division
the twists will be divided by
STYLE
without saving.
or
AUTO.
2S] = 2
- 2-30 -
