btsr SMART MATRIX TWIST Operating Manual page 51

How to Read the Parameters
Programmed on SM-DIN Boards
SETUP

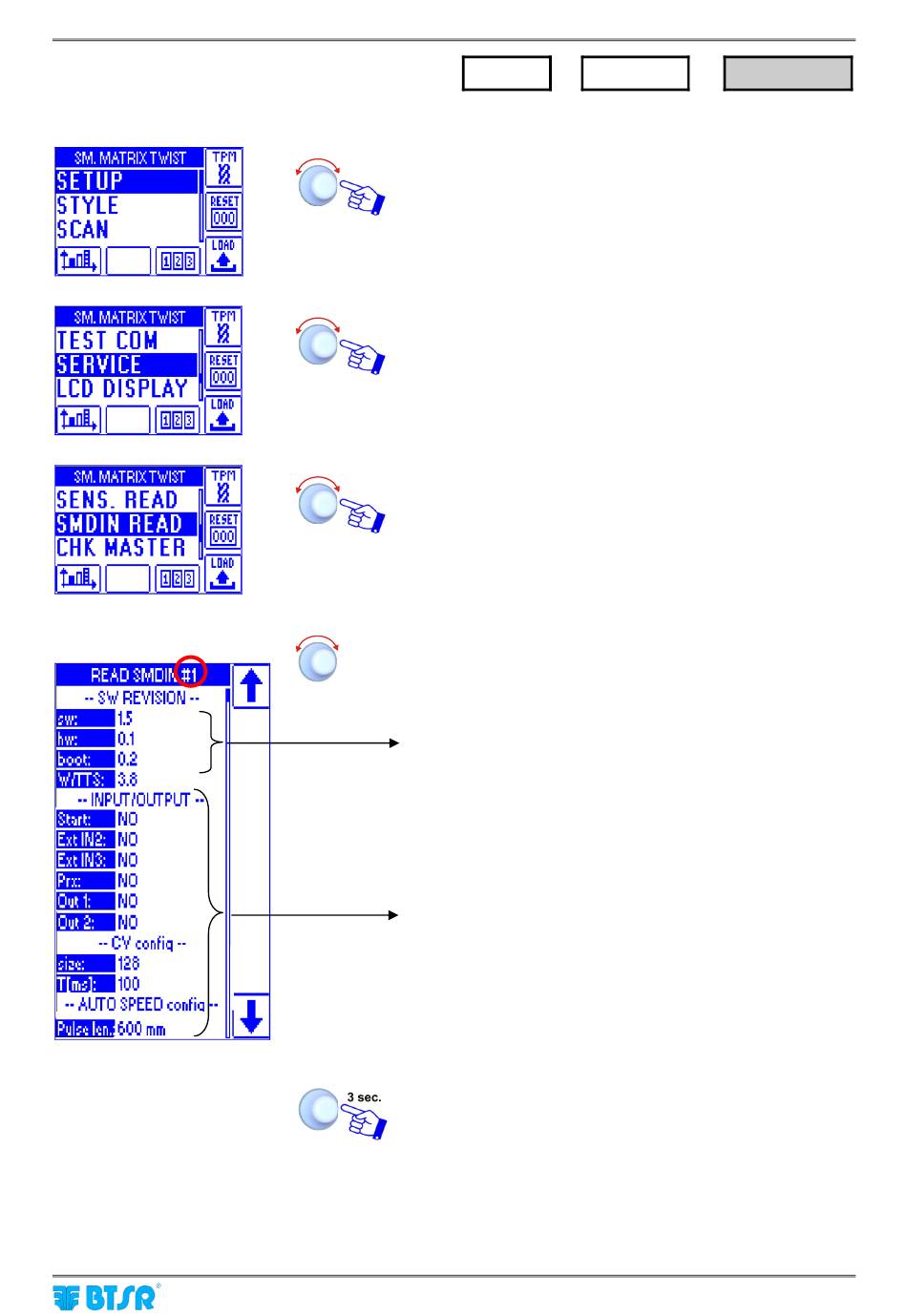

Enter the SETUP
Select SERVICE.
Select SMDIN READ.
Turn the selector to choose the desired SM-DIN Board
(indicated on the header) (in the example #1).
SM-DIN hw/sw revision levels and IS3.. firmware revision.
The IS3.. firmware revision is not that actually read from
the sensor, but rather that stored on the SM-DIN Board
memory (i.e. the version that would be loaded to the
sensors with the SENS UPG
Paramters configured on Board # (see
→
Boards function).
To return to SERVICE
SMART MATRIX TWIST
Service Functions
→ SERVICE →
menu.
function).
Setup
menu.
SMDIN READ
→
I/O Config
- 2-25 -
