Communication Test

This function allows you to check:
- The efficiency level of communications between SMART MATRIX and SM-DIN Boards and between SM-
DIN Boards and Sensors.
- The correct operation of Sensors.

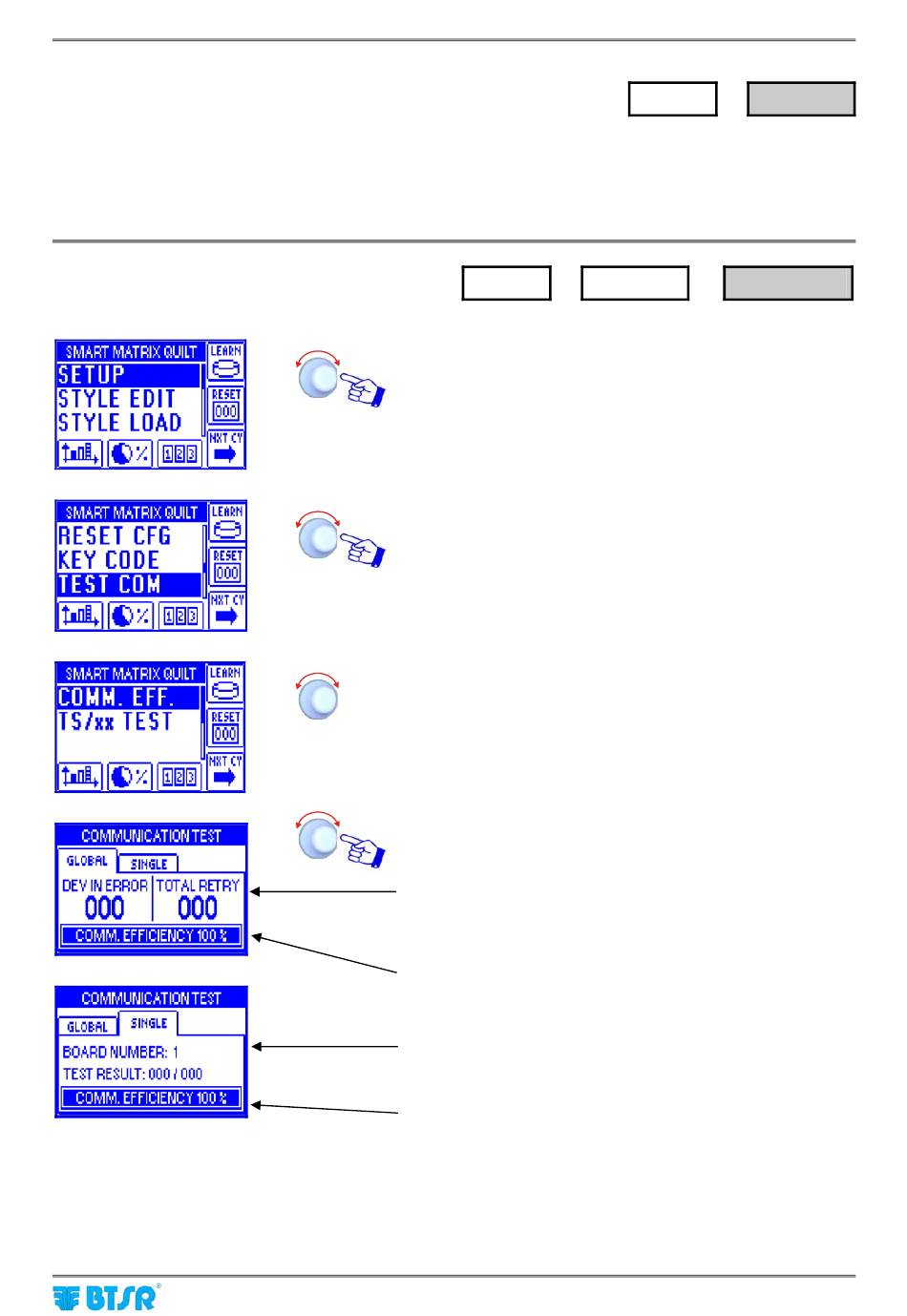

Communication Efficiency
SETUP
Enter the SETUP menu.
Select TEST COM.
Select COMM. EFF.
communications.
Select GLOBAL or
Number of sensors on which communication errors
occurred (DEV IN ERROR)
transmission repeated as result of detected errors
RETRY). A maximum of 5 transmission are repeated for
each sensor.
Global efficiency index.
Like for GLOBAL option, but referred to the selected Board
only. (e.g.: BOARD
Efficiency index of Board 1.
