CV% Display
B2

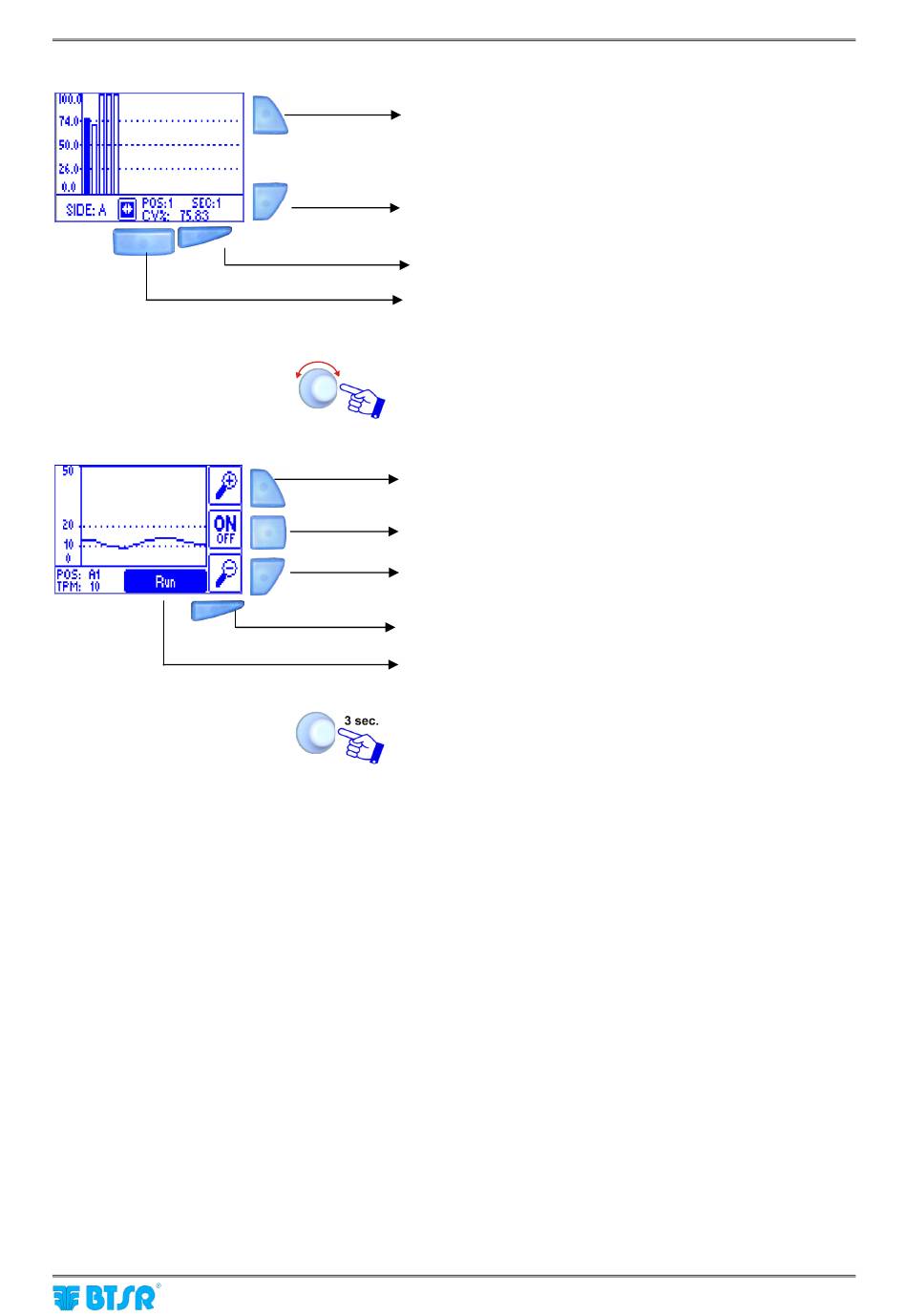

Individual sensor details
To change the visualization scale (zoom +)
To change the visualization scale (zoom -)
To switch to the TPX
For the meaning of this button, please refer to the
description on previous page "TPM or TPI values display"
Click to move to the graphic display of details related to the
individual sensor (both from the CV% display screen and
from the TPX display screen).
To change the visualization scale (zoom +)
Possibility of activating/deactivating the sensor via software
To change the visualization scale (zoom -)
To choose the visualization type
Sensor status (Run, Disab(sw), Tens
To leave the function.
SMART MATRIX TWIST
Sensor Histogram
display
(TPX or CV%)
L, etc.)
