LED
(green)
Catch
.
The replacement procedure starts.
PostBase Vision moves the ink cartridge to
the exchange position and opens the flap.
• Follow the instructions on the display. The
screen sequence demonstrates the
procedure of changing the cartridge.
The required steps are described in detail
below.

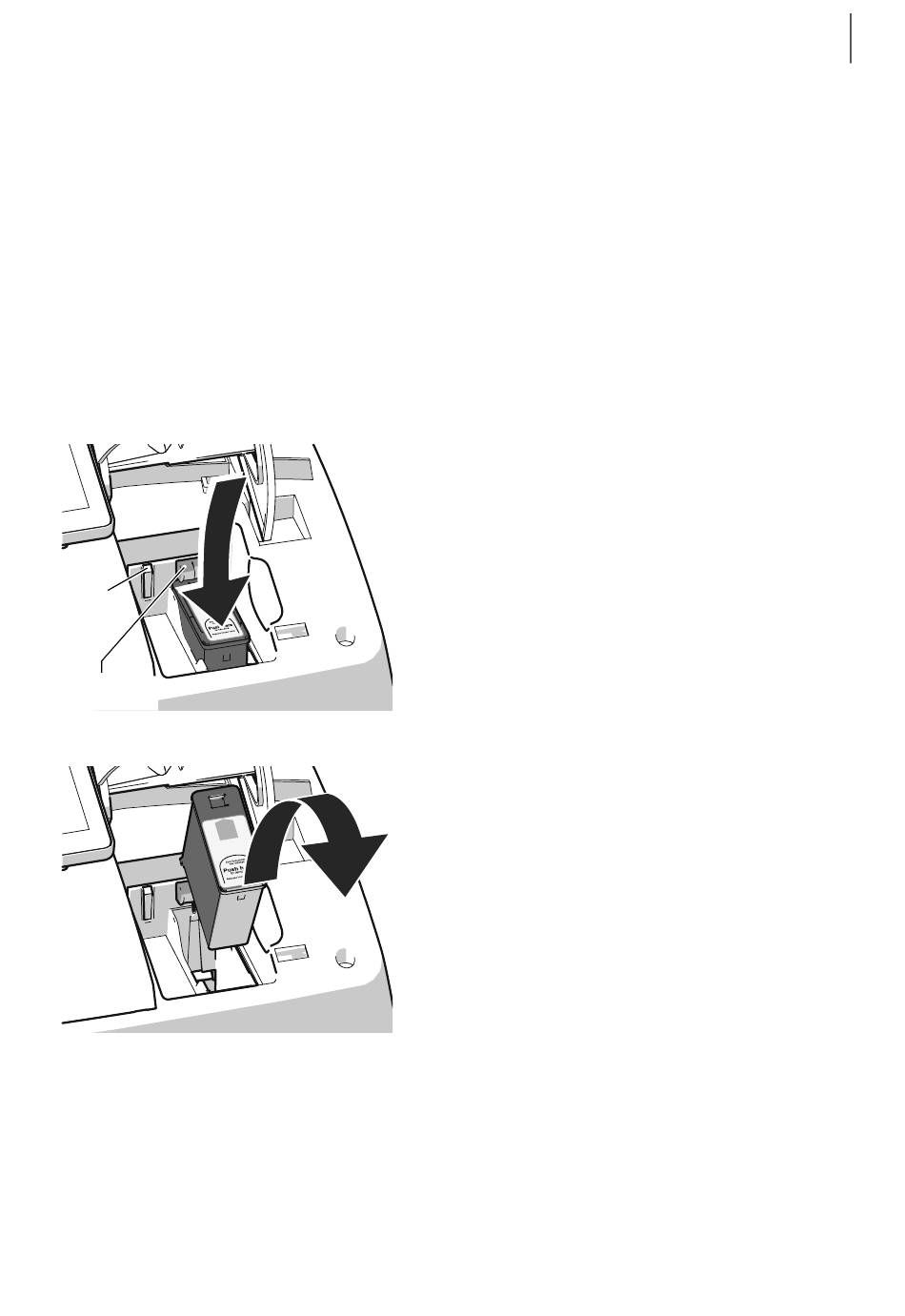

Removing the ink cartridge
• Slightly push the cartridge down on the
'Push here ...' mark. In doing so, the car-
tridge tilts to the front.
The cartridge is unlatched. The green LED
flashes.
• Ease off against the spring pressure and
let the cartridge slide upwards, past the
green catch.
• Take the ink cartridge upward and out of
the socket.
