5.5 Ethernet

5.4.3.2 Using the Tool Analog Inputs, Differential

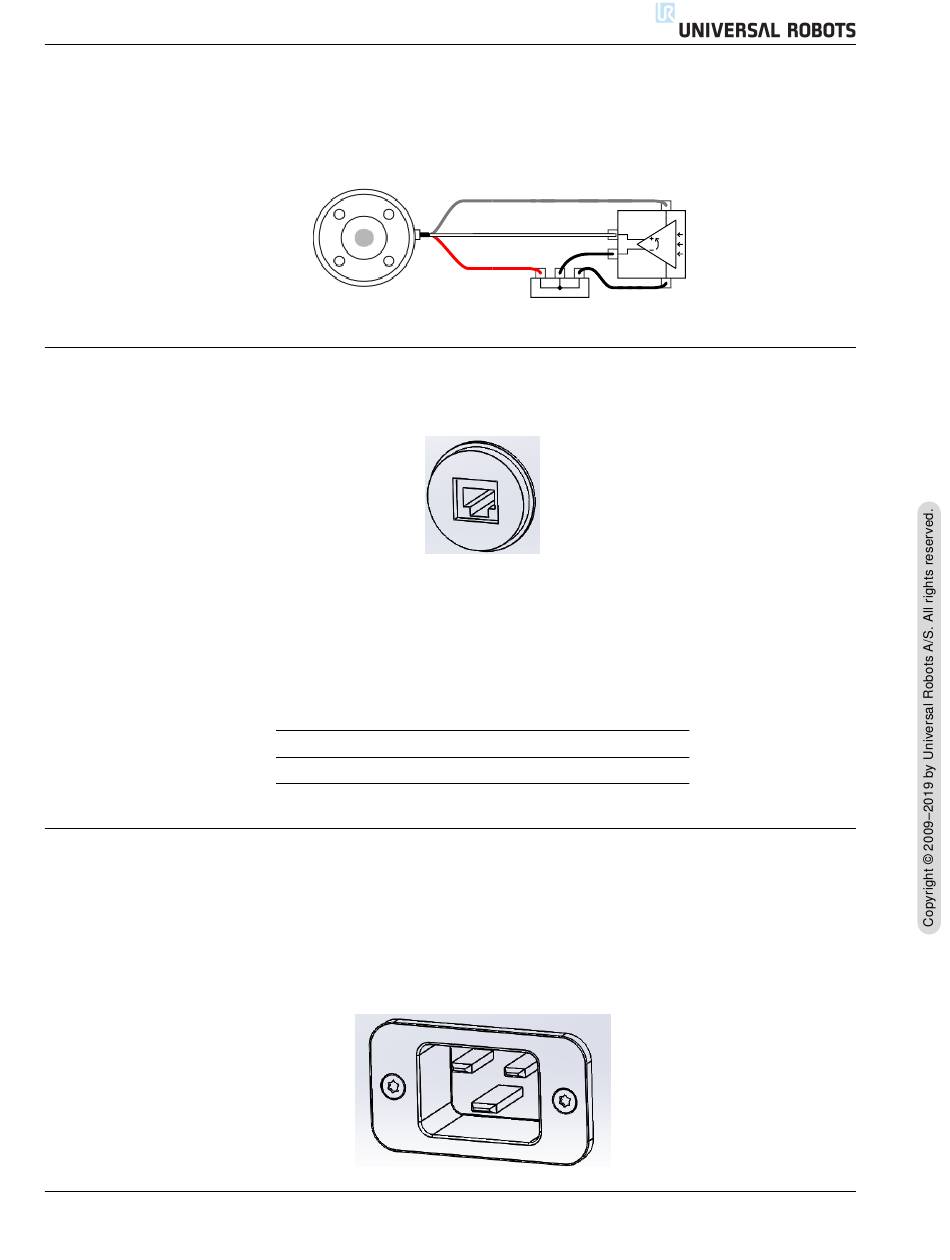

The example below shows how to connect an analog sensor with a differential output. Connect the
negative output part to GND (0V) and it works in the same way as a non-differential sensor.
5.5 Ethernet
An Ethernet connection is provided at the bottom of the control box, see illustration below.
The Ethernet interface can be used for the following:
• MODBUS I/O expansion modules. See more in part II.
• Remote access and control.
The electrical specifications are shown below.

5.6 Mains connection

The mains cable from the controller box has a standard IEC plug in the end. Connect a country
specific mains plug or cable to the IEC plug.
In order to energize the robot, the control box must be connected to the mains. This must be done
through the standard IEC C20 plug at the bottom of the control box through a corresponding IEC
C19 cord, see illustration below.
Version 3.10
Parameter
Communication speed
I-45
POWER
AI2 AI8
GND
Min Typ Max Unit
10 - 1000 Mb/s
UR3/CB3
