• Click on the ribbon cable with the right orientation.
• Use some fixing pads to fix the ribbon cable.
3. Power up the controller box.
• The interface is automatically detected.
• The safety system of the robot reports that EUROMAP 67 is detected but not defined in the
robot Installation. Go to Installation, Safety, and Miscellaneous and check the check-box
Euromap67.
• Press the button Save and restart.
• The GUI restarts.
• Confirm the new safety settings.
• The EUROMAP 67 is now installed and ready to use.
19.2 Uninstalling
Follow the procedure below.
1. Power down the controller box.
• The green light of the power button of the teach pendant must be off.
2. Unmount the interface.
• Remove the ribbon cable.
• Remove the M6 nut from the ground connector.
• Remove all M4 screws from the outer side of the controller box.
3. Power up the controller box.
CB3

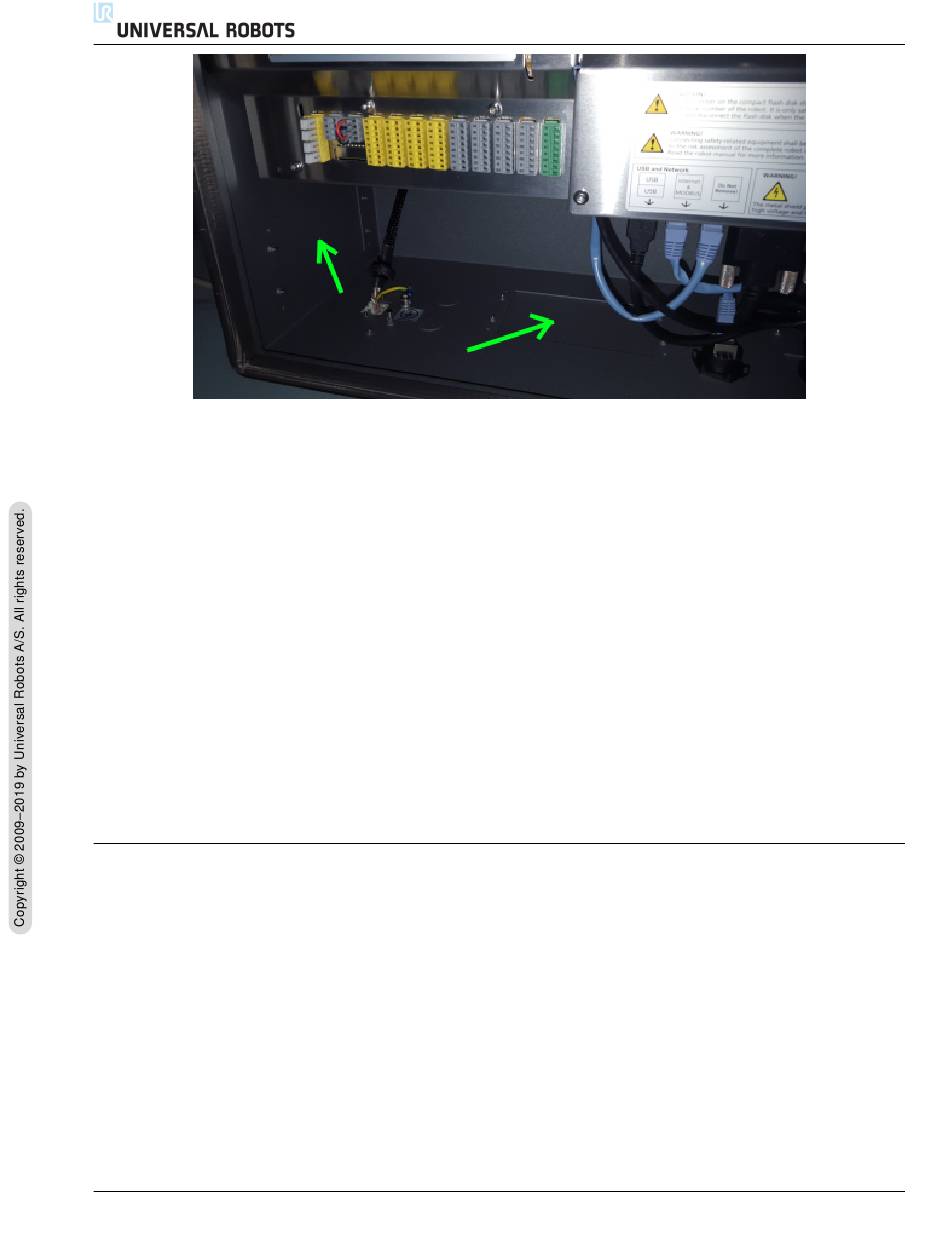

Figure 19.2: Interface placements in the controller box
III-24
19.2 Uninstalling
Version 3.10
