Technical Information
The maximum spray arm speed is approximately 50 revolutions per minute.
Therefore, the next pulse can be registered at the earliest approximately
1.2 seconds after the start of the monitoring time.
If a fault is indicated, the indication will remain active even after the door has
been opened. To cancel the fault indication, the door must be closed again.

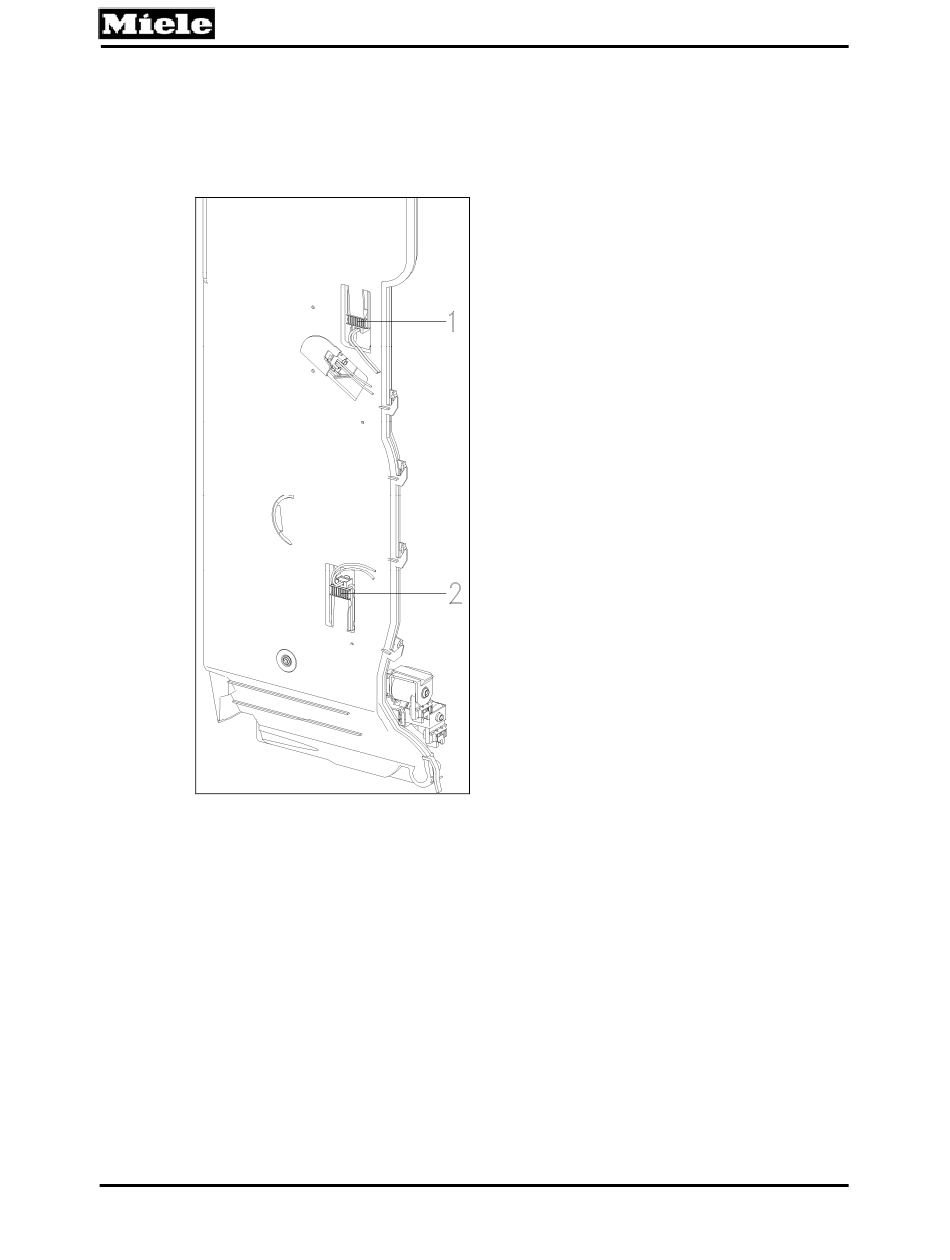

Figure 050-14: Middle and Bottom Spray Arm Sensors
1
Spray arm sensor, middle spray arm
2
Spray arm sensor, bottom spray arm
2.18
Filter Combination with Microfine Filter
Circulation pump M6 pumps the wash water from the sump via the filter
combination to the spray arms. The circulating wash water is filtered via 2
parallel paths. A proportion of the water flows through the central opening of
the coarse filter and then passes through the conical microfine filter (Figure
050-15, Item 3). The remainder passes directly through the large surface
area fine filter (Figure 050-15, Item 2), which contains a small hole for
ventilation of the suction area of the circulation pump. Both partial currents
are continually redistributed via constant circulation in the cabinet, so that all
96
G 1xxx/G 2xxx
