G 1xxx/G 2xxx
3.8
G 2872 (LaPerla II with Incognito)

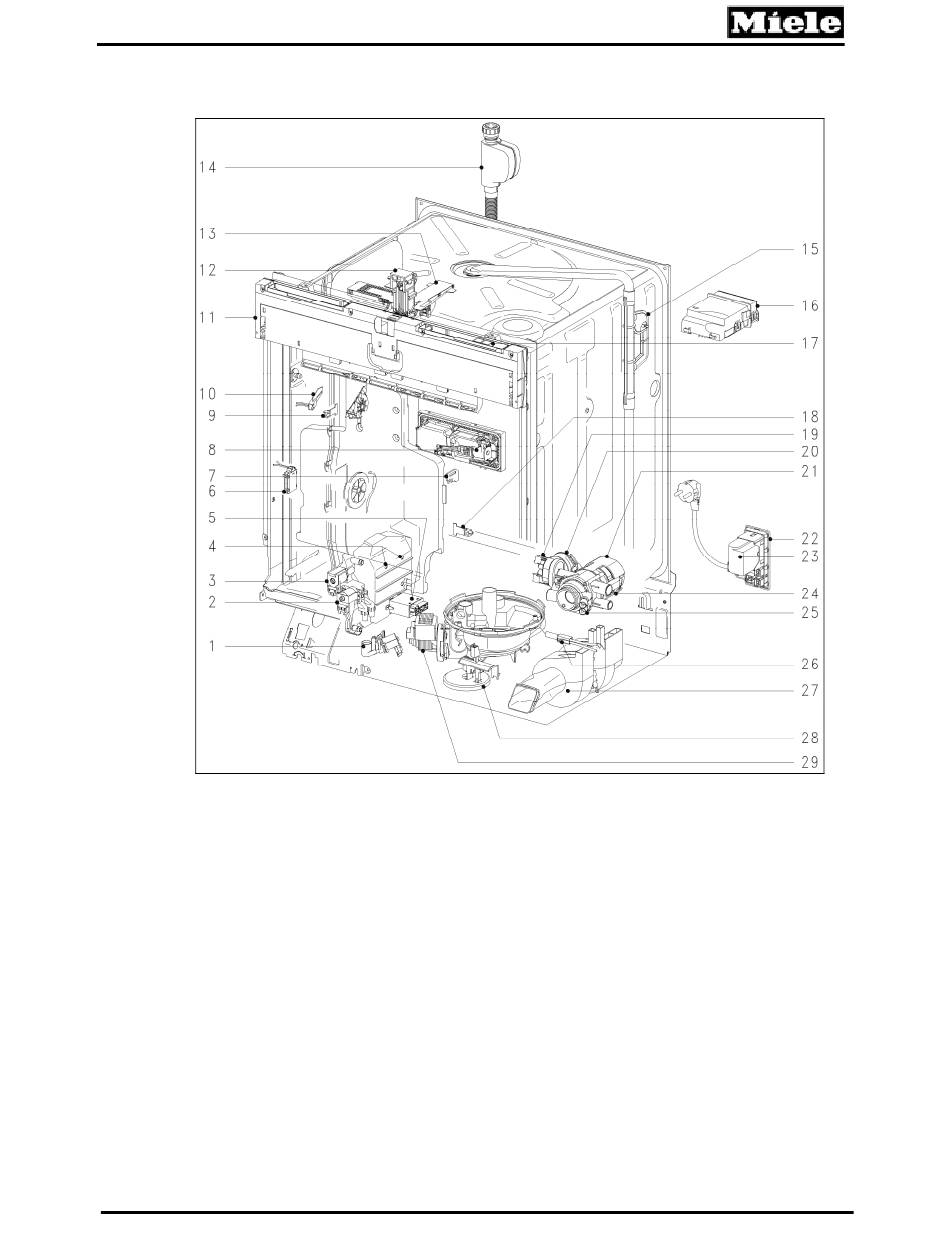

Figure D-27: G 2872 Component Layout
1
Brine valve, Y60
2
Reactivation solenoid, Y38
3
Wash-water hardness solenoid, Y5
4
Sensor softener, 10N1
5
Heater relay, K1/1
6
Middle and bottom spray arm sensors,
4N1 and 5N1
7
Rinse aid float switch, B8/1
8
Combination dispenser solenoid, Y50
9
Salt container cap, B3/13
10
Flow meter, B3/4
11
Electronic, 1N1 and 2N1
12
Door contact switch, S24
13
Comfort door closing aid: S4, S80, M23
14
Water intake solenoid, Y2
15
Turbidity sensor, B3/10
16
RemoteVision, 3N1
17
Main switch, S2
18
Salt float switch, B8/2
19
Heater pressure switch, B1/13
20
Slide shutter, M24 and B3/12
21
Frequency converter electronic -
circulation pump
22
Terminal block, X3/1
23
Interference suppression, Z1
24
Circulation pump (MPPW), M6
25
Heater, R1
26
Temperature sensor (NTC), R30
27
Fan, M2
28
Overflow float switch, B8/3
29
Drain pump, M8
