G 2670 (Excella with Incognito)

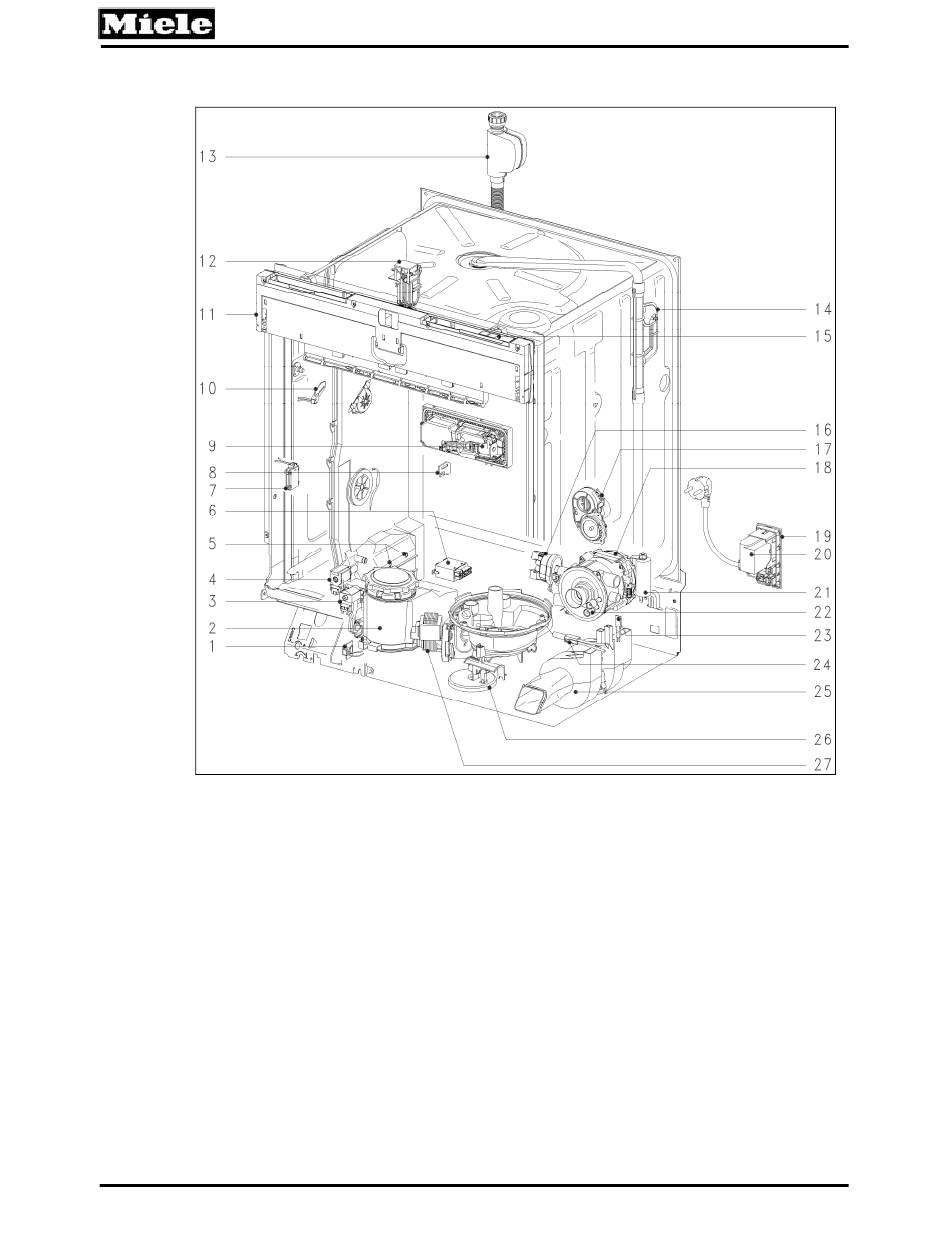

Figure D-26: G 2670 Component Layout (US only)
1 Salt float switch, B8/2
2 Salt container
3 Reactivation solenoid, Y38
4 Wash-water hardness solenoid, Y5
5 Sensor softener, 10N1
6 Heater relay, K1/1
7 Middle and bottom spray arm sensors, 4N1
and 5N1
8 Rinse aid float switch, B8/1
9 Combination dispenser solenoid, Y50
10 Flow meter, B3/4
11 Electronic modules, 1N1 and 2N1
12 Door contact switch, S24
13 Water intake solenoid, Y2
14 Turbidity sensor, B3/10
15 Main switch, S2
16 Heater pressure switch, B1/13
17 Slide shutter, M24 and B3/12
18 Circulation pump (MPEW), M6
19 Terminal block, X3/1
20 Interference suppression, Z1
21 Circulation pump capacitor, C6
22 Heater, R1
23 Speed sensor, B3/9
24 Temperature sensor (NTC), R30
25 Fan, M2
26 Overflow float switch, B8/3
27 Drain pump, M8
