G 1xxx/G 2xxx
3.2
G 1202, G 2120, G 214x, G 2150 (Optima Slimline, Inspira,
Diamante with Touchtronic)

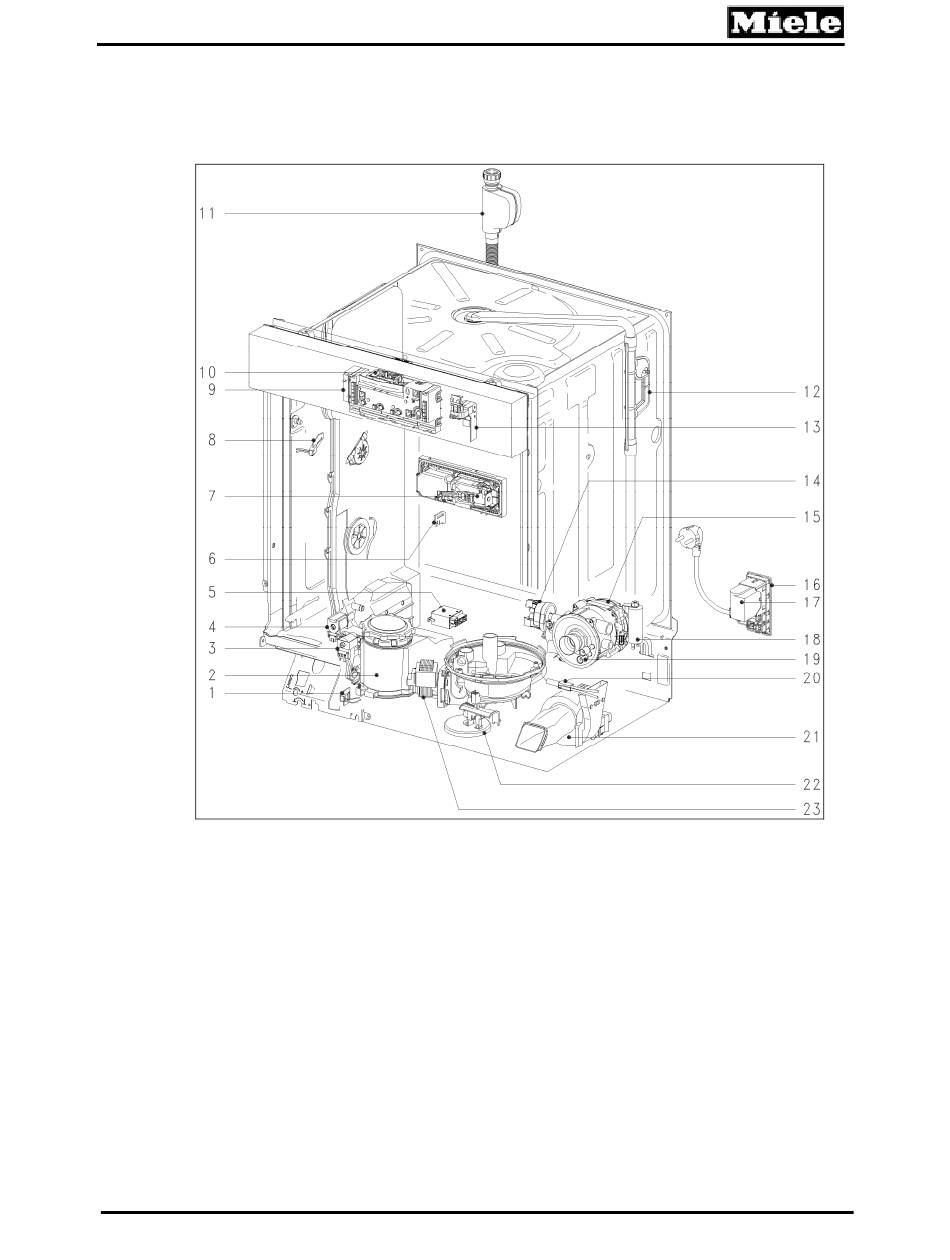

Figure D-21: G 1202, G 2120, G 214x, G 2150 Component Layout
1
Salt float switch, B8/2
2
Salt container
3
Reactivation solenoid, Y38
4
Wash-water hardness solenoid, Y5
5
Heater relay, K1/1
6
Rinse aid float switch, B8/1
7
Combination dispenser solenoid, Y50
8
Flow rate sensor, B3/4
9
Electronic, 1N1
10
Door contact switch, S24
11
Water intake solenoid, Y2
12
Turbidity sensor, B3/10
13
Main switch, S2
14
Heater pressure switch, B1/13
15
Circulation pump (MPEH), M6
16
Terminal block, X3/1
17
Interference suppression, Z1 or Z2
18
Circulation pump capacitor, C6
19
Heater, R1
20
Temperature sensor (NTC), R30
21
Fan, M2
22
Overflow float switch, B8/3
23
Drain pump, M8
33
Technical Information
