G 1xxx/G 2xxx
3.10
G 2832 (LaPerla II with Navitronic)

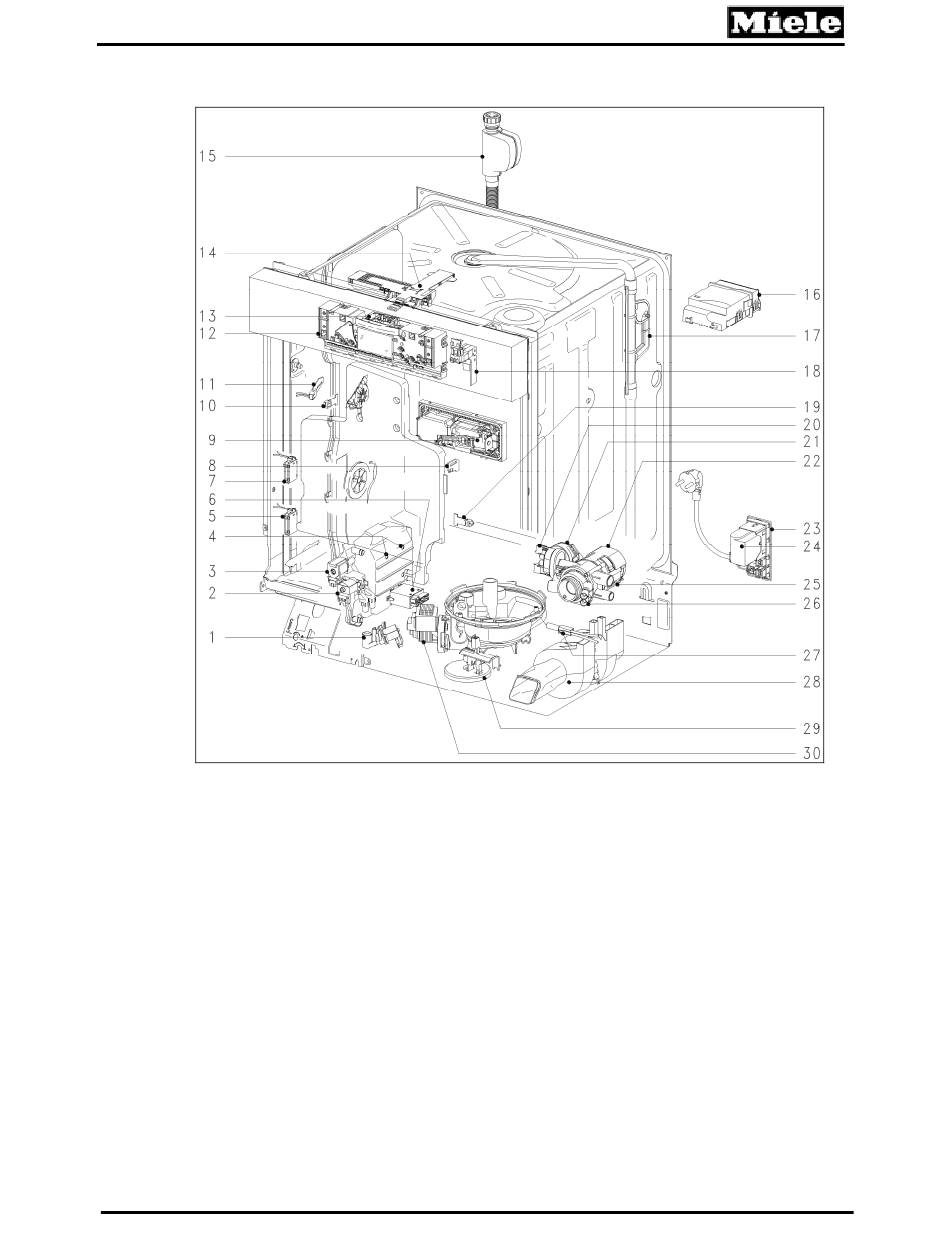

Figure D-29: G 2832 Component Layout
1
Brine valve, Y60
2
Reactivation solenoid, Y38
3
Wash-water hardness solenoid, Y5
4
Sensor softener, 10N1
5
Bottom spray arm sensor, 5N1
6
Heater relay, K1/1
7
Middle spray arm sensor, 4N1
8
Rinse aid float switch, B8/1
9
Combination dispenser solenoid, Y50
10
Salt container cap, B3/13
11
Flow meter, B3/4
12
Electronic, 1N1 and 2N1
13
Door contact switch, S24
14
Comfort door closing aid: S4, S80, M23
15
Water intake solenoid, Y2
16
RemoteVision, 3N1
17
Turbidity sensor, B3/10
18
Main switch, S2
19
Salt float switch, B8/2
20
Heater pressure switch, B1/13
21
Slide shutter, M24 and B3/12
22
Circulation pump frequency converter
23
Terminal block, X3/1
24
Interference suppression, Z1
25
Circulation pump (MPPW), M6
26
Heater, R1
27
Temperature sensor (NTC), R30
28
Fan, M2
29
Overflow float switch, B8/3
30
Drain pump, M8
41
