WAN Status

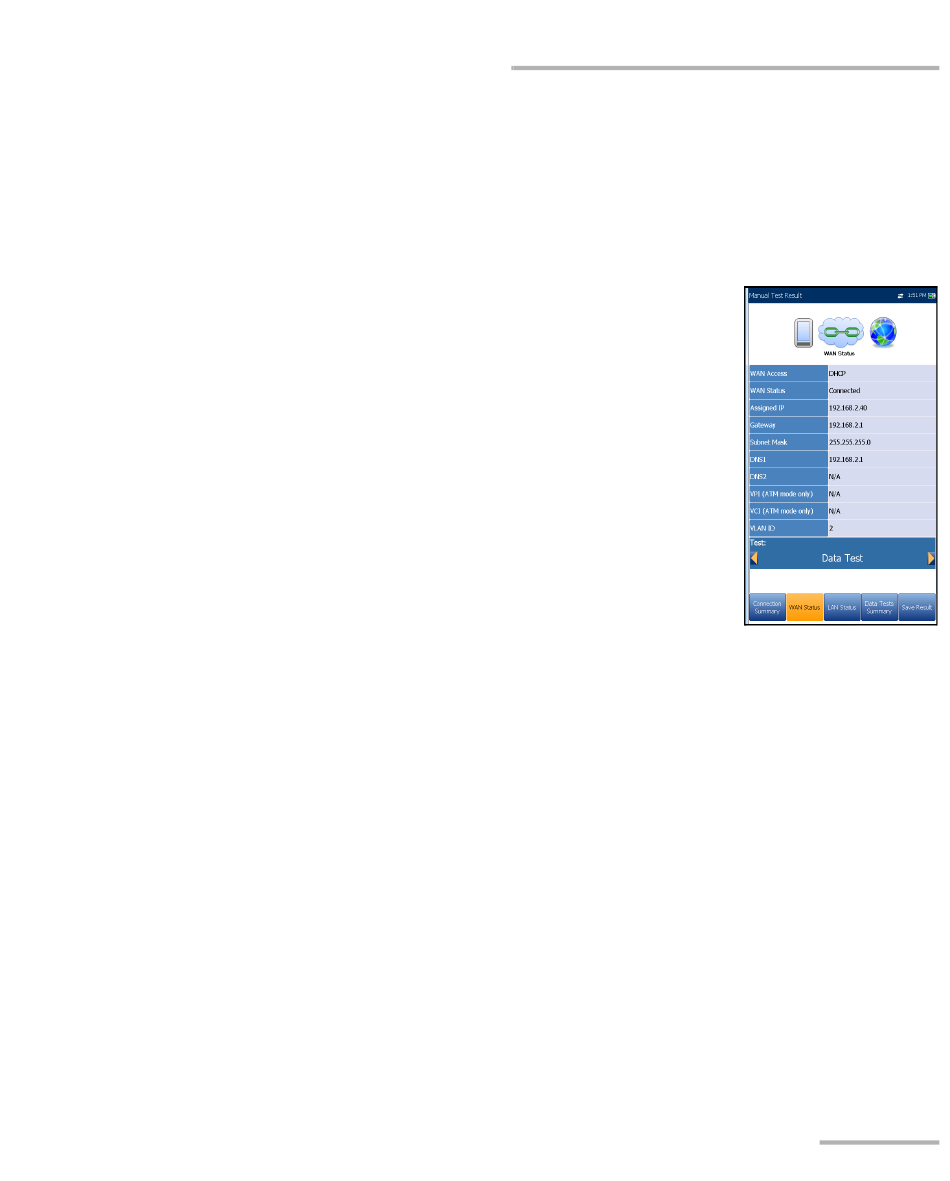

The WAN Status tab allows you to view the status information of the
connection between the WAN port of the unit and the ISP (internet service
provider). For Manual Test, you can also select which triple-play test you
want to run or view.
WAN Access specifies the encapsulation method

used by the network and consists of the following
types:






WAN Status value changes as per the WAN state of the current test. For

Manual Test, the following states may be displayed:



Assigned IP displays IPv4 address information assigned to the unit that

is connected to the network.
G.fast/VDSL2/ADSL2+ Multi-play Test Set
PPPoE is point-to-point protocol over
Ethernet.
PPPoA is point-to-point protocol over ATM.
DHCP is Dynamic Host Control Protocol
which is used to dynamically assign an IP
address for the client node on the network.
IPv6 (DHCP) is equivalent to the above but for
Internet Protocol version 6 vs IPv4.
Static IP is the current location assigned by the service provider or
user.
IPoA stands for classical Internet Protocol over ATM.
Idle - if WAN setup for the selected Test is different from the one
running and Login button is not activated.
Disconnected - if WAN setup for the selected Test is different from
the one running and this test had WAN connected before and
stopped.
Connecting or Connected - if current selected test is running.
