930
NETWORK TESTING
FasTesT
TM
: three-wavelength measurement of optical loss,
ORL and fiber length in 10 seconds
All-in-one portable test solution: up to eight instruments combined
in a single, eye-catching handheld package
FTTx ready: allows for the testing of passive optical networks (PONs)
at 1310 nm, 1490 nm and 1550 nm, the three wavelengths
recommended by the ITU-T (G.983.3) for PONs
Cost of ownership: lowest in the industry, thanks to three-year
warranty and recommended calibration interval, error-free testing
and minimized training time
Mega Hertz
www.megahz.com
Telecommunications Test and Measurement
MULTIFUNCTION LOSS TESTER

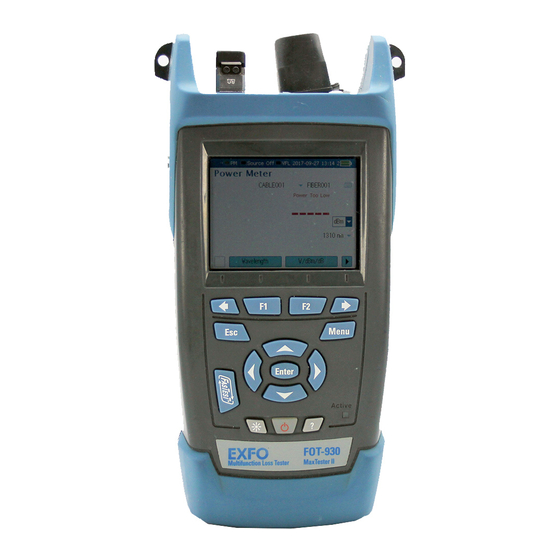

FOT-930 MaxTester
Advertisement
Related Manuals for EXFO FOT-930 MaxTester
Summary of Contents for EXFO FOT-930 MaxTester
- Page 1 MULTIFUNCTION LOSS TESTER FOT-930 MaxTester NETWORK TESTING FasTesT : three-wavelength measurement of optical loss, ORL and fiber length in 10 seconds All-in-one portable test solution: up to eight instruments combined in a single, eye-catching handheld package FTTx ready: allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs...
- Page 2 Features, Much Bigger Performance The new FOT-930 MaxTester Multifunction Loss Tester is designed to help network service providers address CAPEX and OPEX issues, enable installers to easily adapt to all network types, and provide CATV operators with a single-unit solution to their backreflection, fiber-length, high-power and bidirectional loss measurement needs.
- Page 3 Easier data post-processing and transfer from the FTB-3930 module (see Figure below) Point-to-Multipoint Testing with Multiple Referencing Implemented in the FTB-3930 MultiTest Module, multiple referencing lets you coordinate the FTB-3930 with up to 10 remote FOT-930 MaxTester units. Key benefits include:...
- Page 4 1310/1490/1550 nm transmission in FTTH networks, performing multimode testing in enterprise networks, etc.—a do-it-all solution such as the FOT-930 MaxTester. Key Advantages for All Network Types Fast, three-wavelength loss and ORL testing...
-
Page 5: Key Features
FOT-930 MaxTester KEY FEATURES Two FasTesT ports: a three-wavelength singlemode port, including either 1625 or 1490 nm, and a two-wavelength multimode port, for a total of up to five wavelengths Automatic measurement of ORL and fiber length during FasTesT Visual loss and ORL pass/fail analysis... - Page 6 These subcontractors must produce proper test documentation to corroborate the tests were performed as specified. EXFO’s FOT-930 MaxTester easily and efficiently provides complete, high-quality test documentation. Its data logging and management features help users quickly access and download test results to any PC through the RS-232 port for in-depth analysis and first-class report generation.
-
Page 7: Specifications
FOT-930 MaxTester SPECIFICATIONS External Power Meter FOT-932 FOT-932X FOT-933 Detector type InGaAs 10 to −70 26 to −55 6 to −73 Measurement range (dBm) Down to −77 Down to −65 Down to −80 Range displayed (dBm) Uncertainty 2, 3 ± 5 % ± 0.1 nW ±... -
Page 8: Ordering Information
800-883-8839 sales@megahz.com www.megahz.com EXFO is certified ISO 9001 and attests to the quality of these products. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EXFO has made every effort to ensure that the information contained in this specification sheet is accurate.
