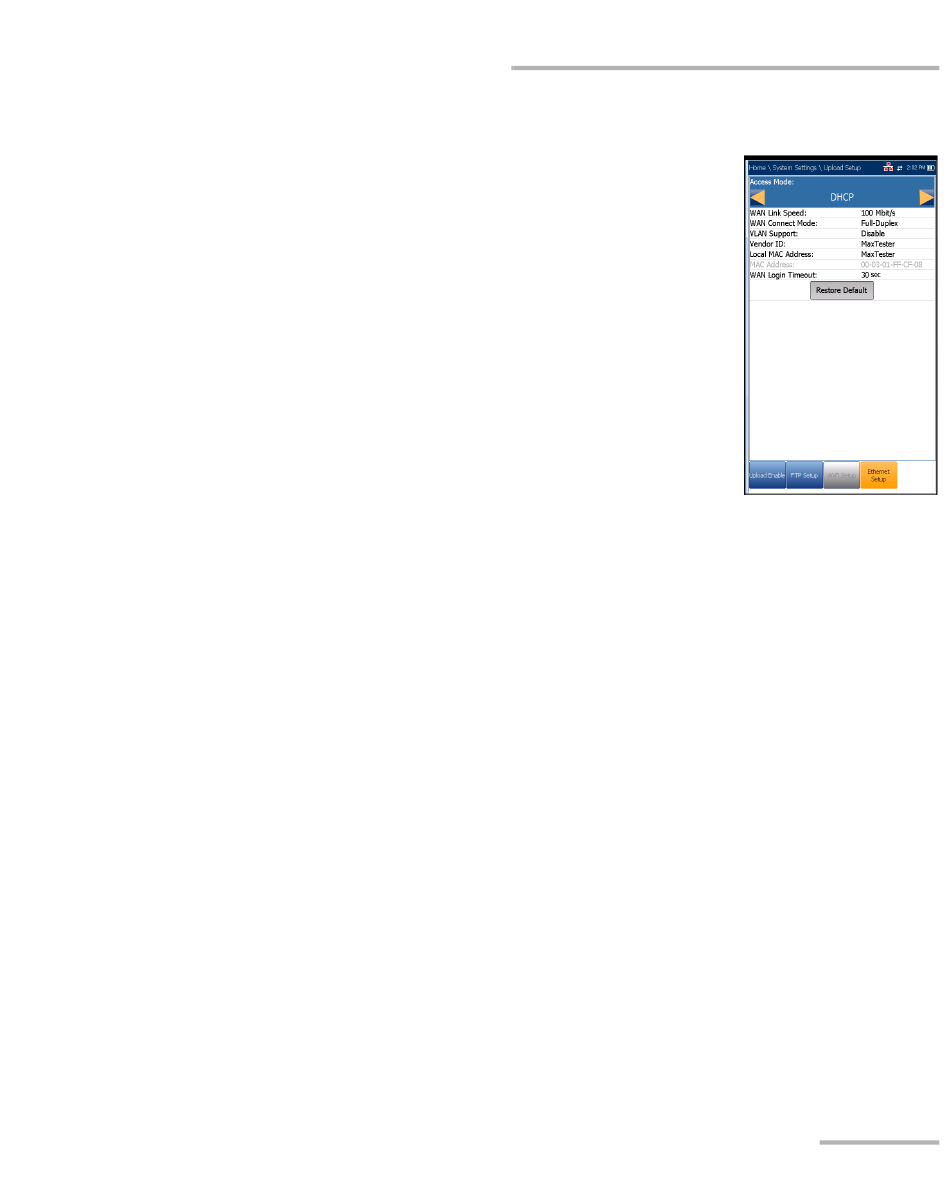

Ethernet Setup
The Ethernet Setup function allows you to configure
the line and access modes, etc for an Ethernet
connection, using the following parameters:
Access Mode options are DHCP , Static, or PPPoE.

WAN Link Speed is a choice between Auto

(negotiated during the link establishment), 1000
(GVXAA and GVXAB models only), 100, or
10 Mbit/s.
WAN Connect Mode is Full- or Half-Duplex,

when Link Speed is set to either 1000 (GVXAA
and GVXAB models only), 100, or 10 Mbit/s.
VLAN Support enables the unit to tag/untag ethernet frames.

VLAN ID is a virtual local area network (VLAN) tag ranging from 0

through 4094. The entry is available only when VLAN Support is
Enable.
Vendor ID is the name of the unit. This entry is available only when

Access Mode is DHCP .
Local Mac Address is the internal MAC address of the unit: either

MaxTester or User Defined.
Mac Address is a specific MAC address, in a hexadecimal format, if

User Defined was selected for the previous parameter. This entry is
available only when Access Mode is DHCP or Static.
WAN Login Timeout is a numeric setup entry.

The following parameters are available only when Access Mode is PPPoE.


G.fast/VDSL2/ADSL2+ Multi-play Test Set
Login Name/Password is your user ID and password.
Obtain IP is either Dynamic where the access concentrator or
broadband remote access server assigns a temporary IP address to
the unit, or Static where you enter the IP address of the unit.
