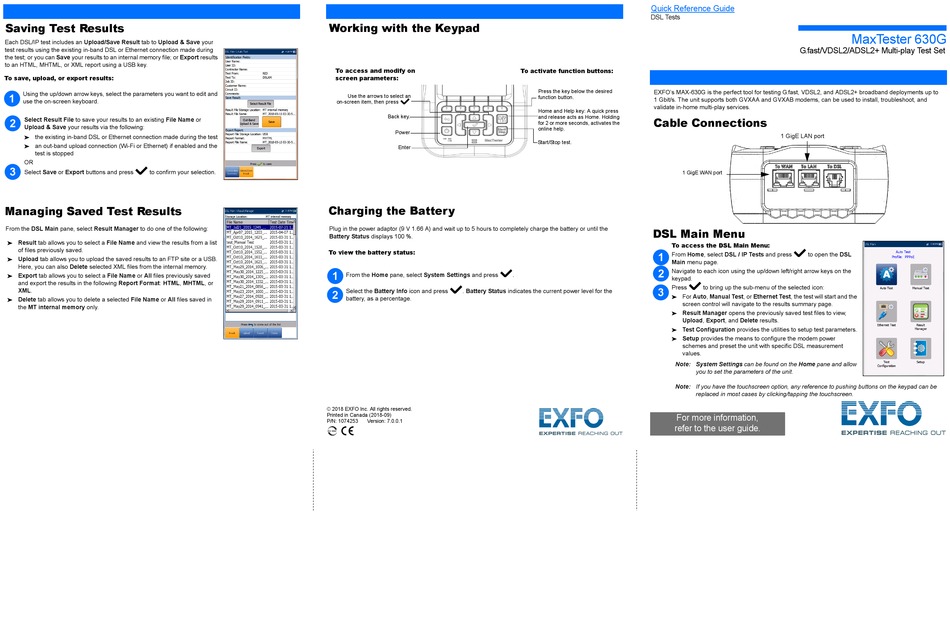

EXFO MaxTester 630G Quick Reference Manual

Saving Test Results
Each DSL/IP test includes an Upload/Save Result tab to Upload & Save your
test results using the existing in-band DSL or Ethernet connection made during
the test; or you can Save your results to an internal memory file; or Export results
to an HTML, MHTML, or XML report using a USB key.
To save, upload, or export results:
Using the up/down arrow keys, select the parameters you want to edit and
1
use the on-screen keyboard.
Select Result File to save your results to an existing File Name or
2
Upload & Save your results via the following:
the existing in-band DSL or Ethernet connection made during the test

an out-band upload connection (Wi-Fi or Ethernet) if enabled and the

test is stopped
OR
3
Select Save or Export buttons and press to confirm your selection.
Managing Saved Test Results
From the DSL Main pane, select Result Manager to do one of the following:
Result tab allows you to select a File Name and view the results from a list

of files previously saved.
Upload tab allows you to upload the saved results to an FTP site or a USB.

Here, you can also Delete selected XML files from the internal memory.
Export tab allows you to select a File Name or All files previously saved

and export the results in the following Report Format: HTML, MHTML, or
XML.
Delete tab allows you to delete a selected File Name or All files saved in

the MT internal memory only.
Working with the Keypad
To access and modify on
screen parameters:
Use the arrows to select an
on-screen item, then press
Back key.
Power
Enter
Charging the Battery
Plug in the power adaptor (9 V 1.66 A) and wait up to 5 hours to completely charge the battery or until the
Battery Status displays 100 %.
To view the battery status:
1
From the Home pane, select System Settings and press
Select the Battery Info icon and press . Battery Status indicates the current power level for the
2
battery, as a percentage.
© 2018 EXFO Inc. All rights reserved.
Printed in Canada (2018-09)
P/N: 1074253 Version: 7.0.0.1

Quick Reference Guide
DSL Tests
To activate function buttons:
Press the key below the desired EXFO's MAX-630G is the perfect tool for testing G.fast, VDSL2, and ADSL2+ broadband deployments up to
function button.
1 Gbit/s. The unit supports both GVXAA and GVXAB modems, can be used to install, troubleshoot, and
validate in-home multi-play services.
Home and Help key: A quick press
and release acts as Home. Holding Cable Connections
for 2 or more seconds, activates the
online help.
Start/Stop test.
1 GigE WAN port
DSL Main Menu
To access the DSL Main Menu:
1
From Home, select DSL / IP Tests and press
Main menu page.
2 Navigate to each icon using the up/down left/right arrow keys on the
.
keypad.
Press
3
For Auto, Manual Test, or Ethernet Test, the test will start and the

screen control will navigate to the results summary page.
Result Manager opens the previously saved test files to view,

Upload, Export, and Delete results.
Test Configuration provides the utilities to setup test parameters.

Setup provides the means to configure the modem power

schemes and preset the unit with specific DSL measurement
values.
Note: System Settings can be found on the Home pane and allow
Note: If you have the touchscreen option, any reference to pushing buttons on the keypad can be
For more information,
refer to the user guide.

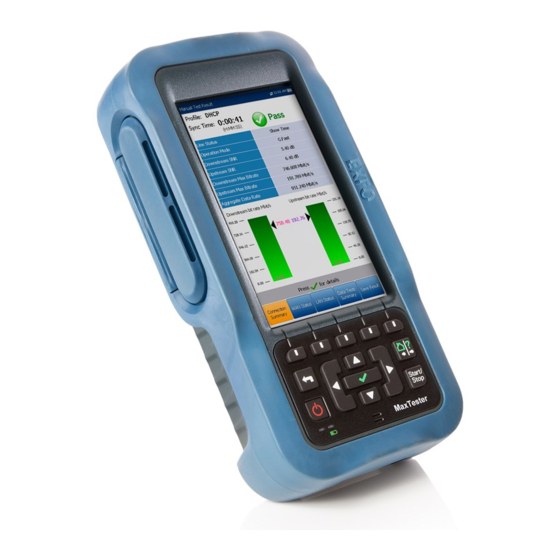

MaxTester 630G
G.fast/VDSL2/ADSL2+ Multi-play Test Set
1 GigE LAN port
to open the DSL
to bring up the sub-menu of the selected icon:
you to set the parameters of the unit.
replaced in most cases by clicking/tapping the touchscreen.
