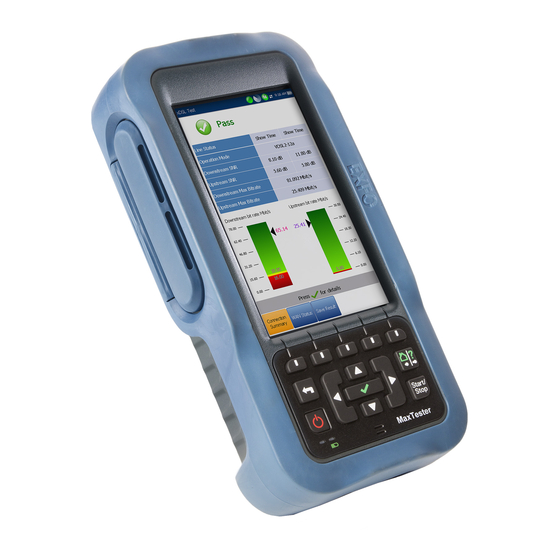

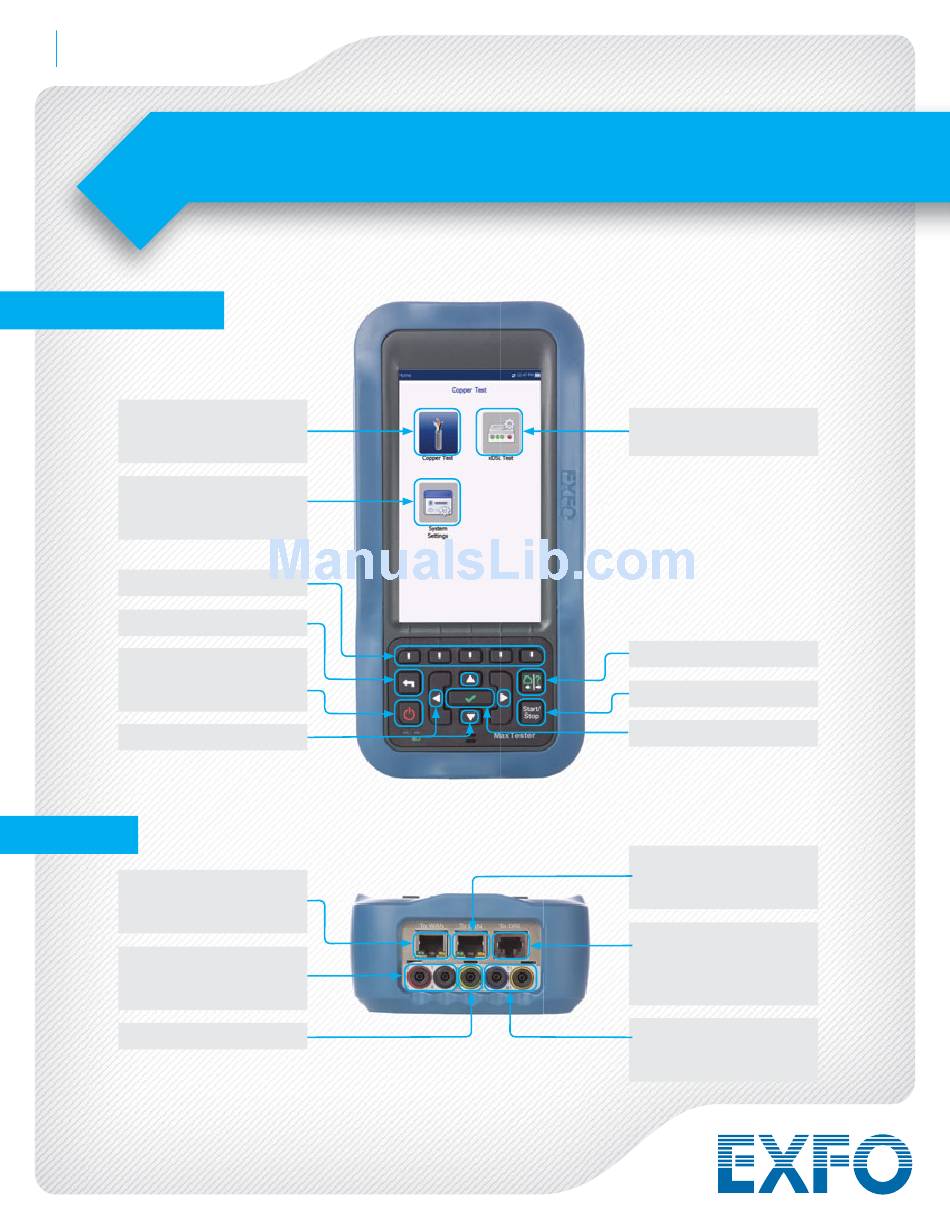

The MaxTester 635
QUICK REFERENCE GUIDE
Menu and Keys
Copper Test
Tdr, RFL, DMM, wideband,
POTS
System
Software version/options,
date/time, power settings
Function Keys
Escape/Back
Power
Standby mode: Hold button
for 1 beep
Navigation Keys
Ports
Wan (Ethernet RJ45)
Connect to router/gateway
for IP testing
T/A–R/B
Primary interface for
Earth/Ground
* Model V2XAA: Annex A
Model V2XAB: Annex A and B
xDSL Test
ADSL2+ Annex A/B*, VDSL2
Home
Start/Stop
Enter
LAN (Ethernet 10/100)
Connect to STB or PC for DSL
based IP testing
WAN (DSL)
Connect to ADSL2+/VDSL2
DSLAM. 2 pairs on RJ-11 for
bonded tests
T1/A1–R1/B1
Secondary interface for copper
testing in 4-wire mode
Advertisement
Table of Contents
Related Manuals for EXFO MaxTester 635
Summary of Contents for EXFO MaxTester 635
- Page 1 The MaxTester 635 QUICK REFERENCE GUIDE Menu and Keys Copper Test xDSL Test TDR, RFL, DMM, wideband, ADSL2+ Annex A/B*, VDSL2 POTS System Software version/options, date/time, power settings Function Keys Escape/Back Home Power Standby mode: Hold button Start/Stop for 1 beep...
- Page 2 The MaxTester 635 Copper Testing Cables T/A–R/B Earth/Ground T1/A1–R1/B1 Primary interface Secondary interface ACC-M4MM ACC-M4MM ACC-M4MMYB DSL Testing Cables RJ-RJ-Banana Y-Cable DSL Bonding Options Primary interface RJ-Banana Cable RJ-RJ-RJ Y-Cable ACC-RJ11-4MM ACC-BD-4MM ACC-BD-RJ Charger Jack USB Port * In XAA model, these cables are included with the DSL Bonding option.
- Page 3 Copper Testing Smart-Pair Detective Auto-Test Quick line check and User test scripts FaultMapper Noise Tests Multimeter (DMM) Noise, power infl uence, Volts, current, resistance, impulse noise, WB PSD noise, isolation, capacitance, NEXT station ground Frequency Tests Balance, attenuation, load coil Time domain refl...
- Page 4 The MaxTester 635 › Launched in AUTO mode › All ranges scanned and fi rst fault highlighted Range › Choose GRAPH SELECTED to Manual selection of the navigate trace measurement range Distance First detected fault; distance metric is available in feet...
- Page 5 WB SE Attenuation › Unique technique used to measure insertion loss (attenuation) across a selected range Frequency Band Selection (ADSL2+ 2.2MHz, to VDSL2 30MHz) Cable Length View of estimated cable length along with a pass/fail Graph Selection Select to move cursor and navigate graph WB PSD Noise ›...
- Page 6 The MaxTester 635 DSL Test Cords WAN port RJ11 (DSL): V2XAA MODEL (ANNEX A) V2XAA MODEL (ANNEX A) V2XAA MODEL (ANNEX A) V2XAB MODEL (ANNEX A AND B) V2XAB MODEL (ANNEX A AND B) V2XAB MODEL (ANNEX A AND B)
- Page 7 DSL Summary Results Screen Key Results DSL line type, upstream and downstream SNRs and max bit rates Downstream and Upstream bit rates Press ENTER key for detailed results DSL Results Details DSL Statistics...
- Page 8 > EXFO serves over 2000 customers in more than 100 countries. To find your local office contact details, please go to www.EXFO.com/contact. A z Ö n m é r é s t e c h n i ka i s z a k é r t ő j e : EQUICOM Méréstechnikai Kft.
