Open-Q™ 820 (APQ8096) / 820Pro (APQ8096SG) µSOM Development Kit User Guide Version 1.4

3.8.23 VIP Expansion Header J71

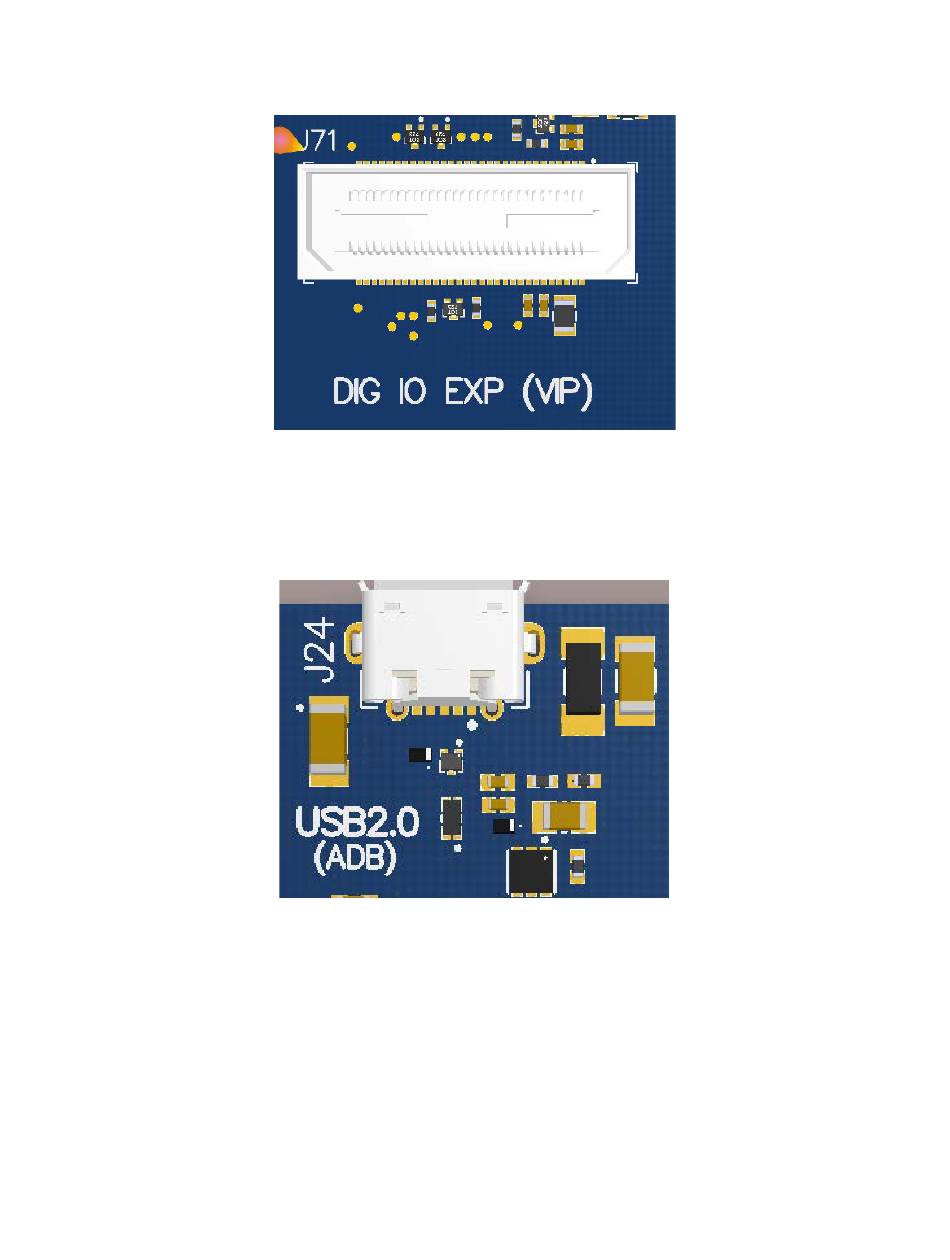

Figure 27 J71 VIP Expansion Header

This header is used for interfacing with Qualcomm® legacy automotive VIP boards. Note that this is

for Intrinsyc internal testing and is not supported.

Figure 28 J24 USB2.0 for ADB

J24 allows the development kit to communicate with a host PC using the Android Debug Bridge

(ADB). This port is a client mode port only and can be used simultaneously with the USB3.0

SuperSpeed ports.
