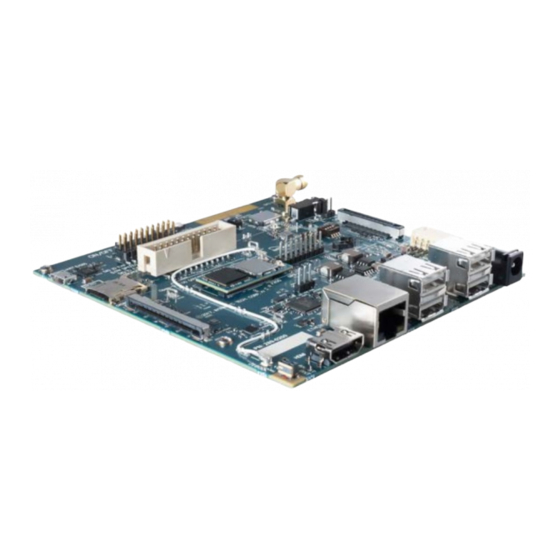

Development kit based on the snapdragon 2100 (apq8009w) processor

Advertisement

Quick Links

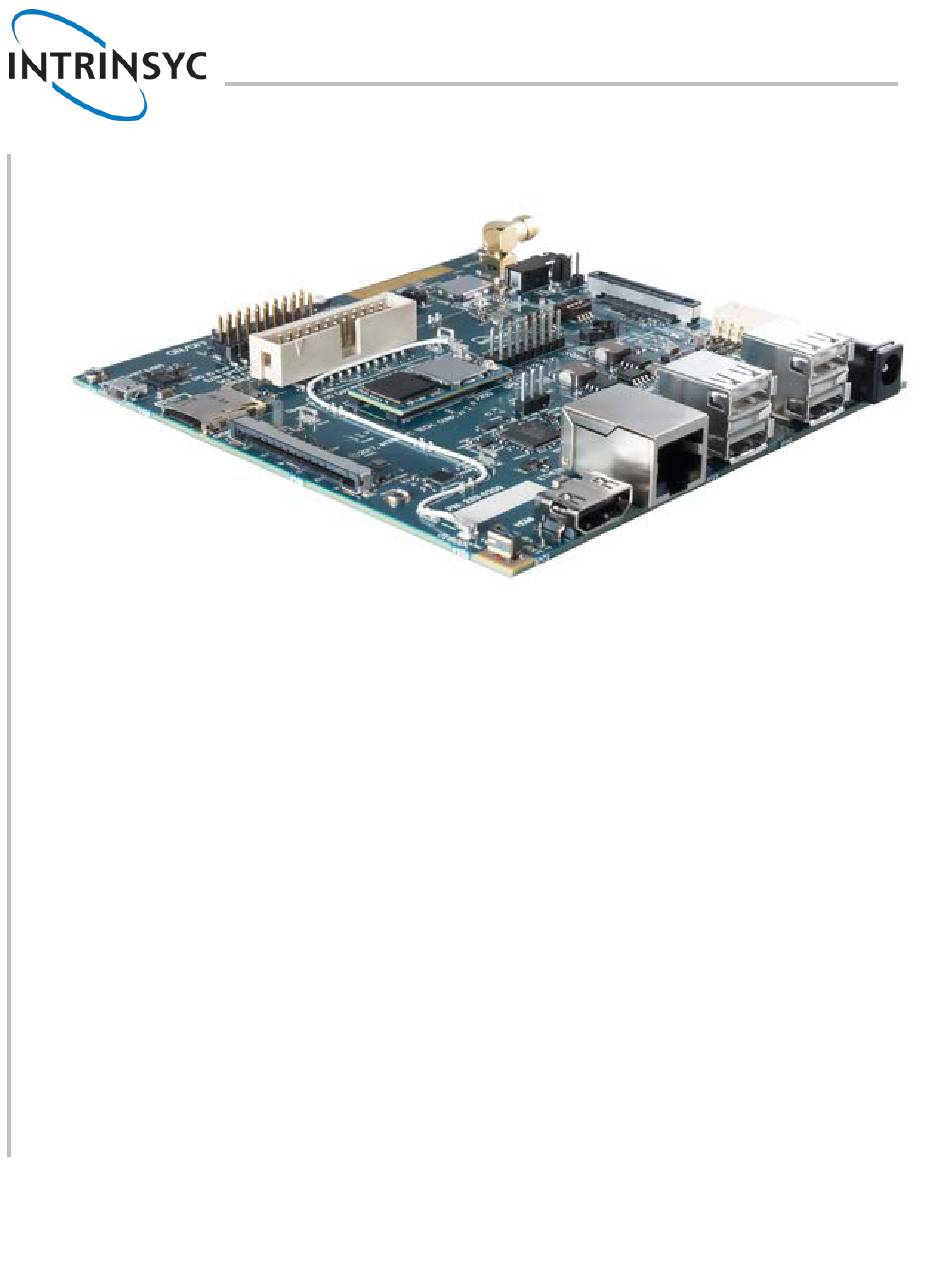

Open-Q™ 2100 Development Kit based on the
Snapdragon™ 2100 (APQ8009W) Processor
User Guide
[Document: ITC-01RND1260-UG-001 Version: 1.4]
Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase an Open-Q 2100 Development
Kit Based on Snapdragon™ 2100 Series (APQ8009W) Processor and Software License Agreement for the Open-Q 2100 Development Kit,
which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q™ Development Kit
from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part of the defined term
"Documentation" for purposes of the Agreement, solely in support of your permitted use of the Open-Q 2100 Development Kit under the
Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Technologies Corporation
and its respective licensors, which they can withhold, condition or delay in its sole discretion.
Intrinsyc is a trademark of Intrinsyc Technologies Corporation., registered in Canada and other countries.
Qualcomm® and Snapdragon™ are trademarks of Qualcomm® Incorporated, registered in the United States and other countries. Other
product and brand names used herein may be trademarks or registered trademarks of their respective owners.
This document contains technical data that may be subject to U.S. and international export, re-export, or transfer ("export") laws. Diversion
contrary to U.S. and international law is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Open-Q 2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intrinsyc Open-Q 2100

  • Page 1 [Document: ITC-01RND1260-UG-001 Version: 1.4] Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase an Open-Q 2100 Development Kit Based on Snapdragon™ 2100 Series (APQ8009W) Processor and Software License Agreement for the Open-Q 2100 Development Kit, which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q™...
  • Page 2 • Added instructions to change display Oct. 2, 2017 from HDMI to LCD. • Improved instructions for switching Apr. 25, 2018 display output • Fixed error in Wi-Fi specification Mar. 11, 2019 • Updated cover photo Copyright Intrinsyc Technologies Corporation...
  • Page 3: Table Of Contents

    Hardware Identification Label ............... 11 Getting Started ..................12 3.6.1 Default DIP switch settings .................. 12 3.6.2 Powering up the Open-Q 2100 Development Kit ..........12 3.6.3 Changing Display Output ..................13 System Block Diagram ................13 Open-Q 2100 SOM ................14 3.8.1...
  • Page 4 Coin cell battery holder ..................37 3.9.19 FM connector J1801 ..................... 37 3.9.20 Micro-SD card connector J1900 ................. 37 3.9.21 Ethernet connector J2801 ..................38 3.9.22 Power probe J202 ....................38 3.9.23 GNSS external antenna connector J3501 ............39 Copyright Intrinsyc Technologies Corporation...
  • Page 5: Introduction

    2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor. For more background information on this development kit, visit: www.intrinsyc.com 1.2 Scope This document will cover the following items on the Open-Q 2100 Development Kit: • Block Diagram and Overview • Hardware Features • Configuration •...
  • Page 6: Documents

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 2. DOCUMENTS This section lists the supplementary documents for the Open-Q 2100 Development Kit. 2.1 Applicable Documents REFERENCE TITLE Intrinsyc Purchase and Software License Agreement for the Open-Q Development Kit 2.2 Reference Documents...
  • Page 7 (Qualcomm® PMIC / baseband proprietary protocol) Single wire serial bus interface (Qualcomm® proprietary mostly PMIC / SSBI Companion chip and baseband processor protocol) Universal Asynchronous Receiver UART Transmitter User Identity module Universal Serial Bus USB HS USB High Speed Copyright Intrinsyc Technologies Corporation...
  • Page 8: List Of Figures

    2.4 List of Figures Figure 1 Open-Q 2100 Development Kit ..................... 11 Figure 2 Cable connection and DIP switches on the Open-Q 2100 Dev kit ........12 Figure 3 Open-Q 2100 SOM + Carrier Board Block Diagram ............14 Figure 4 Open-Q 2100 SOM ........................ 15 Figure 5 SOM Block Diagram ......................
  • Page 9 Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 Table 3.9-10 Power probe J202 Pin out ....................38 Table 3.9-11 DIP switch S3500 configurations ................... 39 Copyright Intrinsyc Technologies Corporation...
  • Page 10: Open-Q 2100 Development Kit

    3. OPEN-Q 2100 DEVELOPMENT KIT 3.1 Introduction The Open-Q 2100 Development Kit provides a reference platform for Qualcomm’s latest 2100 series - Snapdragon 2100 processor. This kit is suited for Android / Linux application developers, OEMs, consumer manufacturers, hardware component vendors, video surveillance, robotics, camera vendors, and flash chip vendors to evaluate, optimize, test and deploy applications that can utilize the Qualcomm®...
  • Page 11: Hardware Identification Label

    4.5” FWVGA (480x854) 16.7 M LCD (Optional Accessory) Figure 1 Open-Q 2100 Development Kit The development kit comes with Android for Wearables 7.1.1 software pre-programmed on the CPU board (SOM). Please contact Intrinsyc for availability of camera modules, sensor boards, and other accessories: sales@intrinsyc.com 3.5 Hardware Identification Label...
  • Page 12: Getting Started

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 3.6 Getting Started The instruction in this section explains how to setup the Open-Q 2100 Development Kit. 3.6.1 Default DIP switch settings The DIP switch S3400 and S1700 is by default set to OFF positions. This setting corresponds to HDMI display selected, SMB charger enabled, USB forced boot disabled and eMMC boot option selected.
  • Page 13: Changing Display Output

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 3.6.3 Changing Display Output The Open-Q 2100 Dev Kit is shipped pre-configured to HDMI display. If you need to change the display output between LCD and HDMI, use the following commands to switch the display.
  • Page 14: Open-Q 2100 Som

    Header TTL to UART Carrier Board Figure 3 Open-Q 2100 SOM + Carrier Board Block Diagram 3.8 Open-Q 2100 SOM The SOM provides the basic common set of features with minimal integration efforts for end users. It contains the following: •...
  • Page 15: Som Mechanical Properties

    A top side shield can for the Wi-Fi/GPS RF section is installed by default. 3.8.2 SOM Block Diagram The Open-Q 2100 SOM measuring 31.5mm x 15mm is where all the processing occurs. It is connected to the carrier board via two 100 pin Hirose DF40 connectors. The purpose of these connectors is to bring out essential signals such that other peripherals can be connected to the platform.
  • Page 16: Hardware Specification

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 3.8.3 Hardware Specification The Open-Q 2100 SOM platform encompasses the following hardware features: Table 3.8-2 Open-Q 2100 SOM Hardware Features Subsystem / Feature Set Description...
  • Page 17 Antenna 1 Antenna 2 Figure 6 Open-Q 2100 SOM Antenna locations Antenna 1: Antenna 1 is used for providing Wi-Fi and Bluetooth connectivity to WCN3620. This antenna is meant to be connected to the carrier board via a coaxial cable or to an external antenna.
  • Page 18: Open-Q 2100 Som Carrier Board

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 3.9 Open-Q 2100 SOM Carrier Board The Open-Q 2100 SOM Carrier board is a nano-ITX form factor board with various connectors used for connecting different peripherals. The following are the mechanical properties of the carrier board: Table 3.9-1 Open-Q 2100 SOM Carrier Board Mechanical Properties...
  • Page 19: Dip Switch S3400 Configuration Options

    Switch Figure 8 S3400 DIP switch There is a DIP switch S3400 on the top side of the Open-Q 2100 SOM carrier board. The 4- bit switch allows the user to control the system configuration. Table 3.9-2 below outlines the pin outs and connections of this DIP switches.
  • Page 20: Dip Switch S1700 Configuration Options

    Switch Figure 9 S1700 DIP switch There is a DIP switch S1700 on the top side of the Open-Q 2100 SOM Carrier Board. The 2-bit switch allows the user to control the system configuration and boot option. Table 3.9-3 below outlines the pin outs and connections of this DIP switches.
  • Page 21: Carrier Board Expansion Connectors

    Audio expansion Analog Audio header For earpiece/ headset via audio output Supported using PM8916- output after signal has expansion header been processed HDMI Port Extended Display ports HDMI port supports up to External Display 720p at 60Hz Copyright Intrinsyc Technologies Corporation...
  • Page 22 The information listed below is of particular use for those who want to interface other external hardware devices with the Open-Q 2100 SOM. Before connecting anything to the development kit, please ensure the device meets the specific...
  • Page 23: Dc Power Input J3000

    3.9.4 DC Power Input J3000 The Open-Q 2100 Development Kit power source connects to the 12V DC power supply jack J3000. Starting from the power jack, the 12V power supply branches off into different voltage rails via step down converters on the carrier board and PMIC on the SOM.
  • Page 24: Battery Header J3200

    Pin 1. Figure 12 J3200 Battery Header The Open-Q 2100 Development Kit platform can also power the SOM with a single cell Lithium-Ion Polymer (LiPo) battery pack which connects to header J3200. The purpose of this header is to be used by the end user to develop a battery charging solution, including battery characterization.
  • Page 25: Debug Serial Uart Over Usb J2700

    3.9.6 Debug Serial UART over USB J2700 Figure 13 J2700 Debug UART over USB The UART connection used on the Open-Q 2100 SOM is a USB micro B connector (J2700). This debug UART is available over USB via the FTDI FT232RQ chip on the carrier board.
  • Page 26 In summary, if sensor application is not needed, this expansion header can provide two BLSP1 (BIT0 and BIT 1), full BLSP3 for UART/ SPI/ I2C. Please refer to the schematic and consider the power before connecting anything to this header. Copyright Intrinsyc Technologies Corporation...
  • Page 27: Digital Io (Low Speed) Expansion Header J2601

    GPIO GPIO_86 J2601[13] GLSP1 (SPI_CS1) J2601[14] (stuffing GPIO_97_BLSP1 option) _SPI_CS1 Multipurpose pin 4 PMIC_MPP_4 J2601[15] Multipurpose pin 3 PMIC_MPP_3 J2601[16] from PMIC from PMIC GPIO 49 GPIO_49_US J2601[17] GPIO 69 GPIO_69_USER J2601[18] ER_LED1 _LED2 J2601[19] J2601[20] Copyright Intrinsyc Technologies Corporation...
  • Page 28: Audio Io Expansion (Pmic) Header J3600

    CDC_EAR_C J3600-15 GND (headphone CDC_HPH_RE J3600-16 reference) Note: The headset interfaces are option on the header J3600. Please refer to the carrier board schematic for appropriate resistor stuffing necessary to route headset signals to this header. Copyright Intrinsyc Technologies Corporation...
  • Page 29: Headset Jack J3702

    3. Headset detect 3.9.11 On Board PCB mount WLAN Antenna The Open-Q 2100 SOM carrier board has one on-board WLAN PCB mount antenna that connects to the WCN3620 Wi-Fi module on the SOM via a coaxial cable that attaches to the U.FL receptacles.
  • Page 30: Open-Q 2100 Display

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 3.9.12 Open-Q 2100 Display The display output options for the Open-Q 2100 Development Kit consists of: • An HDMI type A connector o HDMI (720p 60Hz) •...
  • Page 31: Display Connector J2300

    Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4 Please note that the Open-Q 2100 Development Kit is for evaluation purposes only and may not be HDMI compliant. 3.9.14 Display Connector J2300 Figure 20 51-Pin Display Connector...
  • Page 32 This board allows users to interface with the development kit via the LCD that comes preinstalled on the display board. The following figure illustrates the interfacing connectors on the display board. Note: The display board comes as an additional add-on to the Open-Q 2100 Development Kit. To purchase this, please visit http://shop.intrinsyc.com or contact Intrinsyc at sales@intrinsyc.com...
  • Page 33 J400 on the display board needs to connect to J2300 on the carrier board for this configuration to work. J400 51 pin flex cable J2300 Display Board Carrier board Figure 22 Display Board Default Configuration Copyright Intrinsyc Technologies Corporation...
  • Page 34: Camera Connector J2500

    • Contact sales@intrinsyc.com for more information Note: The display above when mounted on the Intrinsyc Open-Q Display Adapter is meant to work with the carrier board. Altering the use of this LCD panel is not recommended. 3.9.15 Camera Connector J2500 The Open-Q 2100 Development Kit supports one 2-lane MIPI CSI camera interfaces via a JAE 41-pin connector.
  • Page 35 Input. MIPI CSI0 data lane 1 Ground 29, 30 Not Connected Ground 32, 33 Not Connected Ground Not Connected 37, 38 SBC_VREG_1P2 Power output. Connected to 1.2V SBC_VREG_1P2. Default use is for camera DVDD. Ground Ground Not Connected Copyright Intrinsyc Technologies Corporation...
  • Page 36: Usb 2.0 Client Port J2800

    J2900 and J2901 allow the development kit to communicate as a High-speed host. These are dual stacked USB2.0 Type-A connectors. Make sure USB client port (J2800) is not in use when USB 2.0 host interface is active. The USB host ports/ Ethernet and USB client port are mutually exclusive. Copyright Intrinsyc Technologies Corporation...
  • Page 37: Coin Cell Battery Holder

    3.9.18 Coin cell battery holder Figure 26 B1300 Coin cell holder B1300 coin cell holder allows user to use ML614 Coin cell (Not shipped with the Open-Q 2100 Development kit) for supplying power to the SOM VCOIN power input. 3.9.19 FM connector J1801 Pin 1 (Antenna input) Pin 2.
  • Page 38: Ethernet Connector J2801

    Pin 1. Figure 30 J202 Power probe connector J202 (Power probe connector) provides method of measuring power consumption of Open-Q 2100 SOM. The 0.01R sense resistor is placed in series on the VPH_PWR rail to provide method of current consumption measurement. The pin configuration of three pin header is given in the table below: Table 3.9-10 Power probe J202 Pin out...
  • Page 39: Gnss External Antenna Connector J3501

    3.9.23 GNSS external antenna connector J3501 Figure 31 J3501 GNSS external antenna connector The Open-Q 2100 carrier board has both PCB antenna and external antenna connector (SMA). User can switch between PCB antenna and external antenna by using DIP switch S3500. The configuration of the DIP switch is given in the table below.
