3.8.14 External and on-Board PCB GPS Antenna

The Open-Q 820 / 820Pro µSOM carrier board allows user the flexibility of using an
external (via SMA connector) or an on-board PCB GPS antenna. Depending on which
antenna is used, dip switch S10 needs to be configured (see table below for details).
GPS Antenna Selection
On Board PCB Antenna
External Antenna (Supports Both Active
and Passive Antenna)
If an external GPS antenna is preferred, Intrinsyc recommends the Laird Technologies
hepta-band dipole antenna (manufacture part number: MAF94300). It is important to note
that GPS should be used or tested near a window or a location where satellites are easily
"seen" by the device.

3.8.15 Open-Q Display

The display output options for the Open-Q 820 / 820Pro µSOM Development Kit consists
of:
• An HDMI type A connector
o HDMI 2.0 (4K60) or 4K30 Miracast
• A 100-pin display connector J2 that supports:
ANT1
ANT2

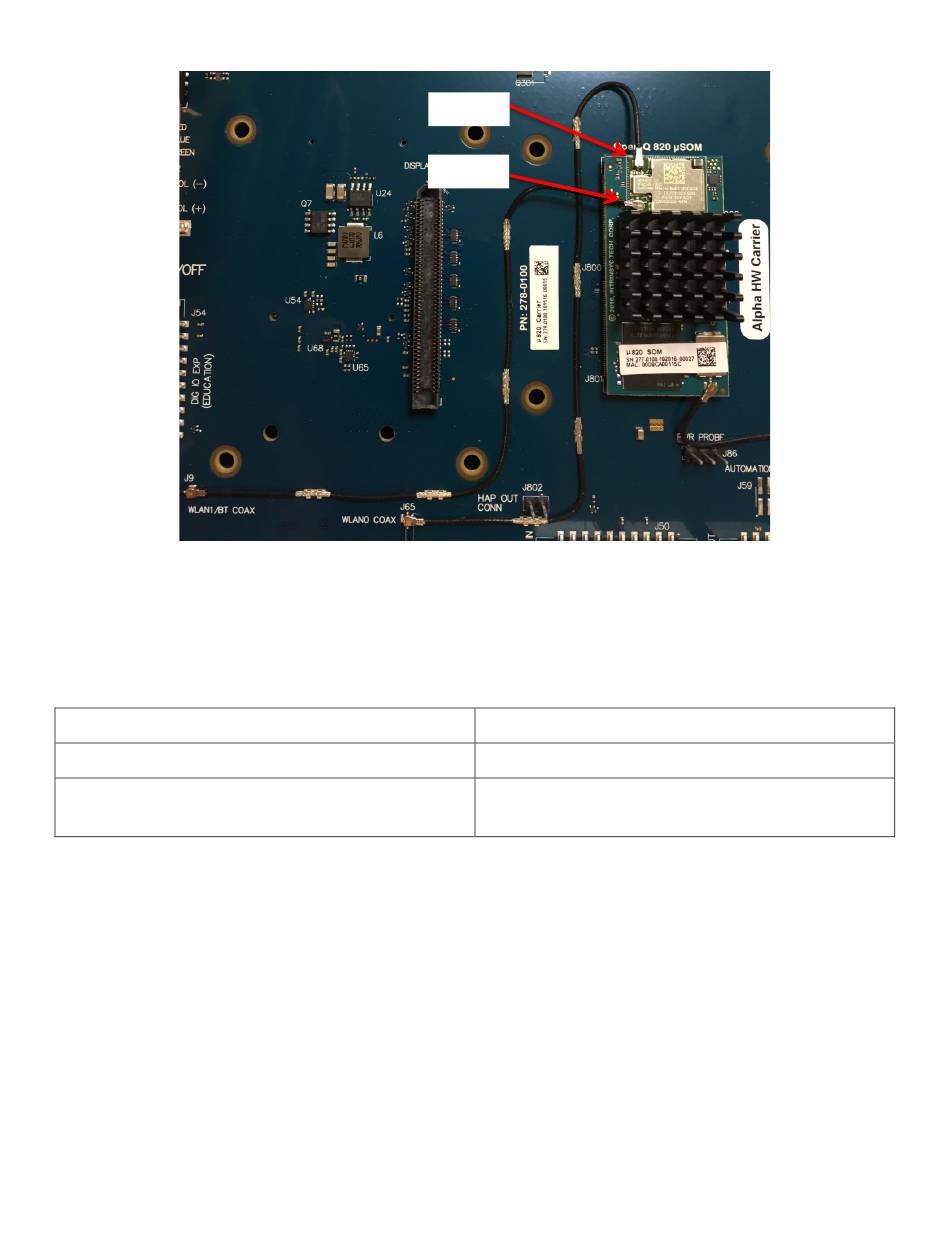

Figure 16 On Board PCB Antennas
Dip Switch S10 (Position 8) Selection
Off Position
On Position
