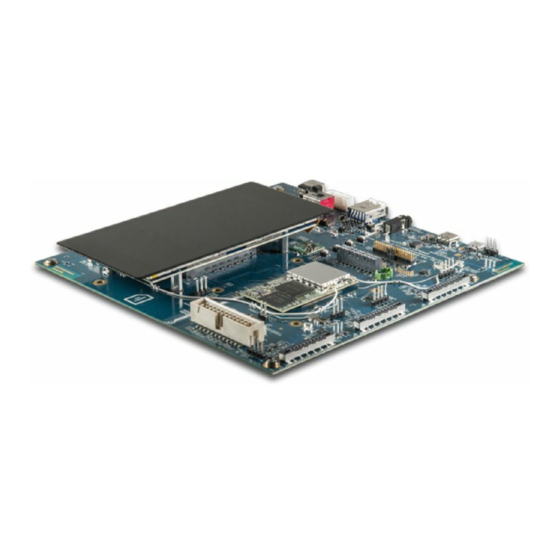

Intrinsyc Lantronix Open-Q 865XR SOM Quick Start Manual

Package Contents
1. Open‐Q™ 865XR SOM with SXR2130P processor
2. Open‐Q™ 865XR SOM Carrier Board
3. AC Power Adapter
4. LCD/Touchpanel (Op onal)
1. 12V DC power jack 23. SOM current sense header
2. Power source switch (DC/Ba ) 24. Micro SD socket*
3. Ba ery connector 25. Open‐Q™ LCD Touch Panel (op onal)
4. USB 3.0 Type‐A Connector 26. WLAN Channel 1 Antenna (PCB trace)
5. Power bu on 27. Digital I/O connector
6. Volume + 28. SIM Card connector*
7. Volume ‐ / Reset bu on 29. Audio Output expansion header
8. General Purpose Bu on 30. M.2 PCIe Socket (B‐key) *
9. Audio Headset Jack 31. Audio Input expansion header
10. USB 3.0 Type‐C connector 32. WLAN Channel 1 U.FL Antenna Con‐
11. USB debug UART Micro B
33. WLAN/BT Channel 0 U.FL Antenna
12. Debug UART Header
13. WLAN/BT Channel 0 Antenna (PCB
34. SXR2130P CPU
trace)
35. Open‐Q 865XR System on Module
14. Audio I/O expansion header
15. MIPI Camera 3 Connector
16. Coin Cell Ba ery Holder
* On Bo om side
17. Power Header
18. MIPI Camera 2 Connector
19. VPH_PWR current sense header
20. MIPI Camera 1 Connector
21. Sensor expansion header
22. System configura on switches
Specifications are subject to change - 895-0040-00
Your use of this document is subject to and governed by those terms and conditions in the LICENSE AND PURCHASE TERMS AND CONDITIONS FOR INTRINSYC DEVELOPMENT PLATFORM KITS, which you or the legal entity you represent, as the case may be, accept-
ed and agreed to when purchasing a Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of
the Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Technologies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion. Lantronix is a
trademark of Lantronix, Inc., registered in the United States and other countries. Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm® is a trademark of Qualcomm® Incorporated, registered in the United States and other
countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners. Qualcomm SXR2130P is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
™
Open-Q
31
30
29
nector
Connector
28
(SOM)
27
Rev. A
865XR SOM Development Kit
Quick Start Guide
1 2 3
26 25 24
4 10
9
8
5
6
7
34
35
22
23
11 12
13
14
15
16
17
33
32
18
19
20
21
