3.8.26 USB 3.0 Interface Operation

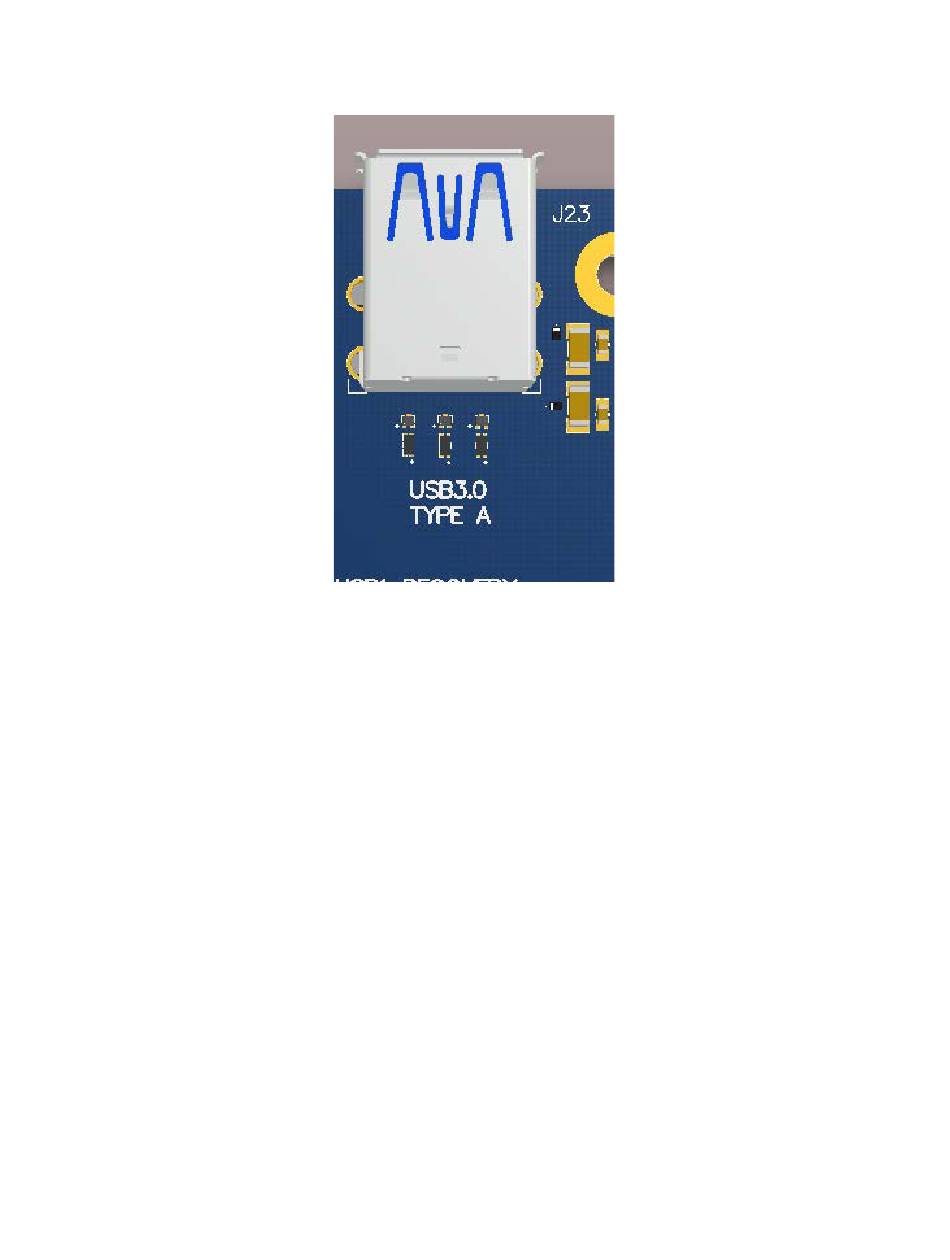

Figure 31 J23 USB3.0 Host Ports

J23 allows the development kit to communicate as a SuperSpeed host. This is a dual stacked

USB3.0 Type-A connector. To access these ports, the switch S1 position 2 needs to be set to the

off position.

Two additional USB3.0 SuperSpeed ports are located on header J2600. This header allows an end

user to design their own daughter card with additional USB ports. In addition to that, this header can

be used with the Akasa dual USB3.0 PCI slow connector with 19-pin connector (P/N# AK-CBUB17-

40BK).

Note that this header only consists of 19 pins.

Similar to the connector J23, switch S1 position 2 needs to be set to the off position.
