Open-Q™ 820 (APQ8096) / 820Pro (APQ8096SG) µSOM Development Kit User Guide Version 1.4
Power Rail
3.3 V ± 9%
12 V ± 8%
3.3 Vaux ± 9%
• PCIe card Mechanical Specifications:
o Card length:
 Half card: 6.6" (167.65mm)
 Full size card: > 7.0" (177.8mm) (This will not support mini ITX)
o Card height:
 Standard: 4.2" (106.7mm)
 Low profile: 2.536" (64.4mm)

3.8.19 Mini PCI Express Connector J72

The Open-Q 820 / 820Pro µSOM development kit also supports the use of a PCI Express
mini card. The primary difference between a PCI Express 1X card and a PCI Express mini
card is the unique form factor optimized for mobile computing platforms. In addition to that,
the mini card is optimized for communication applications. Similarly, the PCI Express mini
card allows for external peripheral connectivity such as Ethernet and wireless connectivity
as well as acting like a modem.
The Mini PCI Express connector J72 used on the Open-Q 820 / 820Pro µSOM
development kit supports both the standard full and half size PCI Express mini card.
Depending on the size of card used, user can utilize the 4 mounting holes below connector
J72 to secure the card in place. The figure below depicts these mounting holes. Please
check the software compatibility before connecting any PCI Express mini cards.
Note: The pin-outs of this connector comply with the PCI Express mini card standards.
Please refer to the document in the following link for more information:
https://www.pcisig.com/specifications/pciexpress/base/#mini1.2
Low Power
3 A Max
0.5 A Max
375mA Max

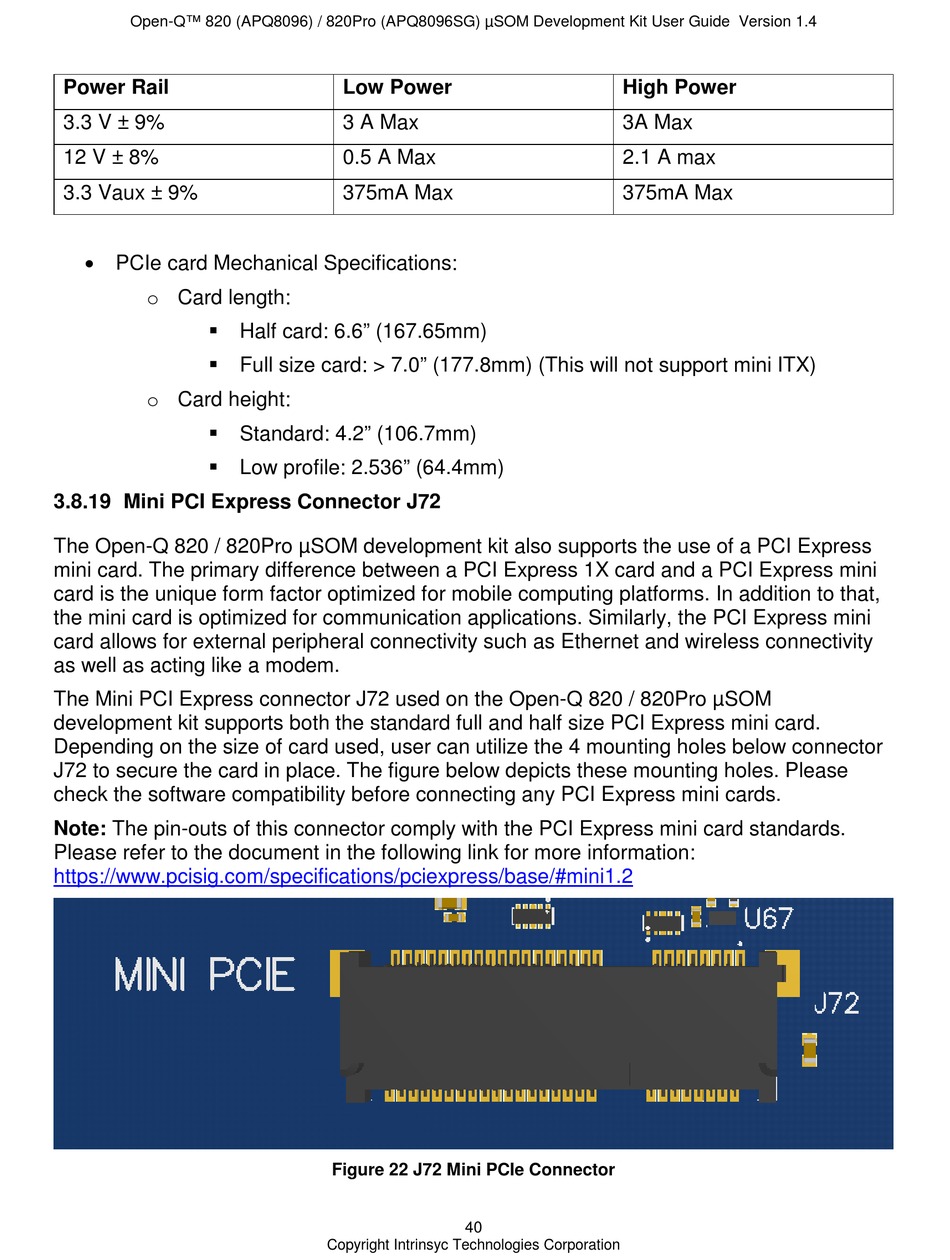

Figure 22 J72 Mini PCIe Connector
40
Copyright Intrinsyc Technologies Corporation
High Power
3A Max
2.1 A max
375mA Max
