Open-Q™ 820 (APQ8096) / 820Pro (APQ8096SG) µSOM Development Kit User Guide Version 1.4
carrier board. To ensure the µSOM is getting powered correctly, user can monitor the current
going into the µSOM via the power probe header J86 (see section below).
The µSOM consists of 2 PMIC modules. Functionalities of the 2 modules are outlined
below.
PMI8996 PMIC is used for:
• Source various regulated power rails
• Battery charging. Please see section below for additional information on battery
support.
• Please note that support for battery charging over external charger is not
implemented in the design. Please contact Intrinsyc for such customization.
PM8996 PMIC is used for:
• Source various regulated power rails
• Source system clock

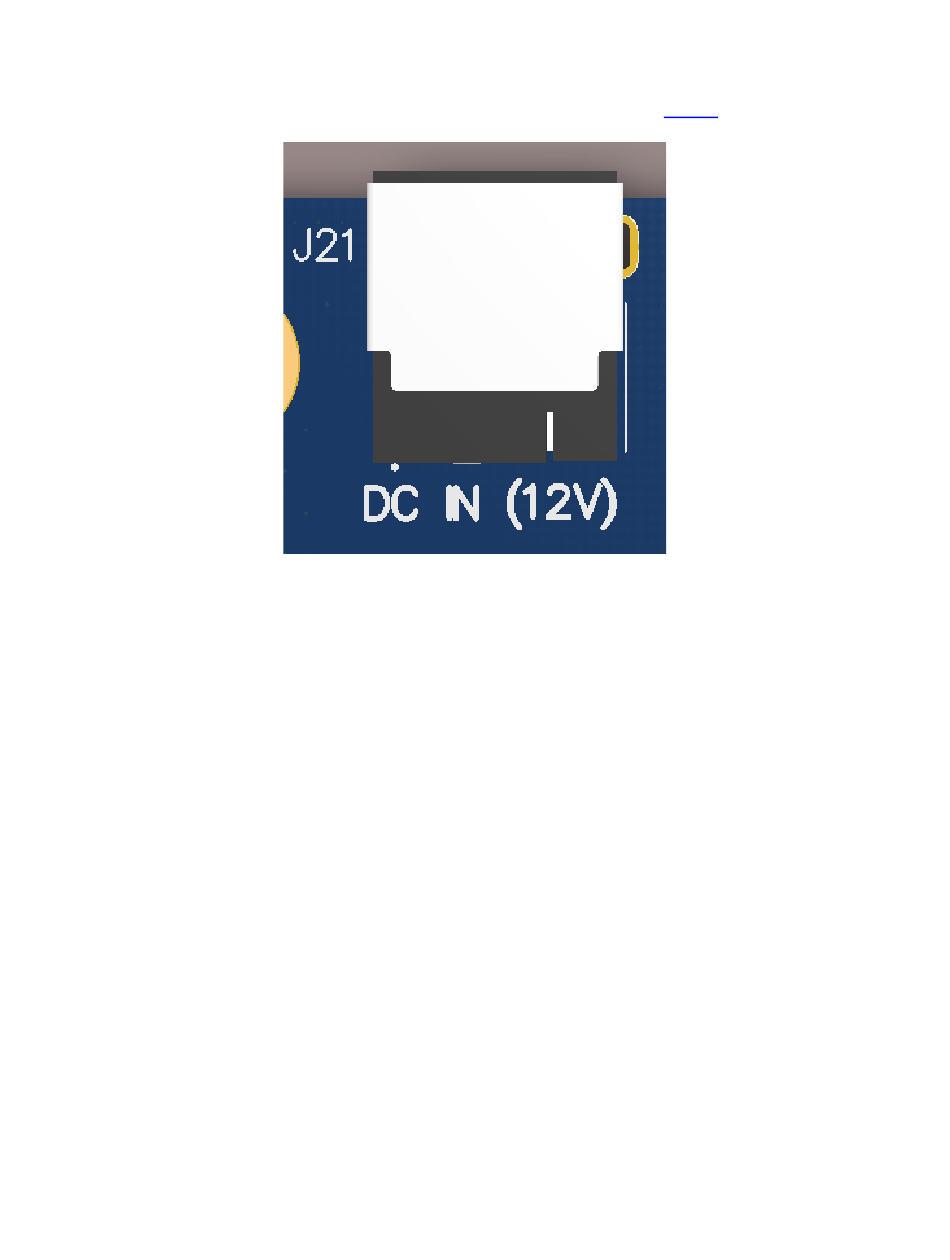

Figure 5 J21 12V DC Power Jack
