Intrinsyc Open-Q 835 uSOM Quick Start Manual

Package Contents
1. Open-Q™ 835 µSOM with APQ8098 processor

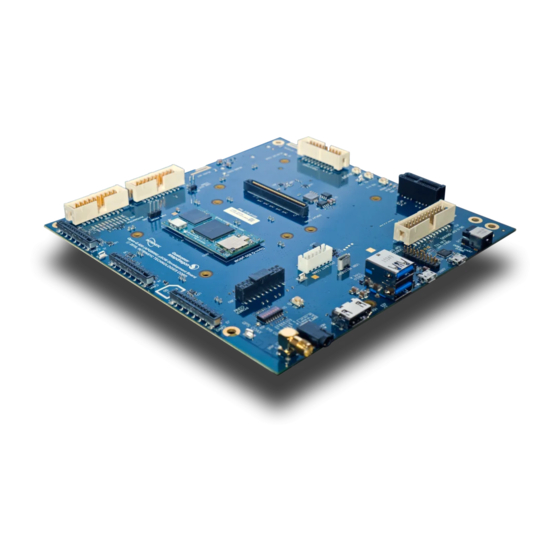

2. Open-Q™ 835 µSOM Carrier board
3. AC Power Adapter
4. HDMI Video Cable
5. 4.5" FWVGA MIPI DSI LCD/touchscreen (optional accessory)
1. WLAN/BT PCB Antenna 24. Audio Out Expansion Header
25. SOM power measurement
2. Misc interface header (GPIO)
3. Power button
26. Power and Charging LEDs
4. Volume + button
27. Audio In Expansion Header
5. Volume - button
28. Haptic output header
6. User LEDs (red, blue green)
29. WLAN PCB Antenna
7. PCIe 1X Slot
30. MIPI DSI LCD/touchscreen
8. Sensor expansion header
9. 12V DC input jack
10. Debug UART (USB MicroB)
31. UFS flash memory
11. USB Type-C connector
32. APQ8098 CPU with PoP RAM
12. Battery charge config switch
33. Wi-Fi RF section under shield
13. SOM Power voltage adjust
34. WLAN antenna connector 1 U.FL
14. Battery connector
35. WLAN antenna connector 2 U.FL
15. Power source switch
36. Open-Q 835 µSOM
16. HDMI video output
17. Power header
18. 3.5 mm headset jack
19. Configuration DIP switches
20. MIPI camera 2 connector
21. Micro SD slot (on bottom)
22. MIPI camera 1 connector
23. MIPI camera 0 connector
Your use of this document is subject to and governed by those terms and conditions (https://www.intrinsyc.com/legal-terms/qualcomm-terms.html) in the Intrinsyc Purchase and Software License Agreement for the Open-Q™ 835 uSOM Development Kit based on the Qualcomm® Snapdrag-
on™ 835 Processor (APQ8098), which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q™ 835 uSOM Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered
part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of the Open-Q™ 835 uSOM Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Tech-
nologies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion.
Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries.
™
Open-Q 835 uSOM (APQ8098)
Development Kit
30
header
29
28
connector to interface with
Intrinsyc display adapter
27
26
25
24
Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
1 2 3 4
31 32
23 22
5 6
7
8
36
33
35 34
21 20
9
10
11
12
13
14
15
16
17
18
19
