Intrinsyc Open-Q 410 Quick Start Manual

Qualcomm
Package Contents
1. Open-Q™ 410 SOM with APQ8016 and 1GB LPDDR3 RAM
2. Carrier board 13 x 13 cm
3. AC Power Adapter
4. HDMI cable
5. 5MP camera
6. 4.46" FWVGA MIPI DSI LCD/Touch (optional)
1. 12V DC Jack 13. Volume down button
2. Headset 14. Volume up button
3. Line in 15. Power button
4. HDMI out on HDMI 16. Power and user de-
adaptor board fined LEDs
17. Camera module con-
5. USB client micro B
nector (CSI1) 2-lane
6. 2 x USB host
18. Camera module con-
7. USB host switch
nector (CSI0) 4-lane
8. Debug UART
19. WLAN/BT antenna
9. UART LED
20. Speaker out
10. Micro SD slot *
21. Digital audio expan-
11. Sensor and IoT
sion connector *
expansion connector
22. Earpiece audio out
12. Boot settings
23
Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase and Software License Agreement for the based on the Open-Q™ 410 Development Kit based on the Qualcomm® Snapdragon™ 410 processor, which you or the legal entity you repre-
sent, as the case may be, accepted and agreed to when purchasing an Open-Q™ 410 Development Kit based on the Qualcomm® Snapdragon™ 410 processor from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part of the defined term
"Documentation" for purposes of the Agreement, solely in support of your permitted use of the Open-Q™ 410 Development Kit based on the Qualcomm® Snapdragon™ 410 processor under the Agreement. Distribution of this document is strictly prohibited without the express written
permission of Intrinsyc Technologies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion.
Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries.
™
Open-Q 410 Development Kit based on the
®
Snapdragon
Quick Start Guide
23. 8GB eMMC/1GB
LDDR3 RAM combo
24. Snapdragon APQ8016
processor
25. WLAN/BT antenna
connector (U.FL)
26. GPS antenna
connector (U.FL)
27. WLAN WCN3620
and WGR7640 GPS *

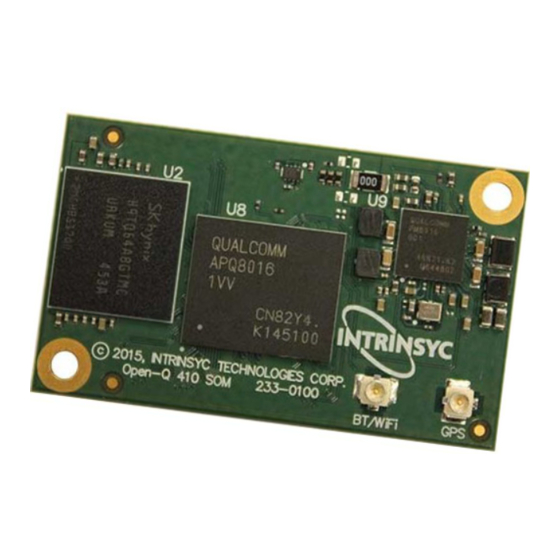

28. Open-Q 410 SOM
* on bottom side
28
27
24 25 26
™
410 processor (APQ8016)
1 2
22
21
20
19
18
3 4 5
17 15
16
6
7
8
9
10
11
13 12
14
