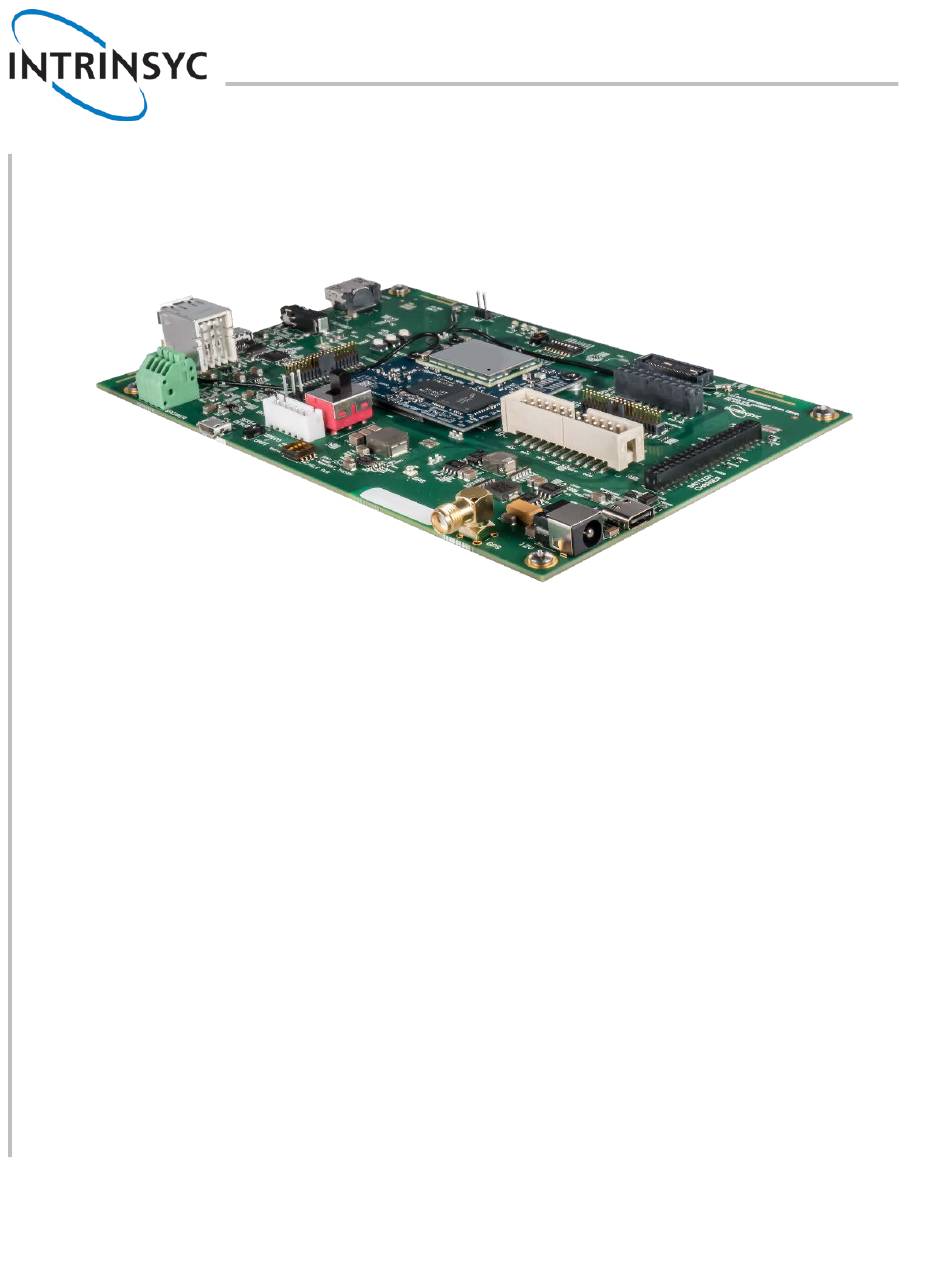

Open-Q™ 212A Development Kit
User Guide
[Document: ITC-01RND1324-UG-001 Version: 1.0]
Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase an Open-Q 212A Development Kit Based
on Snapdragon 212 Series (APQ8009) Processor and Software License Agreement for the Open-Q 212A Development Kit, which you or the legal entity
you represent, as the case may be, accepted and agreed to when purchasing an Open-Q Development Kit from Intrinsyc Technologies Corporation
("Agreement").
You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement,
solely in support of your permitted use of the Open-Q 212A Development Kit under the Agreement. Distribution of this document is strictly prohibited
without the express written permission of Intrinsyc Technologies Corporation and its respective licensors, which they can withhold, condition or delay
in its sole discretion.
Intrinsyc is a trademark of Intrinsyc Technologies Corporation., registered in Canada and other countries.
Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Other product and brand
names used herein may be trademarks or registered trademarks of their respective owners.
This document contains technical data that may be subject to U.S. and international export, re-export, or transfer ("export") laws. Diversion contrary to
U.S. and international law is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Open-Q 212A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intrinsyc Open-Q 212A

  • Page 1 [Document: ITC-01RND1324-UG-001 Version: 1.0] Your use of this document is subject to and governed by those terms and conditions in the Intrinsyc Purchase an Open-Q 212A Development Kit Based on Snapdragon 212 Series (APQ8009) Processor and Software License Agreement for the Open-Q 212A Development Kit, which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q Development Kit from Intrinsyc Technologies Corporation (“Agreement”).
  • Page 2 Open-Q™ 212A Development Kit User Guide Version 1.0 IDENTIFICATION Document Title Open-Q™ 212A Development Kit User Guide Document Number ITC-01RND1324-UG-001 Version Date May 21, 2019 History REVISION DATE DESCRIPTION PAGES May 21, 2019 Initial Release Copyright Intrinsyc Technologies Corporation...
  • Page 3: Table Of Contents

    Reference Documents ................. 5 Terms and Acronyms .................. 5 List of Figures ..................... 7 List of Tables ....................7 OPEN-Q 212A DEVELOPMENT KIT ........... 9 Introduction ....................9 Development Platform Notice ..............9 Anti-Static Handling Procedures ..............9 Kit Contents ....................9 Getting Started ..................
  • Page 4 USB 2.0 Type-A Ports – J2900 ................33 3.8.26 WSA8815 Speaker Amplifiers Out – J2100 ............33 3.8.27 DMICs ........................34 3.8.28 DMIC/UART DEMUX Switch – S1700 ..............34 Accessories ....................35 3.9.1 Camera Module Accessory ..................35 Copyright Intrinsyc Technologies Corporation...
  • Page 5: Introduction

    • Block Diagram and Overview • Hardware Features • Configuration • SOM • Carrier Board • Accessories 1.3 Intended Audience This document is intended for users who would like to develop custom applications on the Intrinsyc Open-Q 212A Development Kit. Copyright Intrinsyc Technologies Corporation...
  • Page 6: Documents

    Open-Q™ 212A Development Kit User Guide Version 1.0 2. DOCUMENTS This section lists the supplementary documents for the Open-Q 212A development kit. 2.1 Applicable Documents REFERENCE TITLE Intrinsyc Purchase and Software License Agreement for the Open-Q Development 2.2 Reference Documents...
  • Page 7 Single wire serial bus interface (Qualcomm SSBI proprietary mostly PMIC / Companion chip and baseband processor protocol) UART Universal Asynchronous Receiver Transmitter Universal Flash Storage User Identity module Universal Serial Bus USB HS USB High Speed USB SS USB Super Speed Copyright Intrinsyc Technologies Corporation...
  • Page 8: List Of Figures

    Open-Q™ 212A Development Kit User Guide Version 1.0 2.4 List of Figures Figure 1 Assembled Open-Q 212A Development Kit ................ 10 Figure 2 Open-Q 212A Platform Block Diagram ................12 Figure 3 Open-Q 212A SOM ......................13 Figure 4 12V DC Power Jack (J21) ....................16 Figure 5 SOM Power Source Switch (S300), Up position shown ............
  • Page 9 Table 19 Buttons Function description (S100, S101, S102) ............... 31 Table 20 Indicator LEDs (DS1, DS2, DS3, DS2320) ................. 32 Table 21 WSA8815 Speaker AMP Out Connector (J2100) ............... 34 Table 22 DMICs details ........................34 Copyright Intrinsyc Technologies Corporation...
  • Page 10: Open-Q 212A Development Kit

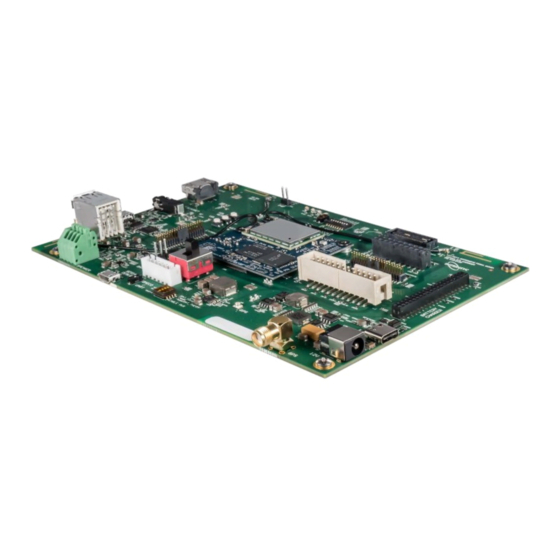

    3. OPEN-Q 212A DEVELOPMENT KIT 3.1 Introduction The Open-Q 212A provides a reference and evaluation platform for the Qualcomm Snapdragon 212 processor. This kit is suited for Linux Home Hub OS testing to evaluate, optimize, and deploy applications that utilize the Qualcomm Snapdragon 212 series SOC technology.
  • Page 11: Getting Started

    Please contact Intrinsyc for availability of display adaptors, camera modules, sensor boards, and other accessories: sales@intrinsyc.com 3.5 Getting Started This section explains how to setup the Open-Q 212A Development Kit and start using it. 3.5.1 Registration To register the development kit and gain access to the Intrinsyc support site, please visit: http://support.intrinsyc.com/account/register To proceed with registration, the development kit serial number is required.
  • Page 12: Powering Up The Development Kit

    ON button (26) for a few seconds until the blue LED starts blinking to indicate the board is booting up. 4. Once the board is booted up you can log into the console with the following username and password: • Username: root • Password: oelinux123 Copyright Intrinsyc Technologies Corporation...
  • Page 13: Development Kit Block Diagram

    Open-Q™ 212A Development Kit User Guide Version 1.0 3.6 Development Kit Block Diagram The following diagram explains the interconnectivity and peripherals on the Open-Q 212A development platform. Note that not all HW features shown here may be supported by current SW.
  • Page 14: Open-Q 212A Som

    Open-Q™ 212A Development Kit User Guide Version 1.0 3.7 Open-Q 212A SOM The Open-Q 212A SOM measuring in 50mm x 46.5mm is where all the processing occurs. It is connected to the carrier via three 100-pins board to board (B2B) connectors.
  • Page 15: Som Rf Interfaces For Wi-Fi And Bluetooth Antennas

    For more information about connecting a GPS antenna to the development kit see section 3.8.15Error! Reference source not found. below. Note that the GNSS receiver may not be supported by all SW versions. Please refer to the latest SW Release Notes document to confirm support. Copyright Intrinsyc Technologies Corporation...
  • Page 16: Open-Q 212A Carrier Board

    Open-Q™ 212A Development Kit User Guide Version 1.0 3.8 Open-Q 212A Carrier Board The Open-Q™ 212A Carrier board measures 17cm x 11.5cm and has various connectors for different peripherals. Table 2 Open-Q 212A Carrier Board Features Feature Specification • Audio 6x Digital Mics via expansion Board •...
  • Page 17: Dc Jack - J21

    See table below for selecting the correct power source for the SOM. Table 4 Power Source Selection Switch location Up (Illustrated in figure below) Down SOM power source 12V DC Battery (through battery connector J300) Copyright Intrinsyc Technologies Corporation...
  • Page 18: Battery Connector - J300

    Figure 5 SOM Power Source Switch (S300), Up position shown 3.8.4 Battery Connector – J300 J300 allows user to connect a single-cell rechargeable Lithium battery pack to power the development kit. Figure 6 Battery Connector (J300) Table 5 Battery Connector (J300) Specification Manufacturer Copyright Intrinsyc Technologies Corporation...
  • Page 19: Battery Dip Switch - S1

    Set this switch to ON when ON (Default): Uses the 10k resistor using a battery that does (R197) on the carrier board to not have a built-in simulate battery thermistor presents thermistor. OFF: Use battery’s thermistor Copyright Intrinsyc Technologies Corporation...
  • Page 20: External Battery-Charger Header - J26

    BAT_ID PMI_CHG_EN 212A APQ GPIO_66 Default: SMB_EN Battery Thermistor SMB_PARALLEL_CH BAT_THERM on external G_EN charger for parallel charging PM8916-1 PM_VREF_BATT_TH SMB_INT APQ GPIO_95 VREF_BAT_THM SMB_STAT_N APQ GPIO_71 Not available on 212A PMI_GPIO_1 FG_ALARM APQ GPIO_17 BATT_CHG_EXP_TP2 Copyright Intrinsyc Technologies Corporation...
  • Page 21: Power Probe Header - J86

    0.005Ω sense resistor (R140) and calculate the current consumed. Pinout of J86 is provided in below. Figure 9 J86 Power Probe Header Table 9 Power Header J86 Pin out Pin # Description Signal SOM power positive current sense line SOM_PWR_SENSE_P Copyright Intrinsyc Technologies Corporation...
  • Page 22: Power Header - J60

    VREG_L17 LDO (U6) MB_ELDO_CAM1_V CAM1 VCM LDO (U10) output PMI8916-1 3V3 Rail MB_VREG_3P3 VREG_L4_1P8 VREG_L4 PMI8916-1 VREG_L10_2P85 VREG_L10 PMI8916-1 VREG_L11_SDC VREG_L11 PMI8916-1 3V3 Rail MB_VREG_3P3 VREG_L4_1P8 VREG_L4 12V from J300 DC_IN_12V MB_VREG_5P0 5V LDO (U1) output Copyright Intrinsyc Technologies Corporation...
  • Page 23: Debug Serial Uart - J22

    DIP Switch S10 Position 8 ‘FORCE_SW_UART’ = OFF/OPEN Serial Port Settings: Baud Rate: 115200 Data: 8 bits Parity: None Stop:1 bit Flow Control: None 3.8.10 Sensor IO Expansion Header – J53 Figure 12 J53 Sensor Expansion Header Copyright Intrinsyc Technologies Corporation...
  • Page 24: Headset Audio Jack - J27

    J27 is a standard 3.5mm TRRS jack in CTIA pinout order with headset detection support. Signals are routed to Audio CODEC WCD9326 on the SOM. This function is not supported in BSP V1.0 and maybe supported in the future BSP. Copyright Intrinsyc Technologies Corporation...
  • Page 25: Audio Input Expansion Header - J50

    See Section 3.8.27 CDC_MIC2_N CDC_DMIC1_CLK CDC_DMIC1_DATA CDC_MIC3_P CDC_MIC3_N CDC_DMIC2_CLK CDC_MIC4_P CDC_DMIC2_DATA CDC_MIC4_N CDC_DMIC3_CLK Not Available on the 212A dev. kit CDC_DMIC3_DATA Not Available on the 212A dev. kit CDC_MIC_BIAS1 CDC_MIC_BIAS2 PMI_GPIO_1 Not Available on the 212A dev. kit Copyright Intrinsyc Technologies Corporation...
  • Page 26: External Codec/Gpio Expansion Header - J1

    212A dev. kit Can be configured as APQ GPIO_93 by installing R2111 on CB MI2S_1_D2 Not Available on the 212A dev. kit Can be configured as APQ GPIO_93 by installing R2122 on CB APQ GPIO 98 WCD_INT Copyright Intrinsyc Technologies Corporation...
  • Page 27: On Board Pcb Wlan And Bt Antennas

    These antennas connect to the SOM in the following configuration: Table 14 Wi-Fi and Bluetooth Antennas Connectors Antenna (on carrier) Connector (on carrier) Connector (QCA9379 Wi-Fi Module on SOM) WLAN ANT1 (E7) ANT0 WLAN ANT2 (E6) ANT1 BT ANT (E5) Copyright Intrinsyc Technologies Corporation...
  • Page 28: Gnss Pcb Antenna And External Antenna Connections

    Figure 16 WLAN Module Antenna Connections 3.8.15 GNSS PCB Antenna and External Antenna Connections The Open-Q 212A SOM supports GNSS function by using the Qualcomm WGR7640 GNSS Receiver. User can select either the PCB antenna on the carrier board (E4) or the external antenna connection (J41) to receive GNSS signal by toggling S10 position 1.
  • Page 29: Display Connector - J2

    3.8.18 Camera Connector – J5 J5 allows the Open-Q 212A development kit to connect to a MIPI CSI camera module. Pinout of this connector are given below. Please note that only the J5 camera port is supported on the Open-Q 212A platform.
  • Page 30 CAM1_RST_N CAM1_STANDBY_N GPIO_30_CCI_I2C_SCL0 GPIO_29_CCI_I2C_SDA0 CAM_MCLK0 CAM0_FLASH_TRIG MIPI_CSI0_LANE0_N MIPI_CSI0_LANE0_P MIPI_CSI0_CLK_N MIPI_CSI0_CLK_P MIPI_CSI0_LANE1_N MIPI_CSI0_LANE1_P MIPI_CSI0_LANE2_N MIPI_CSI0_LANE2_P MIPI_CSI0_LANE3_P This pair’s order is swapped intentionally MIPI_CSI0_LANE3_N GPIO_31_CCI_I2C_SDA1 GPIO_32_CCI_I2C_SCL1 CAM0_IRQ CAM0_MCLK3 Not available CSI0_DVDD CAM0_EXT_PWR MB_VREG_5P0. Not available by default CAM0_EXT_PWR Copyright Intrinsyc Technologies Corporation...
  • Page 31: Automation Connector Header - J3100

    Open-Q™ 212A Development Kit User Guide Version 1.0 3.8.19 Automation Connector Header – J3100 J3100 is used for automating tests on the development platform and is not supported by Intrinsyc for customer use. This header contains certain power rails and system control signals that users can access should they need to.
  • Page 32: Buttons - S100, S101, S102

    Table 19 Buttons Function description (S100, S101, S102) Buttons Function Description S100 Power Button System Power On, Standby S101 Volume Up Increase volume S102 Volume Down / Reset Decrease volume, hold to reset system (FW dependent) Copyright Intrinsyc Technologies Corporation...
  • Page 33: Led Indicators - Ds1, Ds2, Ds3, Ds2320

    Green USB_HUB_ACTIVE from U2800 (USB Hub IC) to indicates hub is active 3.8.23 USB Type C Port – J2500 J2500 is standard USB 3.0 Type-C connector. This connector has no function on the 212A Development Kit. Copyright Intrinsyc Technologies Corporation...
  • Page 34: Usb Micro-B Connector - J2901

    3.8.26 WSA8815 Speaker Amplifiers Out – J2100 J2100 allows users to connect to two speakers in stereo configuration. These outputs are driven by the WSA8815 Audio AMP. on the carrier board and the WCD9326 Audio CODEC on the 212A SOM. Copyright Intrinsyc Technologies Corporation...
  • Page 35: Dmics

    Set Switch S10 position 8 to ON (Closed) Set Switch S1700 to ON (Closed) U1605/U1606 Not Supported on 212A Development kit 3.8.28 DMIC/UART DEMUX Switch – S1700 S1700 controls the DMIC and UART path. See Section 3.8.27. Copyright Intrinsyc Technologies Corporation...
  • Page 36: Accessories

    Open-Q™ 212A Development Kit User Guide Version 1.0 3.9 Accessories 3.9.1 Camera Module Accessory A camera module is available as an optional accessory from the Intrinsyc online store in the Accessories section: https://shop.intrinsyc.com/ The compatible camera accessory is based on the 5MP OmniVision OV5640 sensor with YUV output and interfaces to the development kit through the included 21cm JAE interface cable to connector J5 on the development kit.
