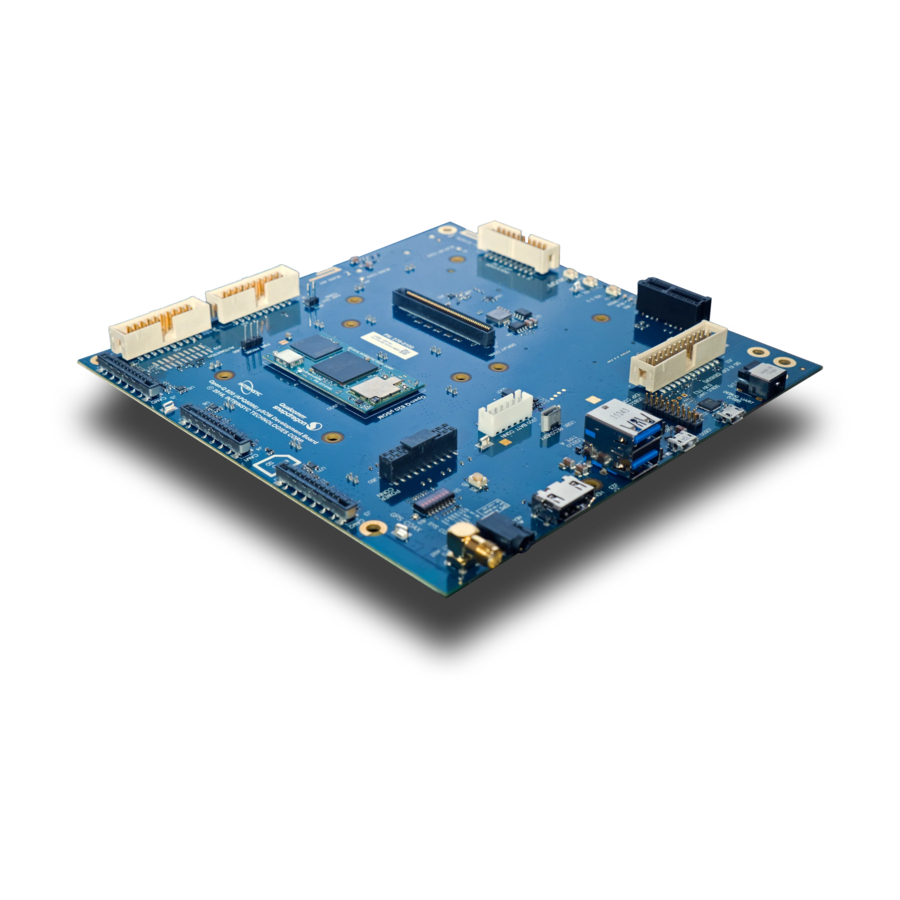

Intrinsyc APQ8096 Quick Start Manual

Open-Q
Package Contents
1. Open-Q™ 820 µSOM with APQ8096 processor
2. Carrier board
3. AC Power Adapter
4. 4.5" FWVGA MIPI DSI LCD/touchscreen (additional accessory)
1. IO Expansion header EDU 24. MIPI camera 1 connector
25. Open-Q µ820 System on Module
2. Mini PCI Express socket *
3. Power button
26. GPS module WGR7640
4. Volume + button
27. 32GB UFS
5. Volume - button
28. 3GB LP-DDR4 RAM Pop memory
6. 3 x LEDs
7. WWAN SIM card slot *
8. PCI Express slot
29. WLAN module QCA6174
9. Sensors header
30. MIPI camera 0 connector
10. 12V DC jack
31. Audio out header
11. USB debug UART Micro B
32. SOM power measurement
12. USB 3.0 Expansion connector
33. Audio in header
13. USB 2.0 OTG Micro AB
34. Haptics output header
14. Dual stacked USB 3.0 type A
35. MIPI DSI LCD/touchscreen
15. Battery connector
16. HDMI out
17. General purpose button
18. Power header
* on bottom side
19. ANC 3.5 mm headset jack
20. GPS ext. ant. SMA connector
21. Boot configuration DIP switches
22. MIPI camera 2 connector
23. Micro SD slot *
Your use of this document is subject to and governed by those terms and conditions, https://www.intrinsyc.com/legal-terms/qualcomm-terms.html, in the Intrinsyc Purchase and Software License Agreement for the Open-Q™ micro 820 Development Kit based on the Qualcomm® Snapdrag-
on™ 820 Processor (APQ8096), which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q™ micro 820 Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part
of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of the Open-Q™ micro 820 Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written per mission of Intrinsyc Technolo-
gies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion.
Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries.
™
µ820 (APQ8096) Development Kit
Quick Start Guide
(SOM)
35
on top of Snapdragon APQ8096
processor
34
header
33
connector to interface with
32
Intrinsyc display adapter
31
1 2 4
3
27 28
26
25
30 24
5 8 9
6 7
29
23 22 21
10
11
12
13
14
15
16
17
18
19
20
