In sum, if sensor application is not needed, this expansion header can provide two full BLSP7
and BLSP5 for UART/ SPI/ I2C/ UIM. Please refer to the schematic and consider the power
before connecting anything to this header.
Note that there is an unpopulated Gen-10 connector header (J55) footprint at the bottom of
the carrier board. Install the Samtec (part number: QSH-030-01-L-D-A) connector here if
needed.

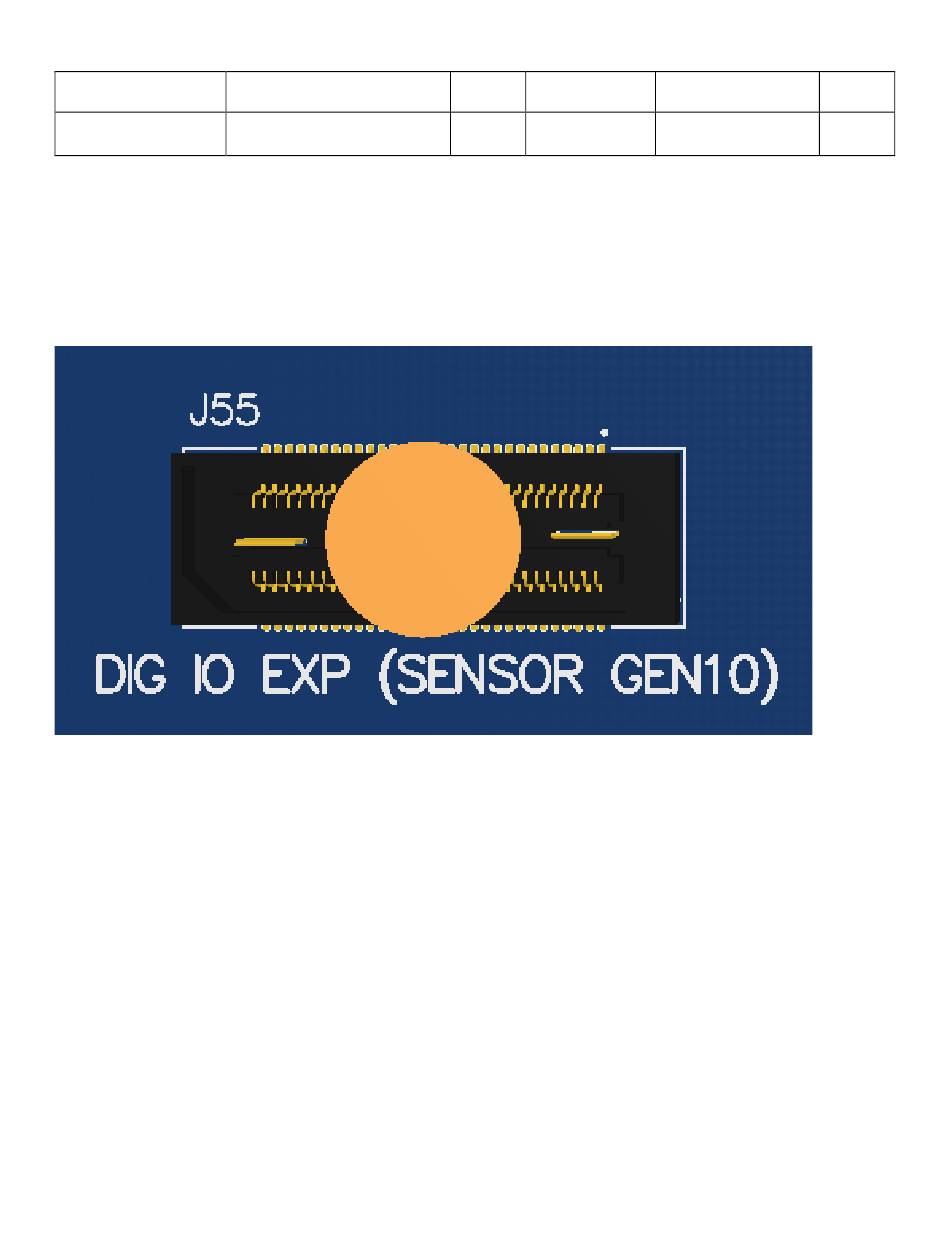

Figure 11 J55 Gen-10 Sensor Connector (Samtec QSH-030 series)
Signal
NC
