Open-Q™ 820 (APQ8096) / 820Pro (APQ8096SG) µSOM Development Kit User Guide Version 1.4
Connecting the Display Board to the Development Kit
This configuration allows the user to use the preinstalled LCD display that comes with the
display adaptor board. As shown in the block diagram below, the MIPI DSI0 lines, which
come from the 100-pin ERM8 connector, directly connects to the LCD panel. See the
section below for more details on this LCD panel. It is important to note that connector J1
on the display board needs to connect to J2 on the carrier board for this configuration to
work.
Display Adaptor
Board
LCD Display
Panel (Top)
DSI0
DSI0
DSI1
J1
ERM8
C
O
N
N
E
C
T
O
R
(Bott)

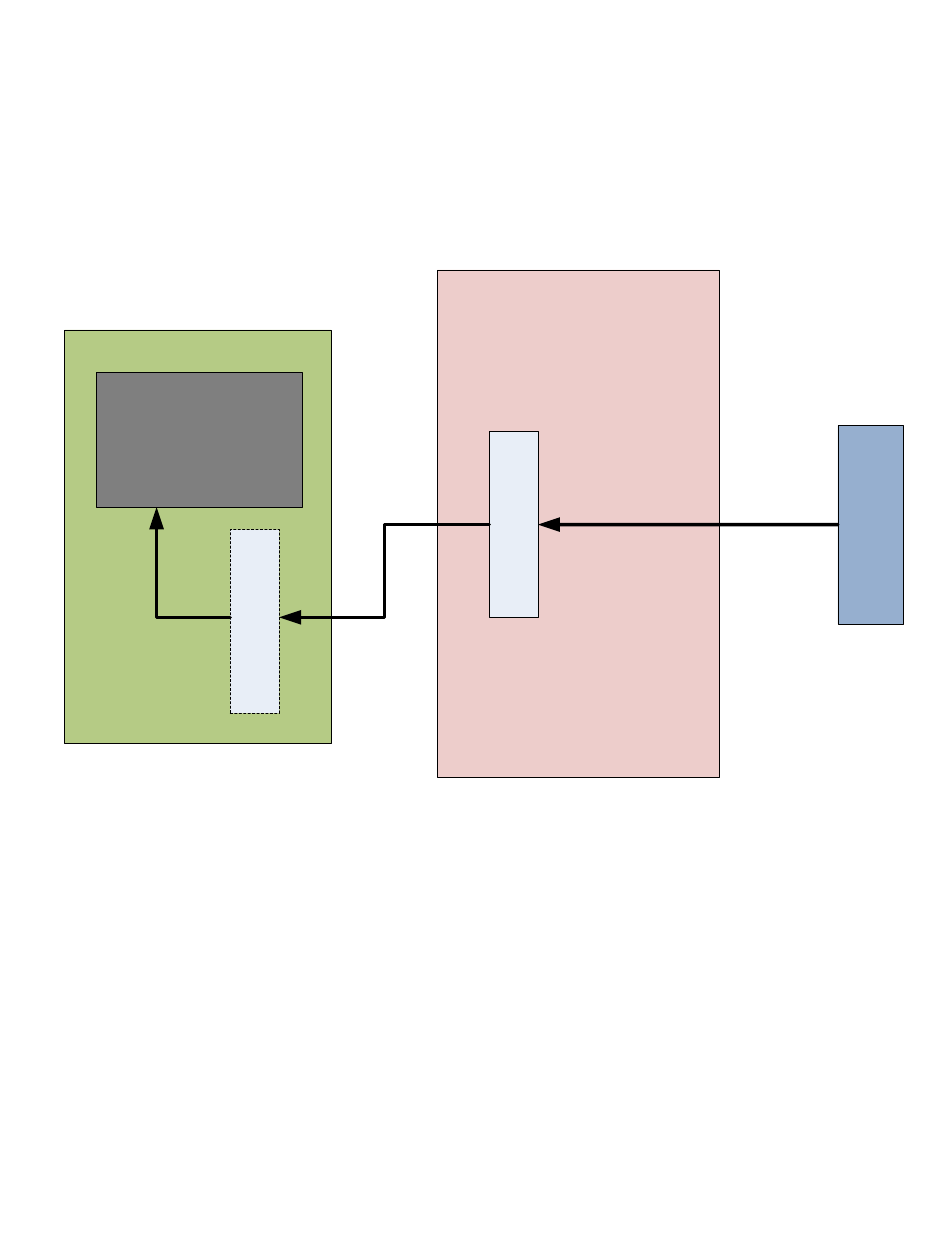

Figure 20 Display Board Default Configuration
Copyright Intrinsyc Technologies Corporation
Carrier Board
J2
ERF8
C
O
N
N
E
C
T
O
R
(Top)
38
DSI0
DSI1 S
O
M
Via MXM Connector
