Display a Side Imaging View On-Screen

There are a variety of views available to display Side Imaging data. You can also customize the view by showing or hiding information
(see Customize the Side Imaging View), and you can adjust the sonar settings to maximize the information displayed on-screen
(see Adjust Settings While you Fish). The changes you make are applied to all Side Imaging views.
Display a Side Imaging View
1. Press and hold the VIEW key.
2. Select Sonar > Side Imaging View.

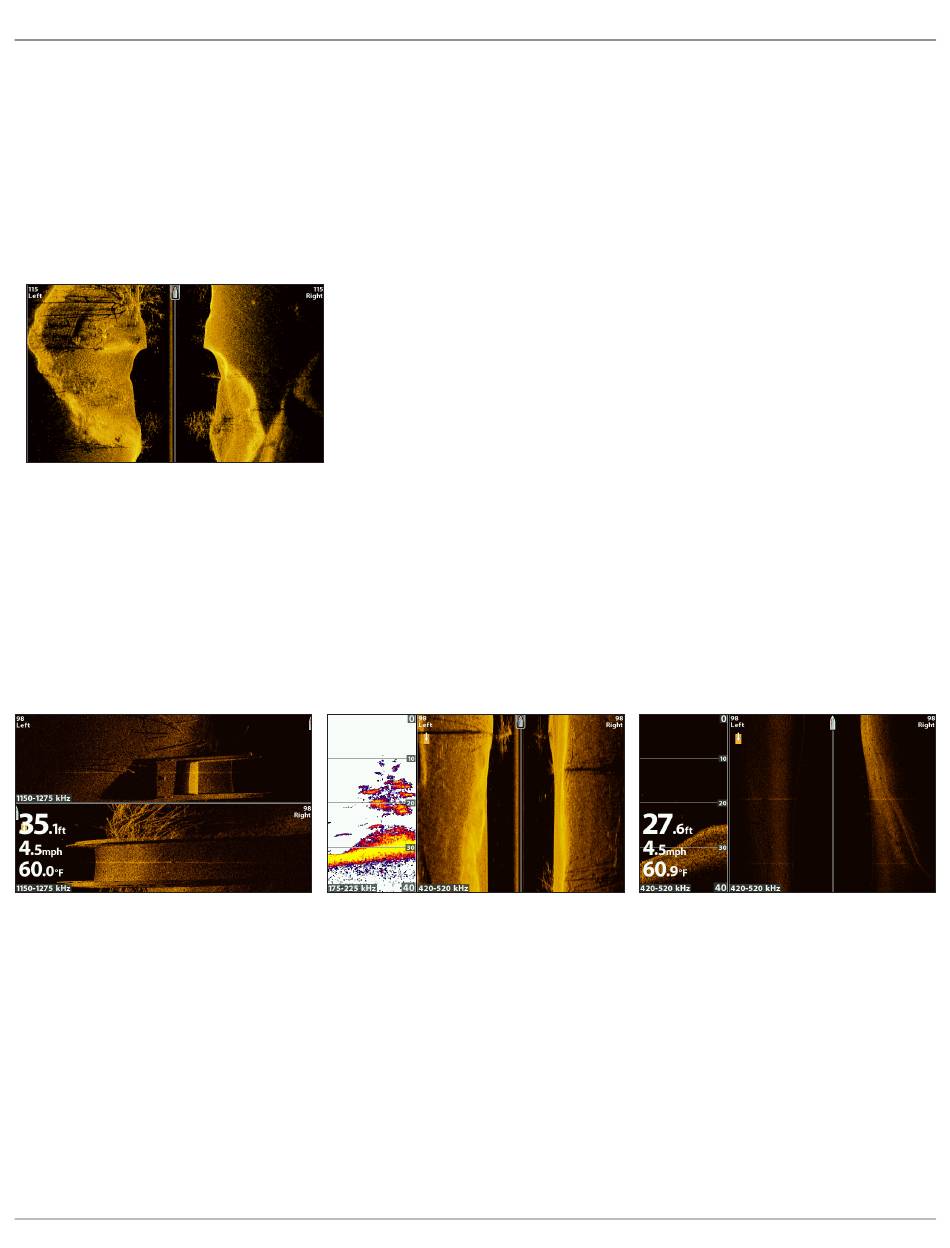

Side Imaging View
Display a Side Imaging Combo View
1. Press and hold the VIEW key.
2. To open a Side Imaging Combo View, select Sonar.
To open a Chart Combo View (Side Imaging and Chart together), select Chart.
3. Select a view to display on-screen. Press the RIGHT Cursor key.
Sonar > Side/Side Combo View
For more information, see
Adjust Settings While you Fish: Display Beams.
(CHIRP SI, CHIRP MEGA SI, CHIRP MEGA SI+ only)
Sonar > Side/Sonar Combo View
For more information, see
the Sonar section.
91
Sonar > Down/Side Combo View
For more information, see
the Down Imaging section.
Side Imaging Sonar
