Customize the Vegetation Display Settings

The Bottom Layer is displayed on top of the AutoChart Live map and can be displayed as bottom hardness or vegetation. Vegetation
shows the sonar returns interpreted as vegetation on the Chart View.
Show/Hide Vegetation
Show Vegetation
1. From the AutoChart menu, select Bottom Layer.
2. Select Visible (LakeMaster) or press the CHECK/INFO key or the RIGHT Cursor key to add a check mark (CoastMaster).
3. Select Bottom Type.
4. Select Vegetation.
bottom
layer set
to Visible
bottom type
Hide Vegetation
1. From the AutoChart Live menu, select Bottom Layer.
2. Select Hidden (LakeMaster) or press the CHECK/INFO key or the RIGHT Cursor key to remove the check mark (CoastMaster).

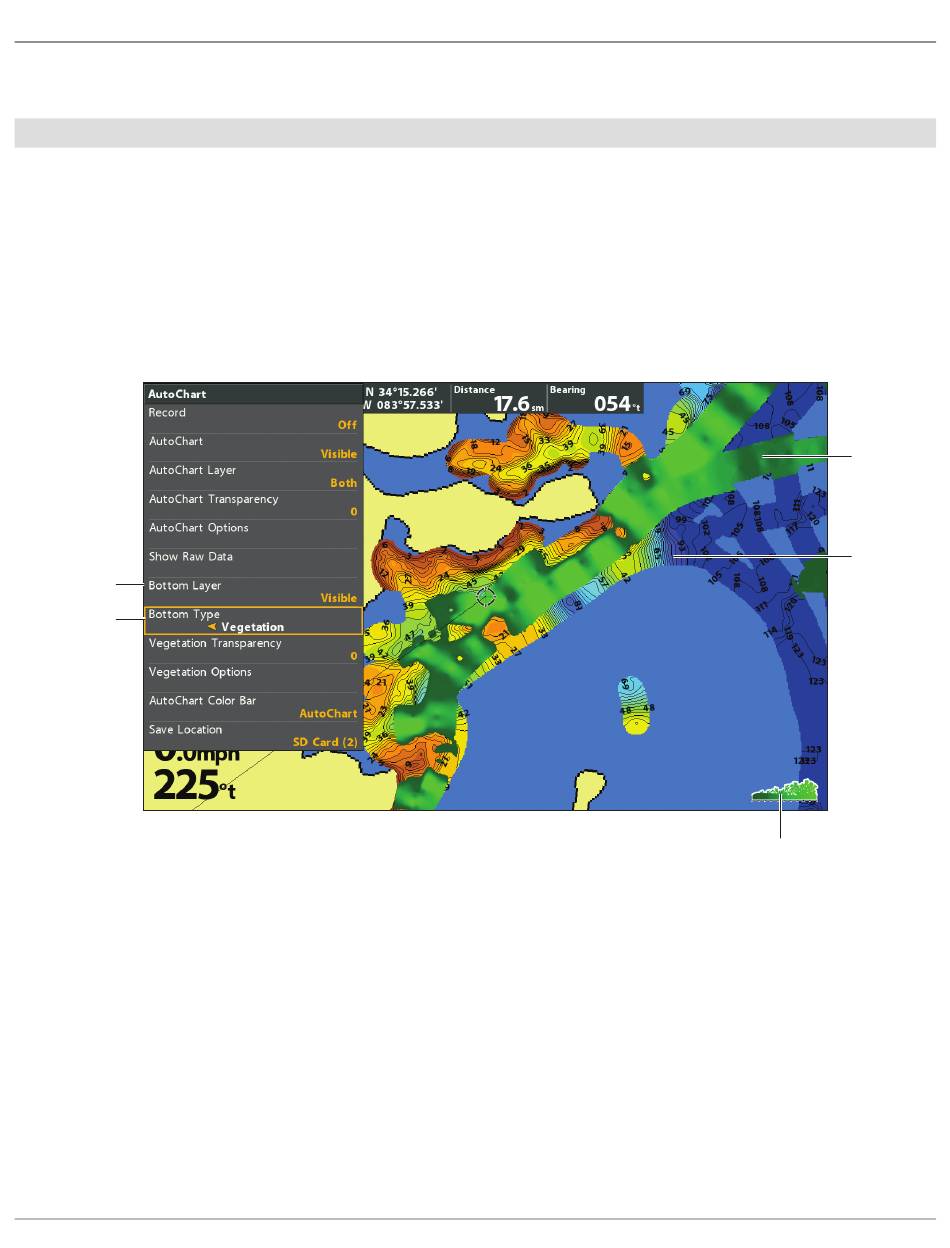

Displaying the Vegetation Layer (Map Source: Humminbird LakeMaster)
217
vegetation
layer
AutoChart
Live Map
layer
vegetation scale
(AutoChart Color Bar)
AutoChart Live
