Display a Down Imaging View On-Screen

There are a variety of views available to display Down Imaging data. You can also customize the view by showing or hiding information
(see Customize the Down Imaging View), and you can adjust the sonar settings to refine the information displayed on-screen (see
Adjust Settings While you Fish). The changes you make are applied to all Down Imaging views.
Display a Down Imaging View
1. Press and hold the VIEW key.
2. Select Sonar > Down Imaging View.

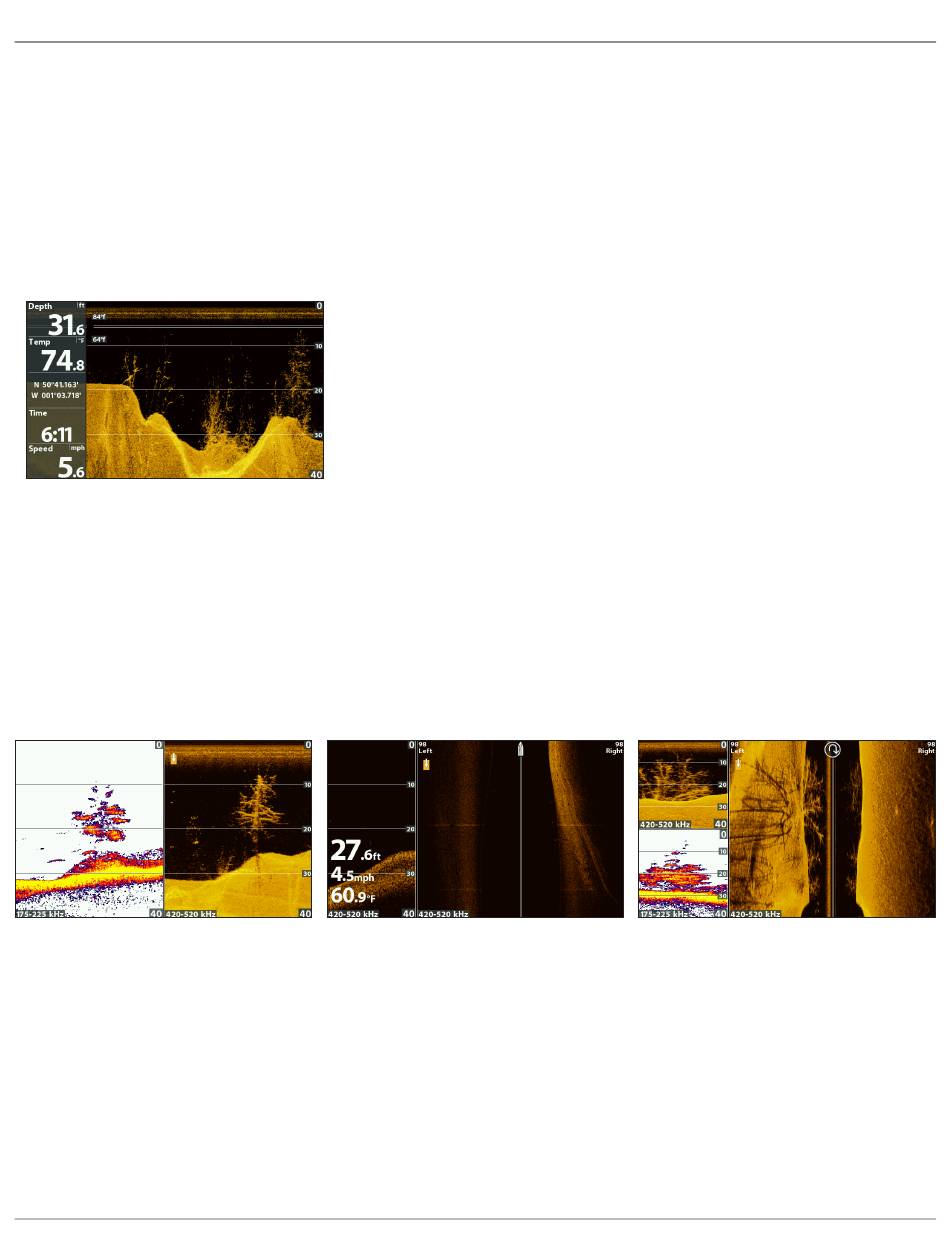

Down Imaging View
Display a Down Imaging Combo View
1. Press and hold the VIEW key.
2. To open a Down Imaging Combo View, select Sonar.
To open a Chart Combo View (Down Imaging and Chart together), select Chart.
3. Select a view to display on-screen. Press the RIGHT Cursor key.
Sonar > Down/Sonar Combo View
For more information, see
the Sonar section.
Down Imaging Sonar
Sonar > Down/Side Combo View
For more information, see
the Side Imaging section.
76
(Down Imaging and Side Imaging models only)
Sonar > Down/Side/Sonar Combo View
For more information, see
the Sonar and Side Imaging sections.
