INSTALLATION DIAGRAMS
Console & Bow Mount Humminbird Units

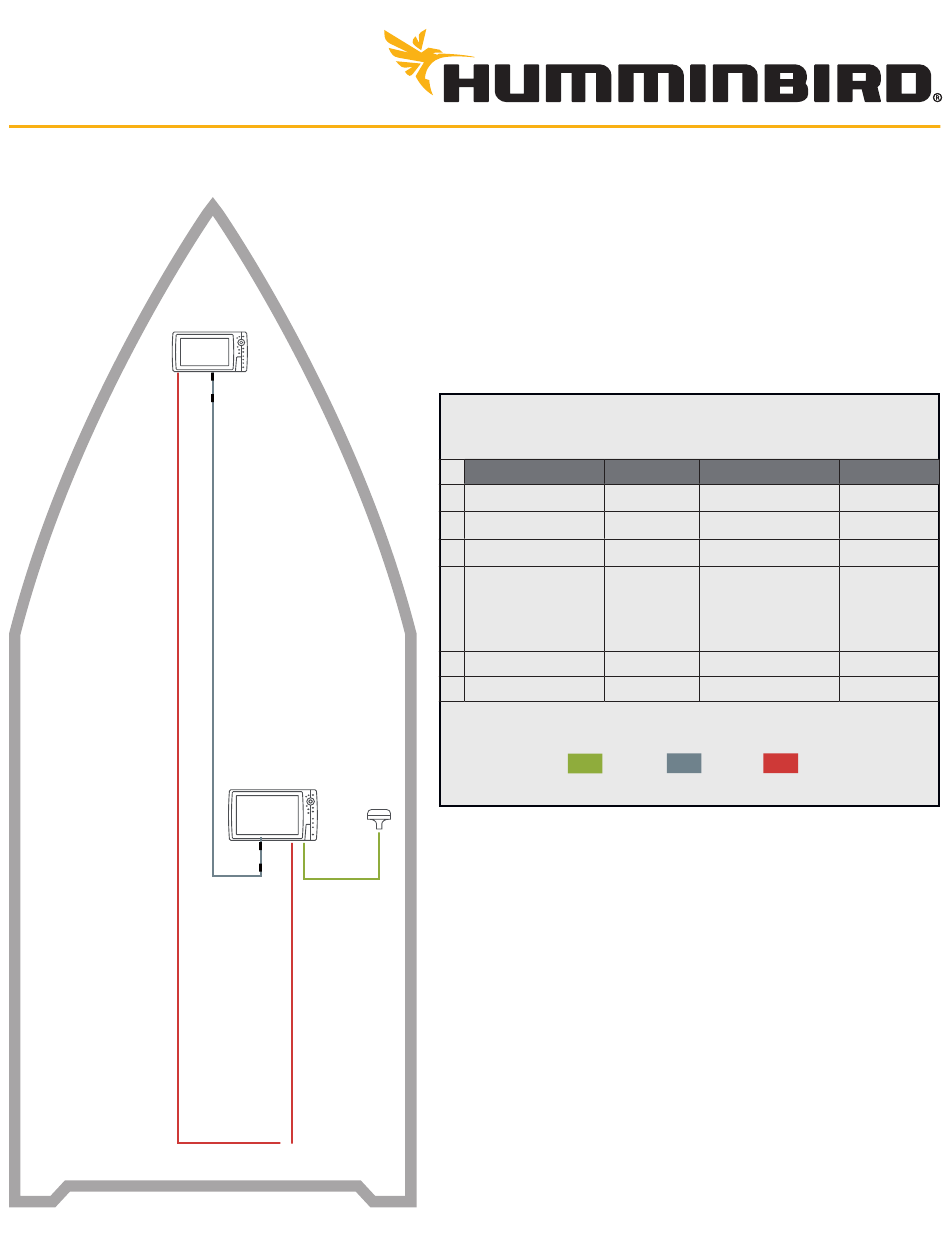

The following schematic outlines the necessary
accessories/cables needed to connect two
Humminbird units. Installation is shown with an
optional heading sensor.
Compatible Accessories

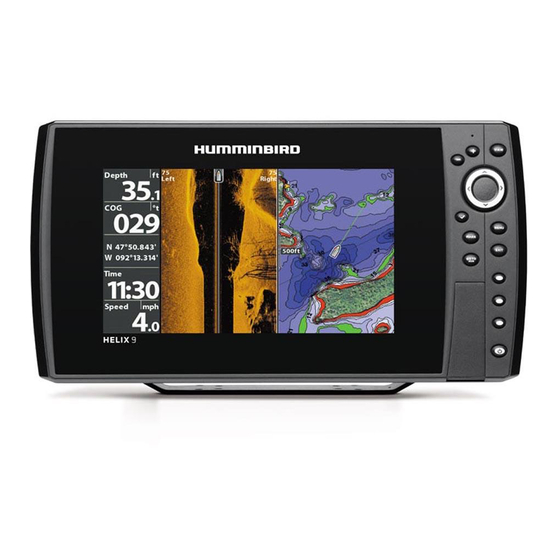

HELIX Series
1
Ethernet Adapter Cable
720074-1
AS EC QDE
2
Ethernet Cable
720073-6
AS EC 5E (5')
720073-2
AS EC 10E (10')
720073-5
AS EC 15E (15')
720073-3
AS EC 20E (20')
720073-4
AS EC 30E (30')
3
Heading Sensor
408400-1
AS GPS
RS422 Data
* The accessories and part numbers listed above are valid as of Oct. 2017. Installations shown
are for networking HELIX Series or SOLIX Series models, and Minn Kota trolling motors with
i-Pilot Link.
SOLIX Series
Ethernet Adapter Cable
NA
Ethernet Cable
720073-6
AS EC 5E (5')
720073-2
AS EC 10E (10')
720073-5
AS EC 15E (15')
720073-3
AS EC 20E (20')
720073-4
AS EC 30E (30')
Heading Sensor
408400-1
AS GPS
Ethernet
DC Power
