introduction
Humminbird® LakeMaster® VX map cards are compatible with HELIX® G3,
G3N and G4N control heads with chartplotting capabilities and all APEX™
and SOLIX® control heads. To review the latest compatibility information
and to download a detailed LakeMaster Map Card user guide, visit our Web
site at humminbird.com.
This quick start guide and the LakeMaster user guide contain instructions
that apply to your Humminbird control head(s) as follows:
• APEX Series
• SOLIX Series
• HELIX Series
Humminbird LakeMaster Map Cards

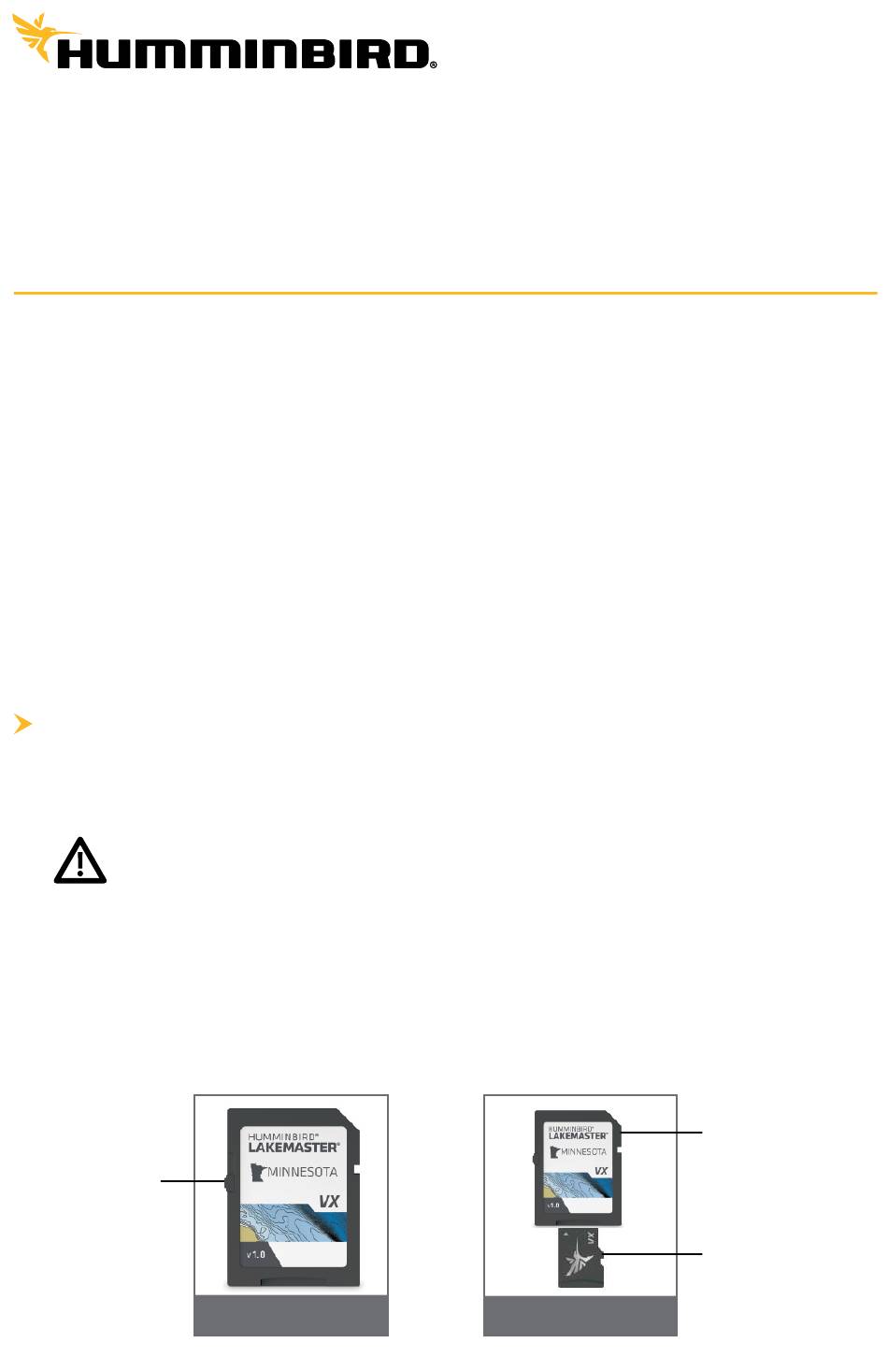

Your control head is compatible with either an SD card or a microSD
card. It is important to note the following guidelines:
WARNING! Do NOT delete or change the contents of your map card.
Changing the card will permanently damage it.
• Confirm the map card is locked (see the illustrations below).
• Do not force the card into the slot. The card should click easily into place.
• Do not leave the card slot cover open. Close the slot cover to prevent
water damage to the unit.
switch in
locked
position
lakemaster
SD card
quick start guide
microSD card
1
®
532794-1EN_A
microSD card
adapter
microSD
card
