Navigation Overview

Your Humminbird control head allows you to mark waypoints, create a route, and start navigating. Waypoints, routes, and tracks
can be managed on-screen so you can save your favorites, edit names, and easily return to your favorite destinations.
There are many ways to start navigation or edit navigation data with your Humminbird control head. The instructions in this section
review navigation features on the chart views. To use navigation features from the Waypoint Management dialog box, see Manage
your Navigation Data.

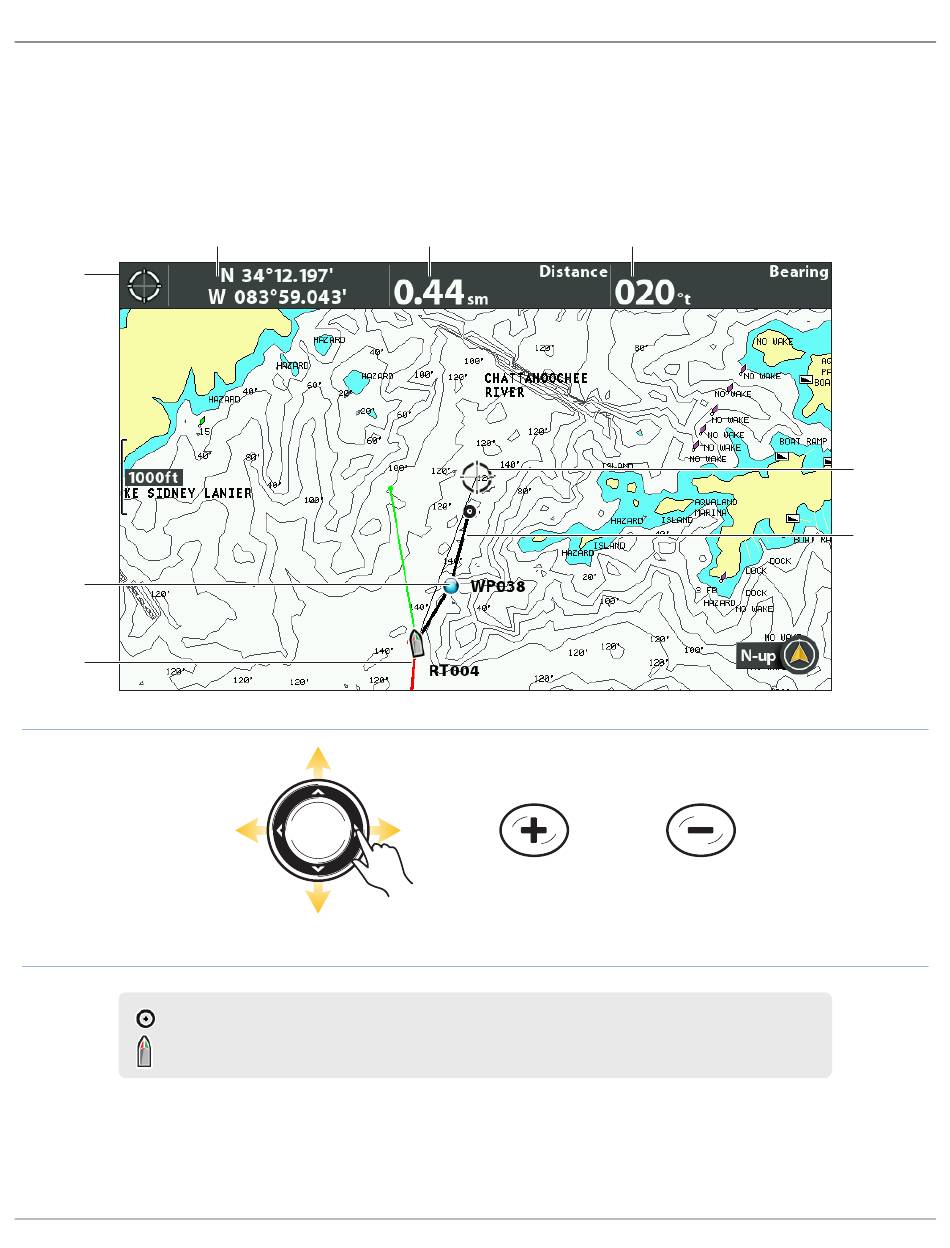

cursor position
cursor
digital
readouts
waypoint
current
track
When the boat is stationary, it is drawn as a circle.
When the boat is in motion, it changes to a boat shape, pointed in the direction of motion.
Navigation Overview
Moving the Cursor and Zooming in Chart View
distance to cursor position
Move the Cursor
bearing to cursor position
ZOOM In
152
ZOOM Out
cursor
saved route
